Microwave barierre, set with transmitter and receiver
Power supplied from 12 - 24VDC
Relay output NC (normal closed)

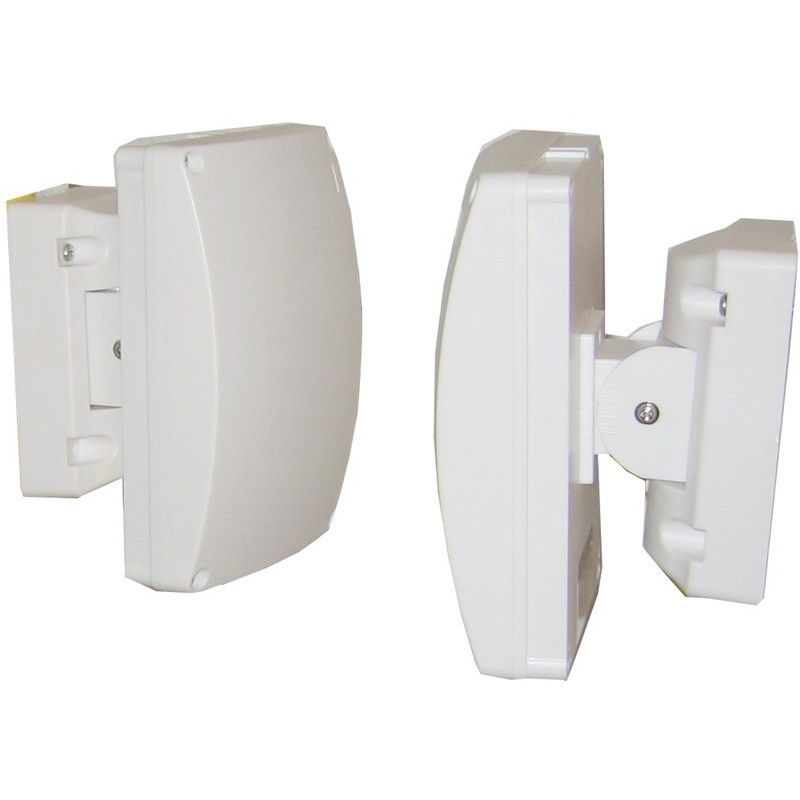

Mw-beam 100 is a microwave-based barrier sensor for outdoor use.

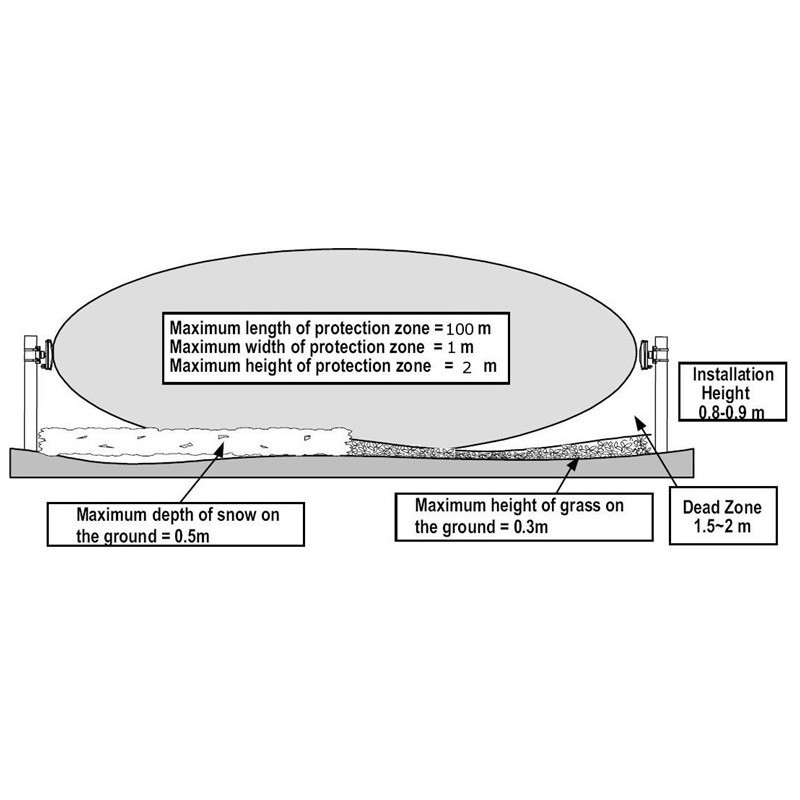

The package consists of a transmitter and a receiver when it is mounted facing each other, create a monitored area from 20 up to 100 meters long, 2 meters high and one meter wide. All that comes in between the transmitter and the receiver will activate the relay, for example. Can be connected to the input of an alarm system or camera that starts recording. With regard to the snow, grass and small animals in the beam are not registered.
for accurate calibration of direction of distance of 25 meters, it may be necessary to the Brugemw-beam100t that measures and displays the signal strength, so adjustment will be easy .
Microwave Rate: 10,525 GHz.
The modulation frequency: 1.0 kHz.
Length of protected zone: My 20 meters. Max. 100 meters.
Width of the protected zone: 1 meter.
The height of the protected zone: 2 meters.
Resistance: IP55.
Alarm period: 3 SEK ..
Release contacts: .. NC , normal closed max 28 VDC, max. 0.1 a.
Elektronisk kalibreringsværktøj til MW-BEAM100
Monteringsboks til mikrobølgebarriere
Monteringsboks til mikrobølgebarriere
Elektronisk kalibreringsværktøj til MW-BEAM100

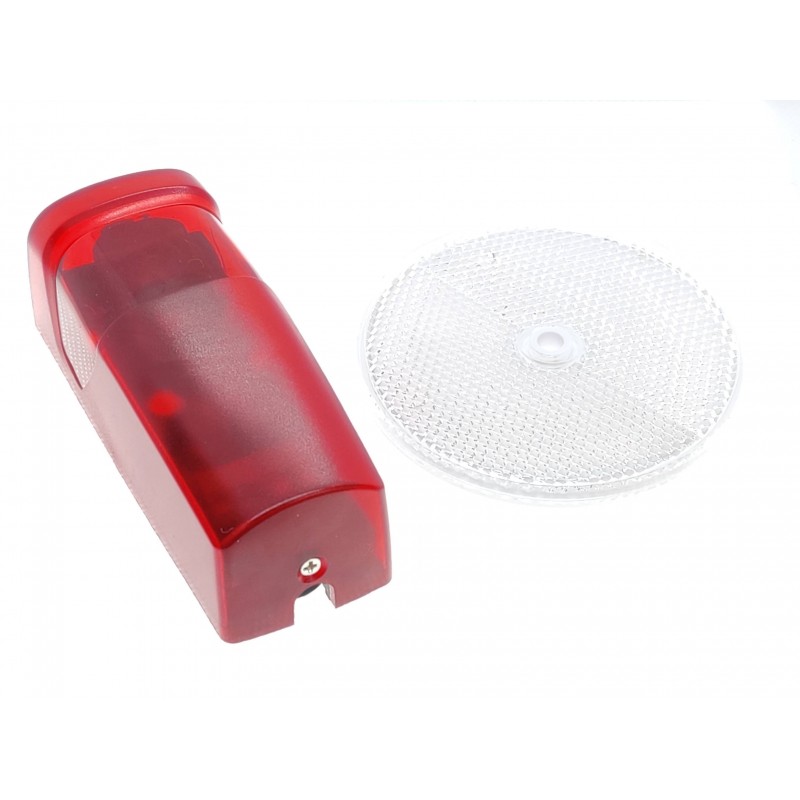

Infrared light barrier
Up to 7 meters between the IR emitter and reflector
transmitter is powered. Passive round reflective piece
Power supply: 12-24 V DC / AC (not included)
Relay: max 36V 1A
Terminal: DC input Relay output: COM, NO (normally open contact)
Temperature: -20 ~ +60°C
Dimensions: 40 x 35 x 100 mm (W x D x H)

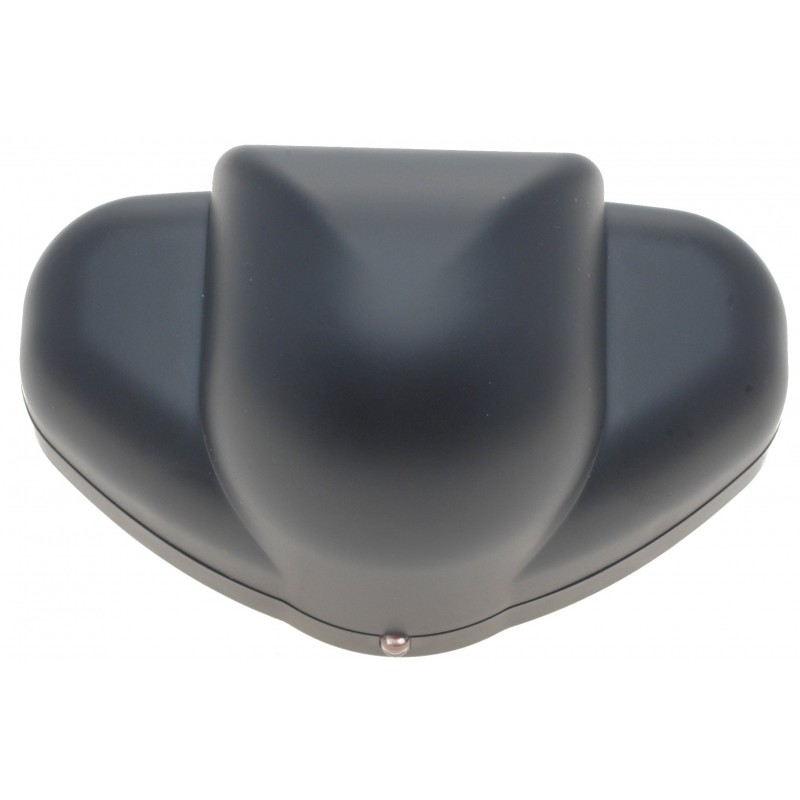

Bevægelsessensor med mikrobølge. Til brug i forbindelse med automatiske døre
