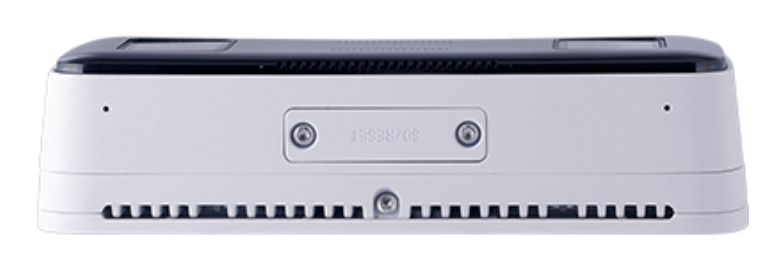

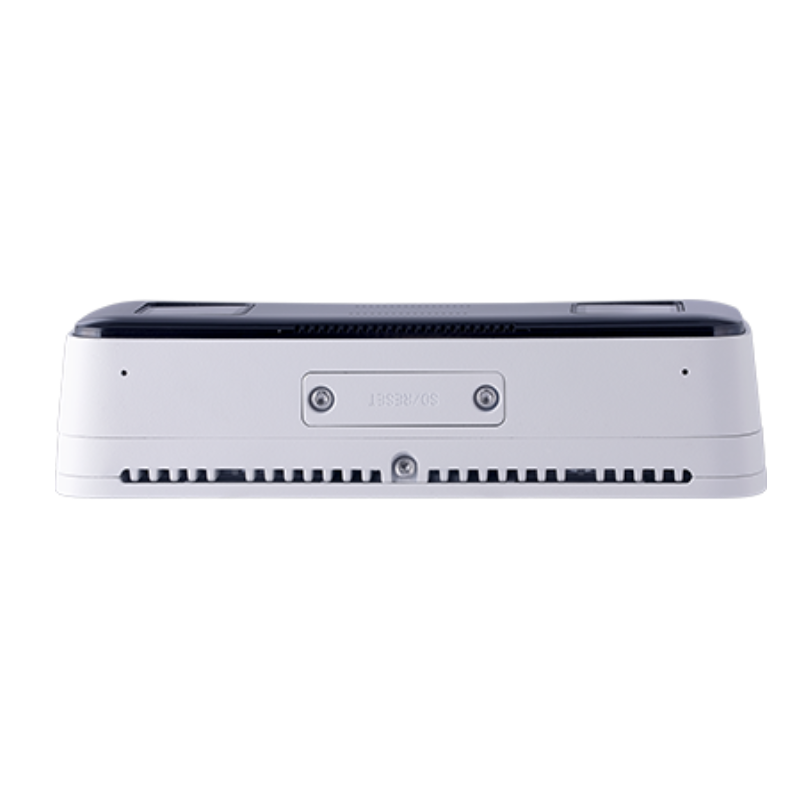

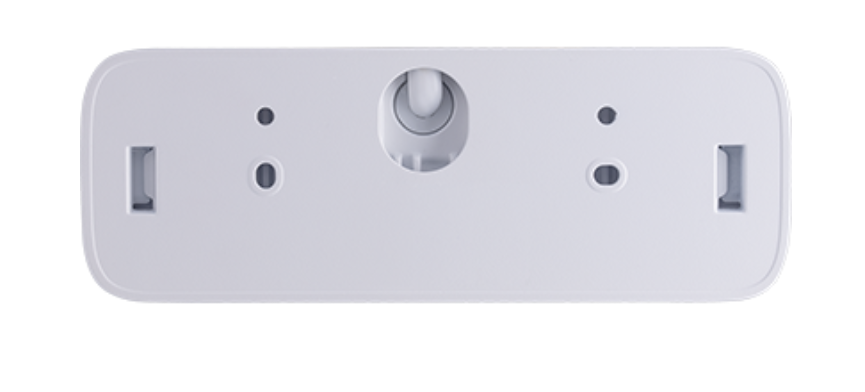

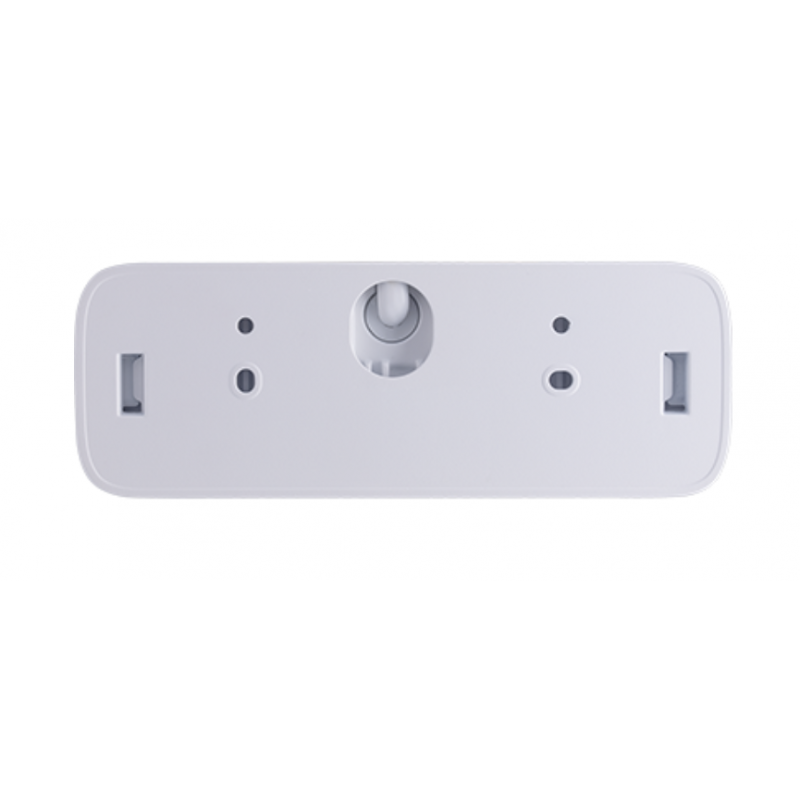

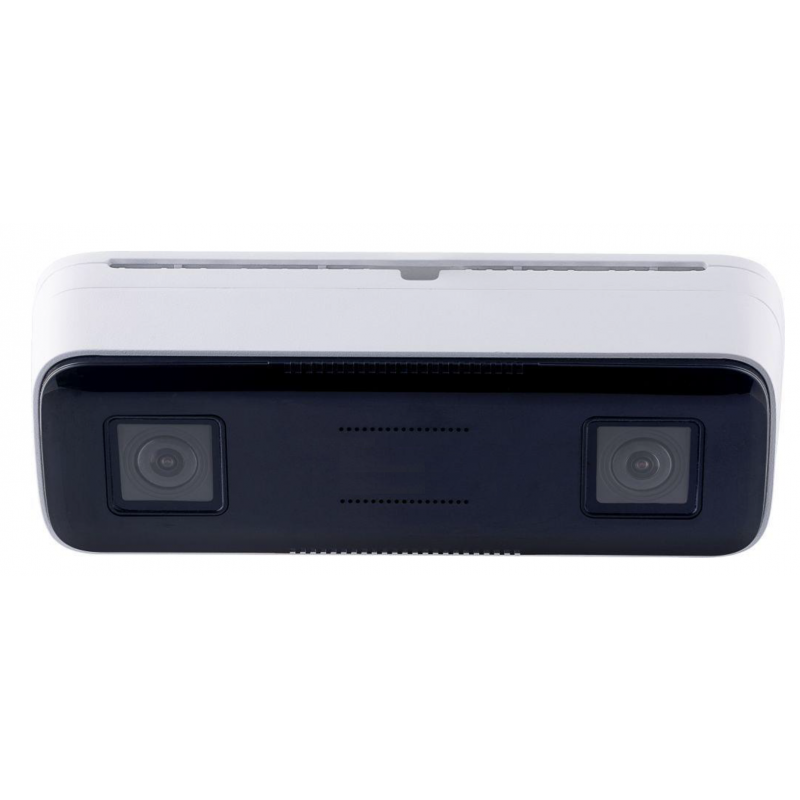

Dual-Lens 4MP People Counting Camera with POE and Digital I/O

Bi-directional people counting

Accuracy Up to 95%

Target height filtering

Recommended installation height is 2 to 6 meters

Alarm trigger for crowd density counting or reverse entry detection

Real-time, daily, weekly, monthly or annual counting reports and graphs

1x Input, dry contact, NO/ NC / 1x Replay Output (30V DC, 1A)

PoE (IEEE 802.3af)

Micro SD card slot (SD/SDHC/SDXC/UHS‐I, Class 10) for local storage

Audio jack for microphone and speaker

IP66

12 languages on Web interface

ONVIF (Profile G, S, T) conformant

$856.44
Excl. VAT
Quantity
Physically in stock
Product number ADGANG-COUNTV3
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Certifications CE, FCC compliant

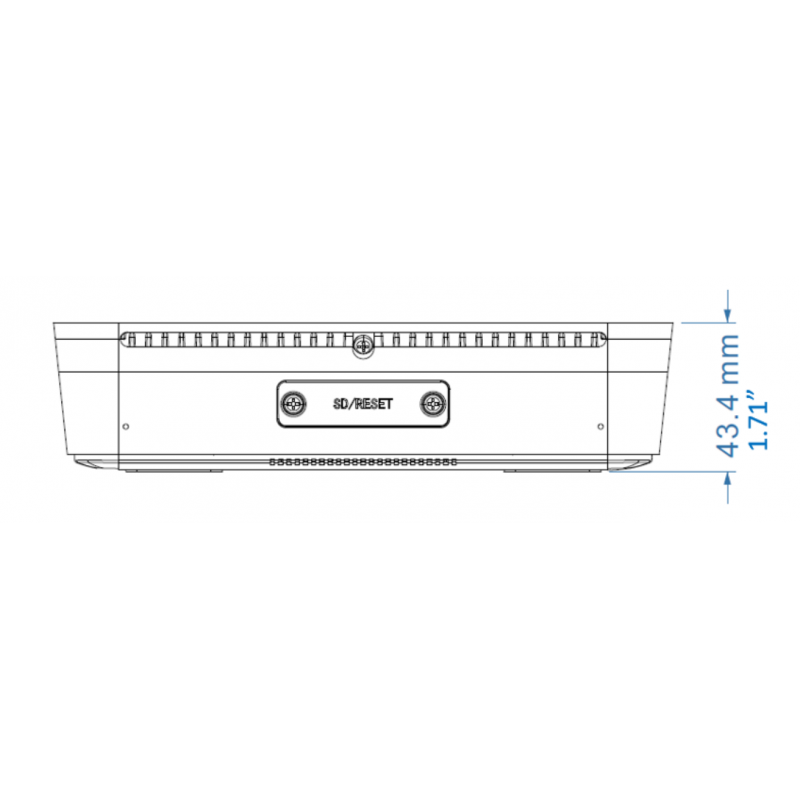

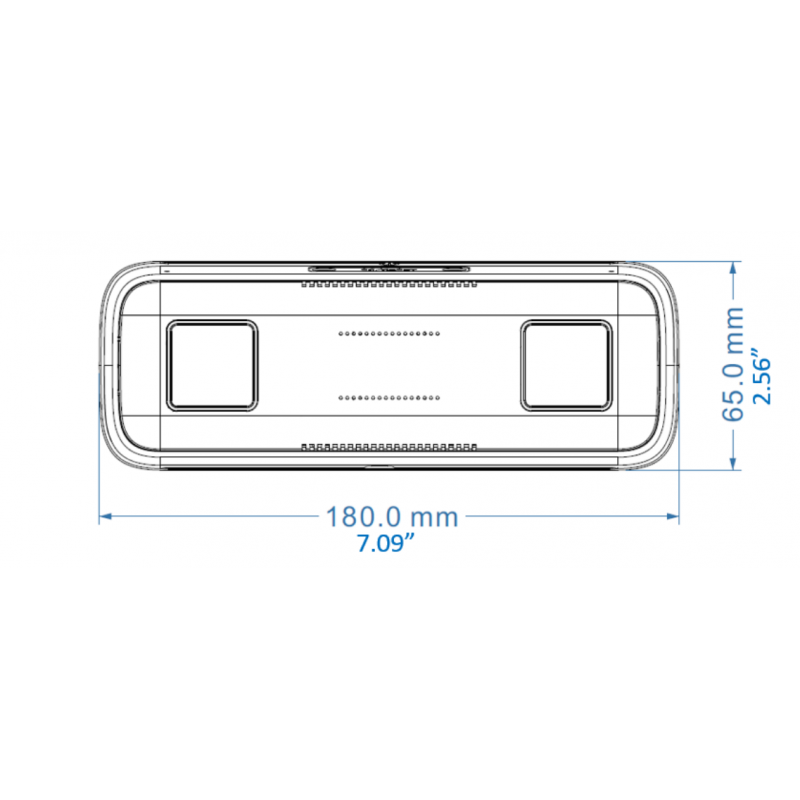

Dimensioner 180 x 65 x 43.4 mm (7.08 x 2.56 x 1.71 in)
Driftstemperatur -30 °C ~ 45 °C (-22 °F ~ 113 °F)
Forsyning 12V DC / PoE (IEEE802.3af)
IP-Tæthed IP66
LED 4 IR LEDs / 10 m (35 ft) max
Montering 2 ~6 m (6.56 ~ 19.69 ft) sealing mounting
Mål og vægt 563 g (1.24 lb)
Opløsning 2560 (H) x 1440 (V)
Sensor 1/3” Progressive Scan CMOS
