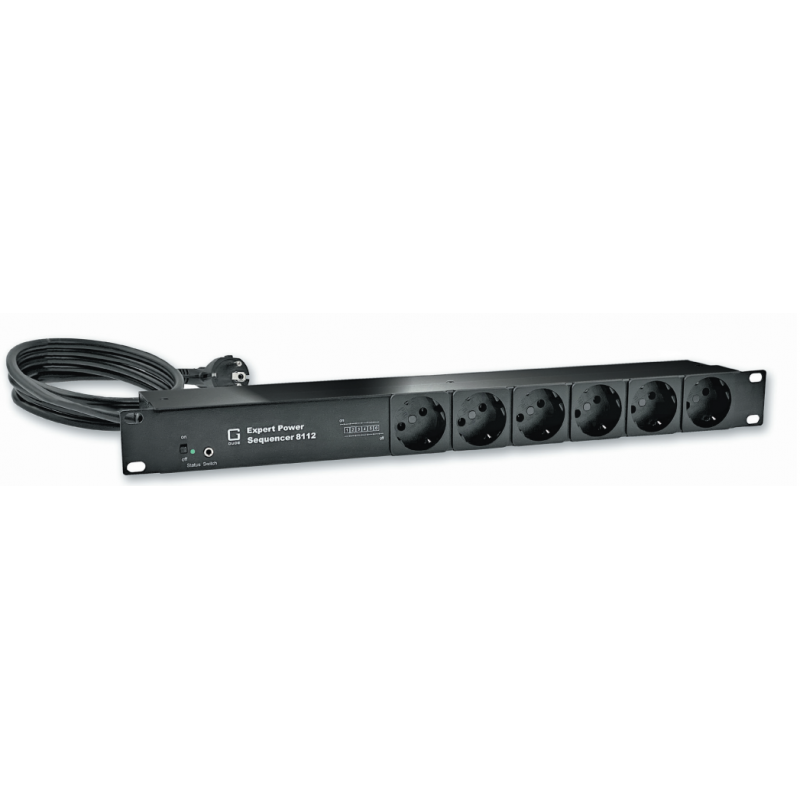

6 port PDU with sequential ON/OFF with 3 sec. delay. CEE 7/7. 230VAC Max. 16A. OVP, filter 1U rack.
Power rail with anti inrush timer
3 seconds between voltage connection of each outlet
3 seconds between disconnection of each outlet
ON/OFF switch on the front
Purchase of JACK terminal for wired remote control
6 pieces. CE 7/7 schuko plug with ground
Overvoltage protection
Mains input filter
Max. 16A with 230VAC
2 meter mains cable
1U rack format
Dimensions: 440 x 62 x 44 mm
2,778.00 kr
Excl. VAT
Quantity
On the way in
close

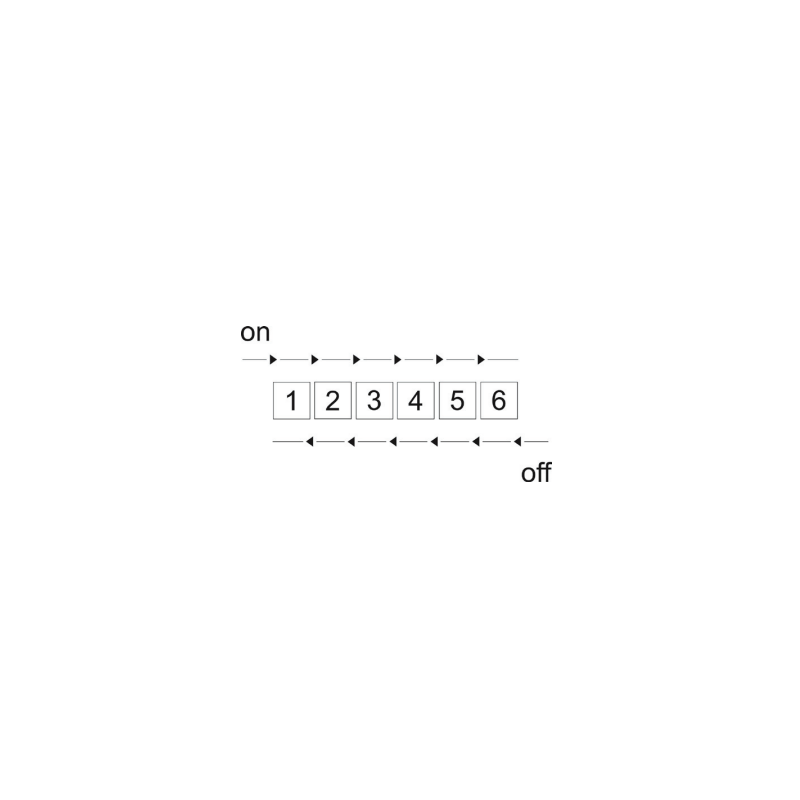

Connected devices can be switched on and off sequentially with an automatic switching routine. Operating the switch on the front panel triggers a 15 second switching sequence, which switches the individual effect ports one after the other with a 3 second delay. This delay interval between the switching processes can be set individually.
This avoids the typical voltage peaks caused by high inrush currents when several loads are switched on simultaneously.
Even more important: A possible tripping of the upstream fuse in the supply line is effectively prevented. In addition, sequential switching avoids that sudden changes in current in the supply line lead to disturbances in the circuit.
An application example can be found in AV installations including an amplifier which can trigger powerful DC current to the speakers: LED panels and other switch mode high power devices.
