12V / 1.25A, 15W power supply, 100-240VAC, DIN rail, -30 - + 70 ° C
12 Volt 15 W power supply
DIN rail mounting
Screw terminals
Fine tuning output voltage
Operating temp: -30 - + 70 ° C
To prevent loss of data during power failure

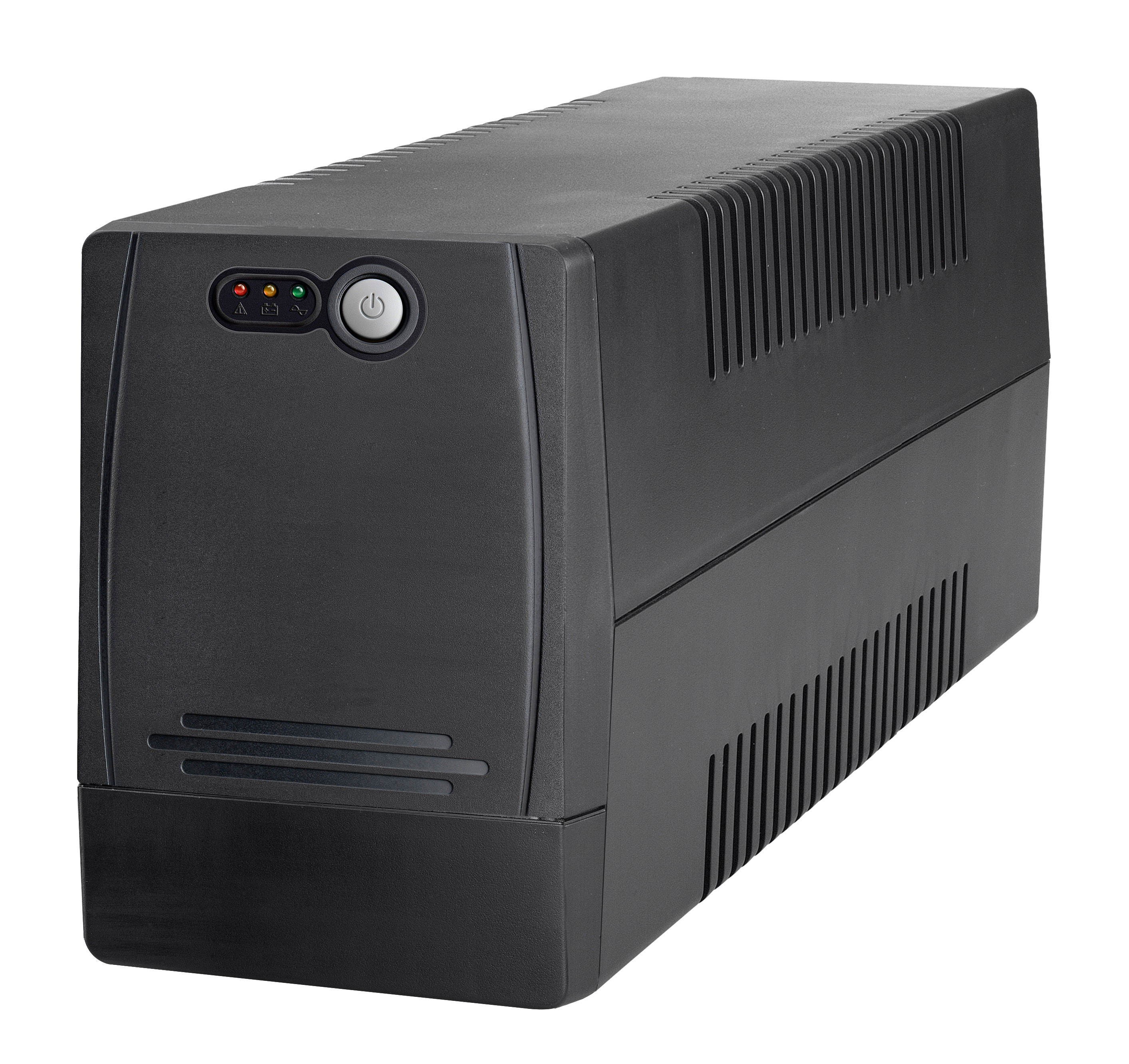

Compact Tower UPS 1500VA / 900Watt
Output voltage: 230VAC / 50Hz
Line-interactive means switching at power failure (2-6ms)
Backup time: 50% load for about 6 minutes
Noise level: Less than 40 dbA at 1 meter
Modified sine wave (staircase curve)
4-6 hour recharge time to 90% capacity
Auto restart on mains supply restored
Supports automatic shutdown via software
Battery: 2 pcs. 12V / 9Ah - see manual for life time
Dimensions: 320 x 182 x 130 mm
Weight with battery: 10.6 kg
Operating temperature: 0 - + 40 ° C
To prevent loss of data during power failure. Alarm low battery and over-voltage, etc.
UPS1500 is a Tower UPS to protect your equipment against crashes and data loss in case of power failure. UPS provides power for several minutes, depending on power consumption:
It provides comprehensive protection in a small and economical package. Not only provides more comprehensive power protection against surges and noise on netlinjen filtered and give it a clean voltage by means of the built-in stabilizer AVR (automatic voltage stabilizer). UPS continues for clean and stable power to connected equipment while it is embedded microprocessor controller guarantees high reliability, perfect for any application for home or small office.
not connect the printer or scanner to the UPS as they can be destroyed by modified sine wave voltage.
Estimated backup time by following load in%:
25% for up to 18 minutes
50% for up to 6.5 minutes
75% for up to 3.5 minutes
Rev: LO
12 Volt 15 W power supply
DIN rail mounting
Screw terminals
Fine tuning output voltage
Operating temp: -30 - + 70 ° C
SATA
P4 plug connector Xeon
PCI-Express
Supply Voltage 100-240 VAC
H x W x D: 150 x 86 x 170 mm
Universal DC power supply for notebook - 65Watt
100 - 240VAC for 19VDC / 3.42A
1.5 meter cable with 5.5 / 2.5mm power jack
UL approved
C8 IEC AC input plug
Operating temperature: 0-40 ° C
PSU for ESW4POE-U 4-port PoE switch
