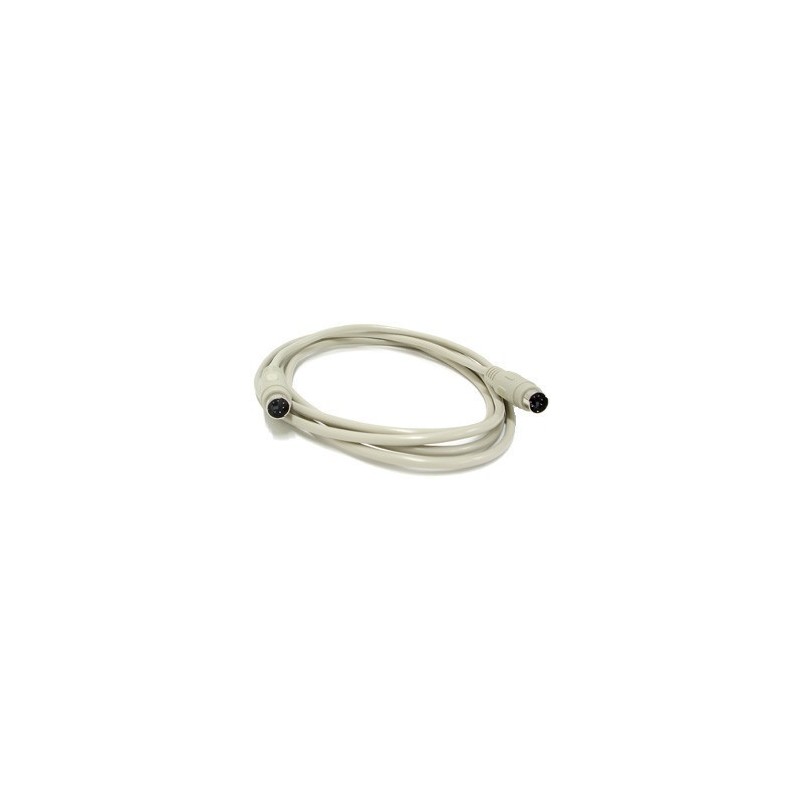

PS2 cable MINI DIN6 male-male connector
2-layer shielded - all leads through
Gray
For PS/2 keyboards and PS/2 mice equipped with 6-pin mini DIN connector. The cables are 2-layer shielded with all conductors routed through.
PS2 cable MINI DIN6 male-male connector
2-layer shielded - all leads through
Gray
The mouse converter only converts the plug type of the mouse and not the signal.
So you cannot convert a serial mouse to PS/2 and the like.
Converter is with thumb screws.
CONNECTIONS (DB9-DIN6M): 1-1, 5-3, 6-5, 7-4
PS2 extension cable MINI DIN6 male-female connector
2-layer shielded - all conductors passed through
Grey
The mouse converter only converts the plug type of the mouse and not the signal.
You cannot therefore convert an RS232 serial mouse to PS/2 and the like.
Converter is with thumb screws.
PS/2 DB9F
1 3
2 N/A
3 7
4 5
5 2
6 N/A
