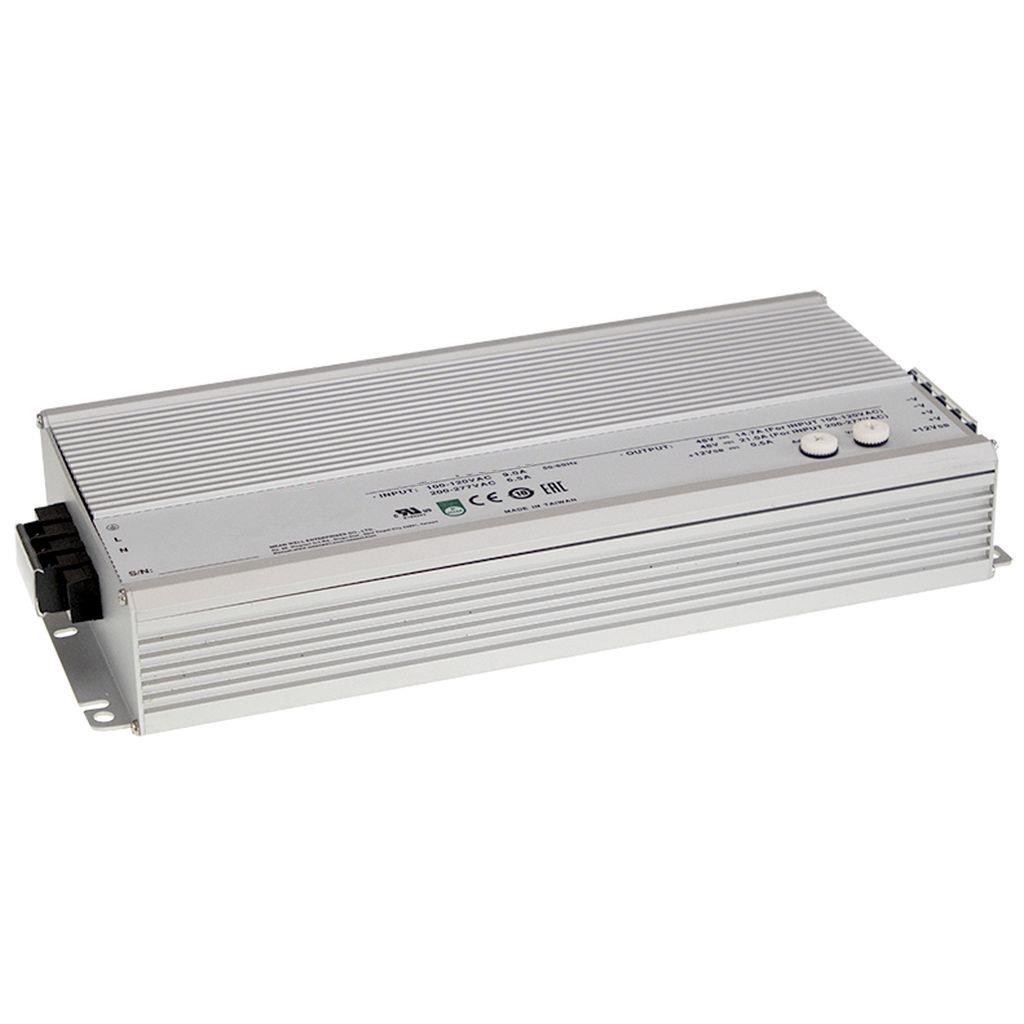

24VDC 48A (1000W) AC-DC Single Output Industrial Power Supply
Output 24VDC at 42A (1000W)
Input 90VAC - 305VAC
Input-output by terminal block
Remote ON/OFF and DC OK signal
Dimensions 140x41x290mm
Call +45 56 66 20 20 for price
Quantity
Physically in stock
Product number DC24V42A
Specifications
Certifications | UL/EN62368-1, EN55032/55024 |
---|---|
Dimensioner | 310 x 144 x 48.5mm |
Driftstemperatur | - 40C to + 70C |
Effekt | 95 % |
Indgang | 90 VAC to 305 VAC |
Type | Switching Power Supplies |
Udgange | 24VDC 48A (1000W) |
Weight | 4kg |
DC24V42A Switching Power supplies are 1000W Industrial AC / DC power supplies designed to work under very humid, oily, dusty and highly vibration hair environments. These power supplies contain built-in three-step programmable charging curves on the constant power, constant voltage and liquid charge capacity. DC24V42A Power supplies offer high efficiency up to 96%, 10G anti-vibration capacity and built-in active PFC function. These power supplies consist of an integrated charger and are equipped with the PMBus communication protocol that enables seamless integration into different high-end systems. The DC24V42A power supplies provide an output voltage line of 24V, 48V and 100V and operate from -40ºC to 70ºC temperature range during air conversion without a fan. These power supplies comply with international safety regulations such as TUV EN62368-1 UL62368-1. Typical applications include industrial automation machines, industrial control system, electronic instruments and household appliances.
Andre produkter i samme kategori:

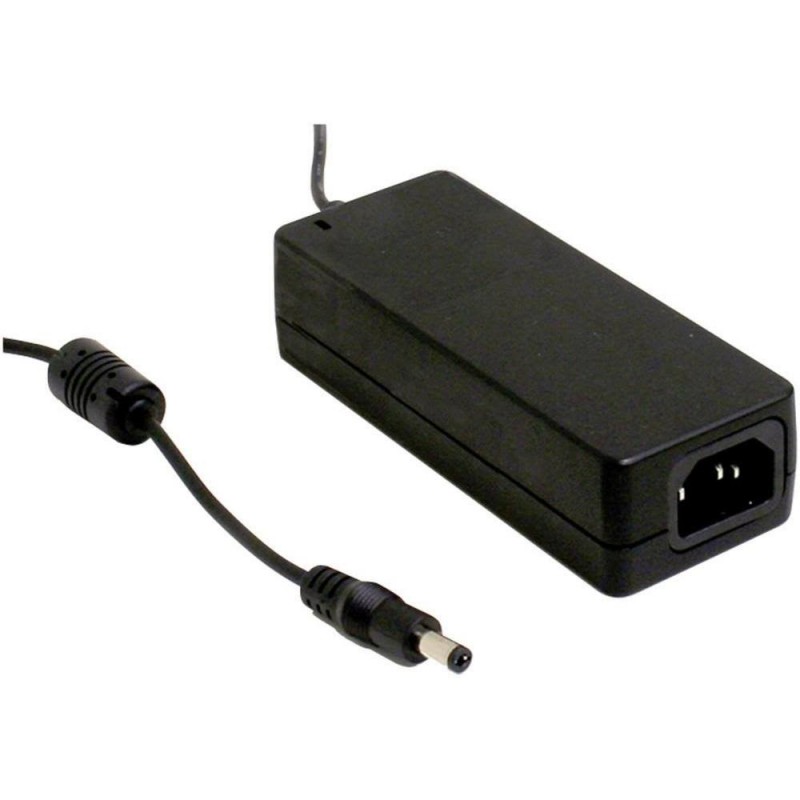

12VDC 5A (60Watt) MEDICALLY APPROVED desktop adapter from 80 - 264VAC, C14 connector. Medical standard EN 60601-1, 60601-1-11
Medico approved network adapter according to Medical Directive
12 Volt power supply 5Amp (60W)
Desktop Power Supply EU
Input: AC 80-264 VAC, 113-370VDC with 3-pole C14 plug
Output: DC 12V, 5A DC
1m cable
Medical safety approved (2 x MOPP)
Approvals: ANSI / AAMI ES60601-1, TUV EN 60601-1, 60601-1-11
Working temperature : -30-60 ° C
569.00 kr
Item Number: DC12V/5A-MED

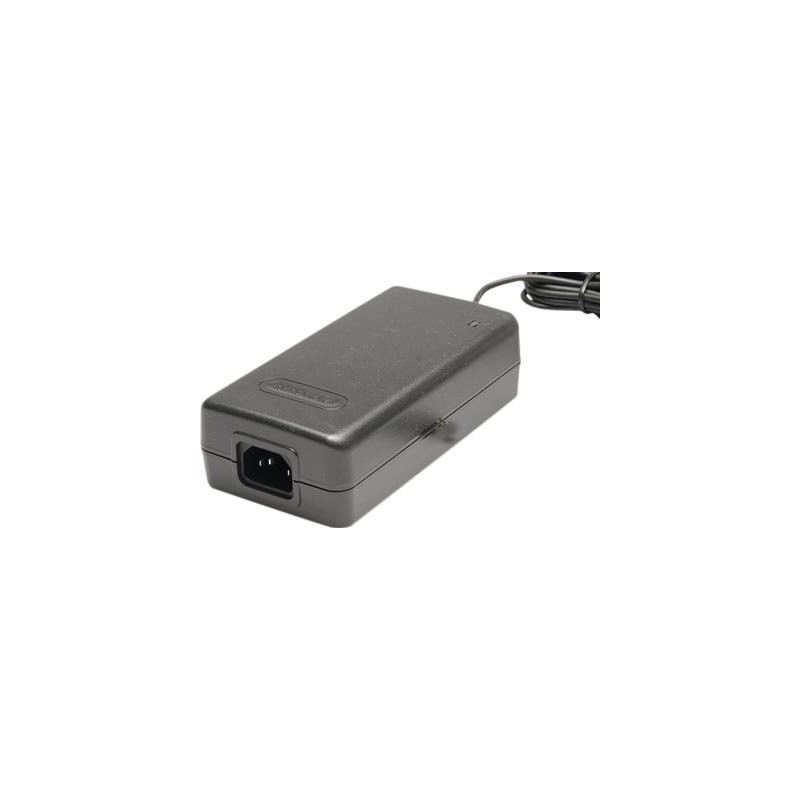

5VDC 7.5A (37Watt) MEDICAL approved power supply with C-14 mains plug, EN 60601-1, IEC601-1. DC plug: 5-pin DIN connector
