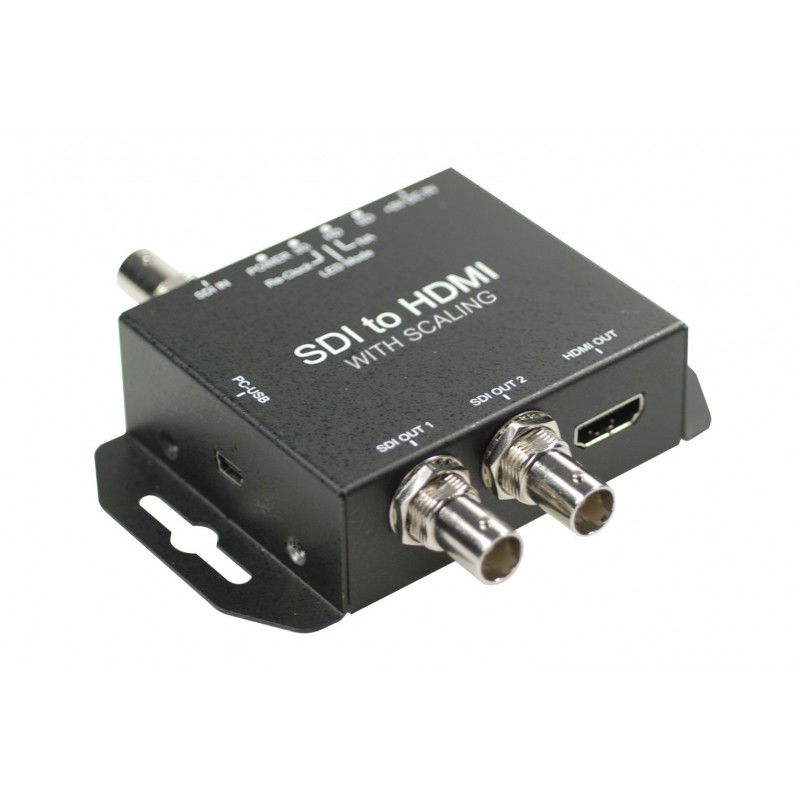

SDI til HDMI konverter. Tilslut et kamera med SDI på en HDMI skærm, overfører lyd

SDI til HDMI konverter, med lyd overførsel og skalering

CNV-SDI-HDMI-YS
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Opløsning: 525i til 1080i v/ 50/60Hz, 1080p v/ 24/25/30

SDI standarder:

3G-SDI (SMPTE 424M/425M)

HD-SDI (SMPTE 292M)

SD-SDI (SMPTE 259)

Funktioner: Splitter, skalering, Mini-USB til FW

Indgange: 1 x 75Ω BNC stik

Udgange: 2 x 75Ω BNC stik, 1 x HDMI (type A) hunstik

Audioformat: Op til 2 kanaler, 24bit, 48KHz

Strømforsyning: 230VAC medfølger

Impedans: 75 Ω

Forsyning
230VAC medfølger
Indgang
1 x 75Ω BNC stik
Opløsning
525i til 1080i v/ 50/60Hz, 1080p v/ 24/25/30
Udgange
2 x 75Ω BNC stik, 1 x HDMI (type A) hunstik
