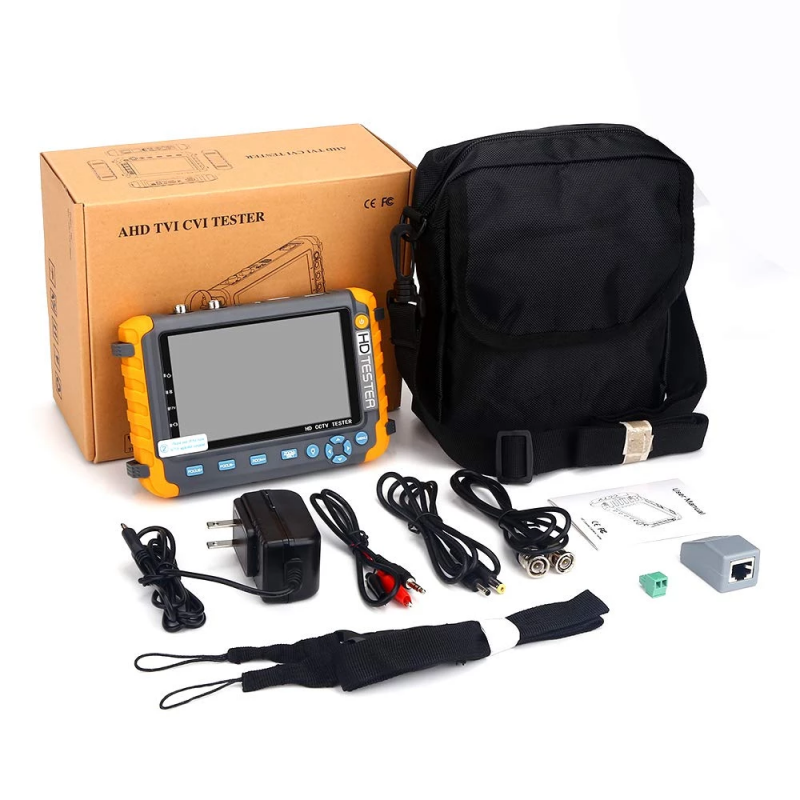

Professional 5" service monitor for Analog camera setup. Built-in battery. With BNC, HDMI, VGA, 12VDC out

Portable Service monitor
AHD / TVI / CVI / CVBS coax in and out, HDMI in, VGA in. PAL / NTSC
12VDC 1A output for camera
800 x 480 (5: 3) 5 "TFT color screen.
Supports Pan-Tilt-Zoom Pelco-D / P PTZ via RS485
Supply: 5VDC via Micro USB-B connector.
5200 mAh battery, up to 11 hours battery life
Suitable for camera installers
Some IP cameras have CCTV output (BNC)
Cannot be used for IP cameras without BNC

MON5-S
2,090.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Portable Service Monitor
5-inch LCD 800 x 480 (5: 3)
Some IP cameras are equipped with CCTV output (BNC)
cannot be used for IP cameras without BNC
Support PAL / NTSC standard video signal. CVBS Testing.
PTZ Controller Support Pelco-D / P PTZ Control Protocol etc., Through RS485 interface, the user can control PTZ up, down, left, right rotation and adjust a machine zoom, focus, aperture size.
AUDIO TESTING Test the audio input from Pickup devices. Connect the tester and the pickup unit with the audio cable.
UTP Network Cable Testing
Display UTP cable connection status, cable type and sequence of wires as well as read the number on the test box.
TVI Camera Test
HD TVI Video Surveillance Testing, when TVI Signal input, the tester will display HD TVI camera image.
CVI camera test
HD CVI Video Surveillance Testing, when the CVI Signal input, the tester will display the HD CVI Camera image.
AHD Camera Test
HD Video Surveillance Testing. When the AHD signal input, the tester will display the image of the AHD camera.
LED lamp
It is useful for the engineer to install and maintain the safety system at night. LED ON / OFF Press the button, easy to operate.

Batteri
2 x 3.7V / 2600mAh 18650 battery
Digitale indgange
HDMI
Dimensioner
174 x 114 x 36 mm
Forsyningsspænding
230 VAC netadapter 5VDC, 1A medfølger
Kabinet
Plastik
Maks. opløsning
1920 x 1440
Skærmopløsning
800 x 480 pixel
Skærmstørrelse
5"
Videosignal
PAL/NTSC autogenkendelse
