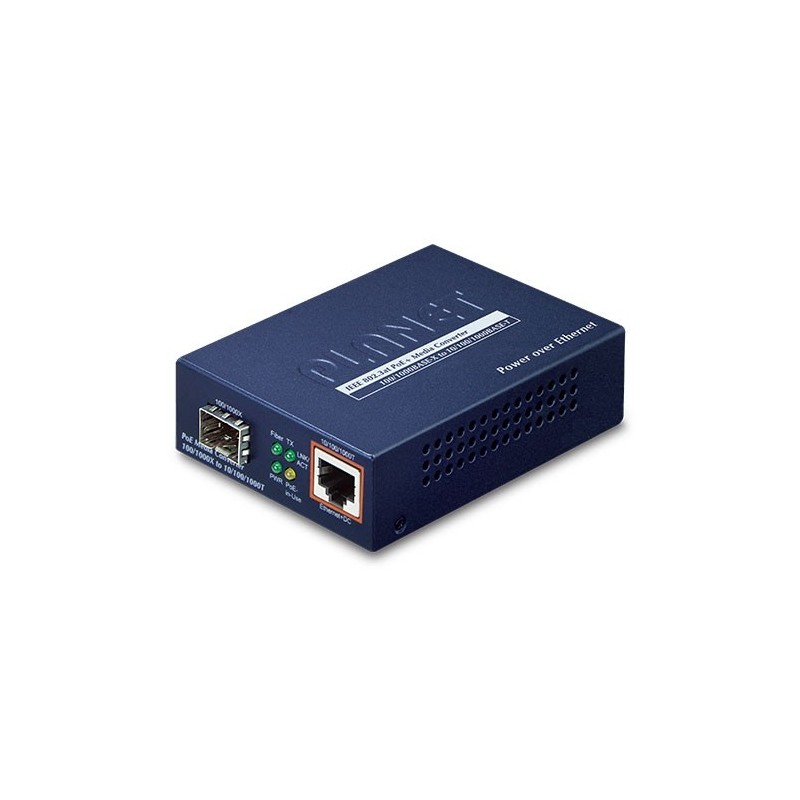

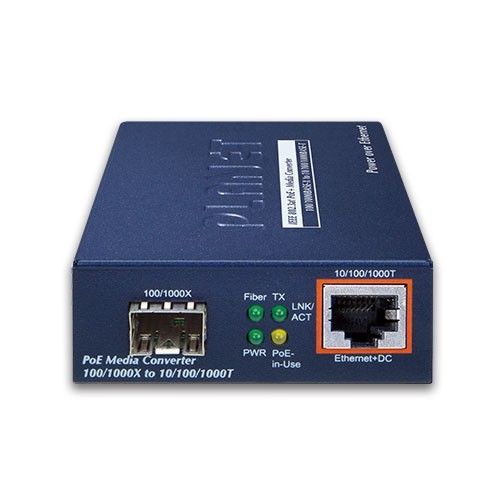

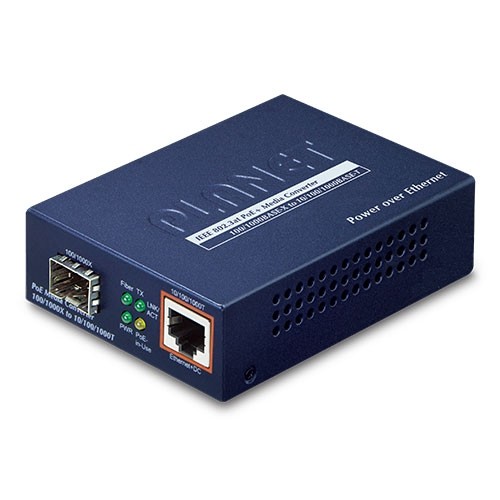

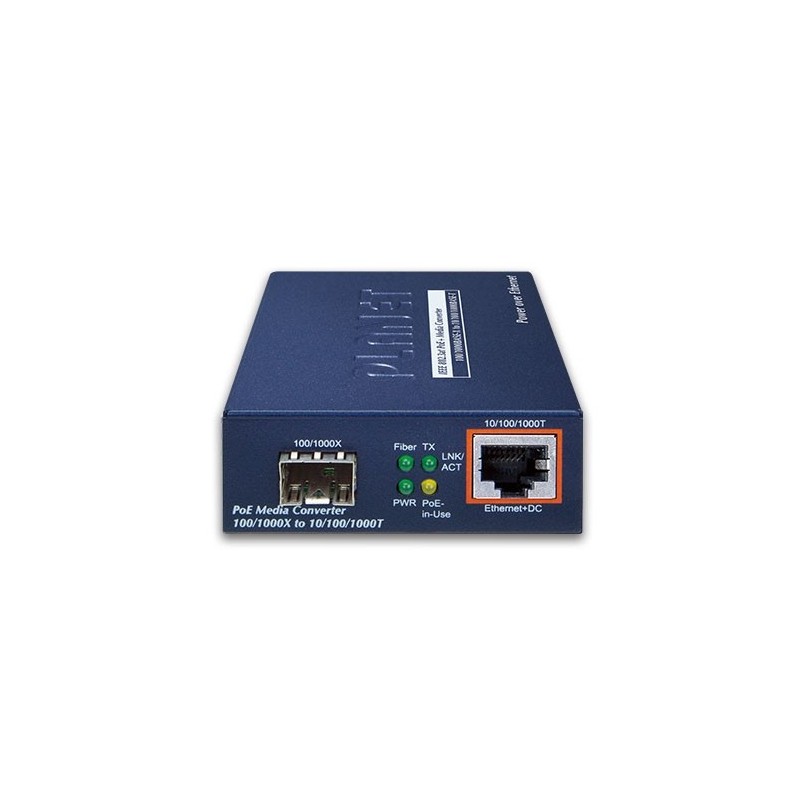

Media converter for 100/1000Base-X SFP module
Can be powered with PoE+
The SFP module is standard for LC connectors, duplex, Single Mode / Multi Mode.
Purchase 100Mbit / Gigabit SFP modules.
10/100/1000Base-TX

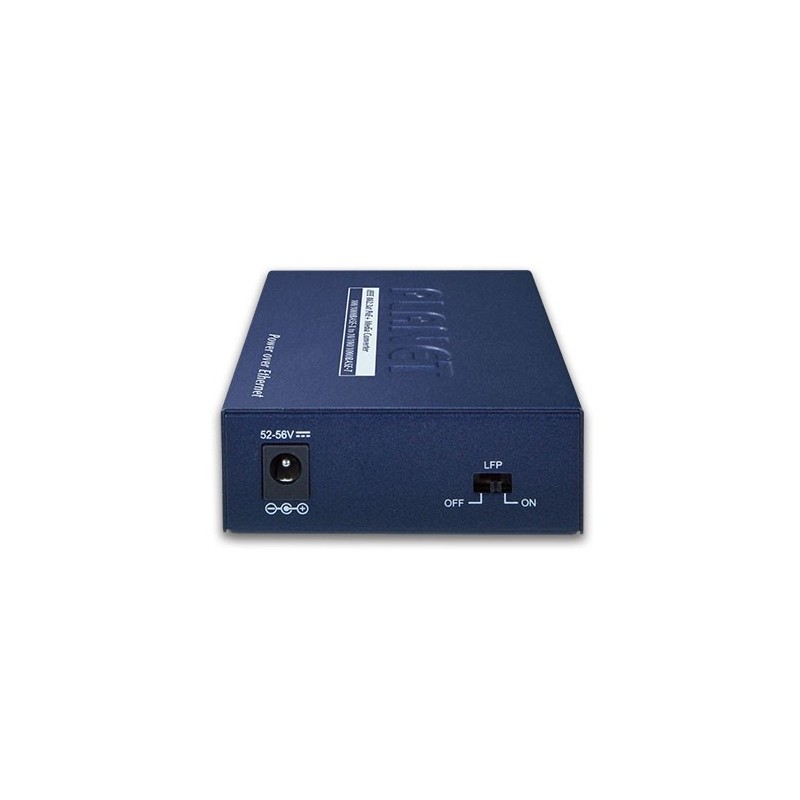

56VDC PSU included.
Mid-span PoE (PSE) (4.5/7.8)
PoE power is max. 30 Watt
Alarm in case of link failure
10/100/1000 Mbit Ethernet to 100Mbit / Gigabit fiber converter.
For SFP modules and with PoE+ (PSE) of 30 Watt.

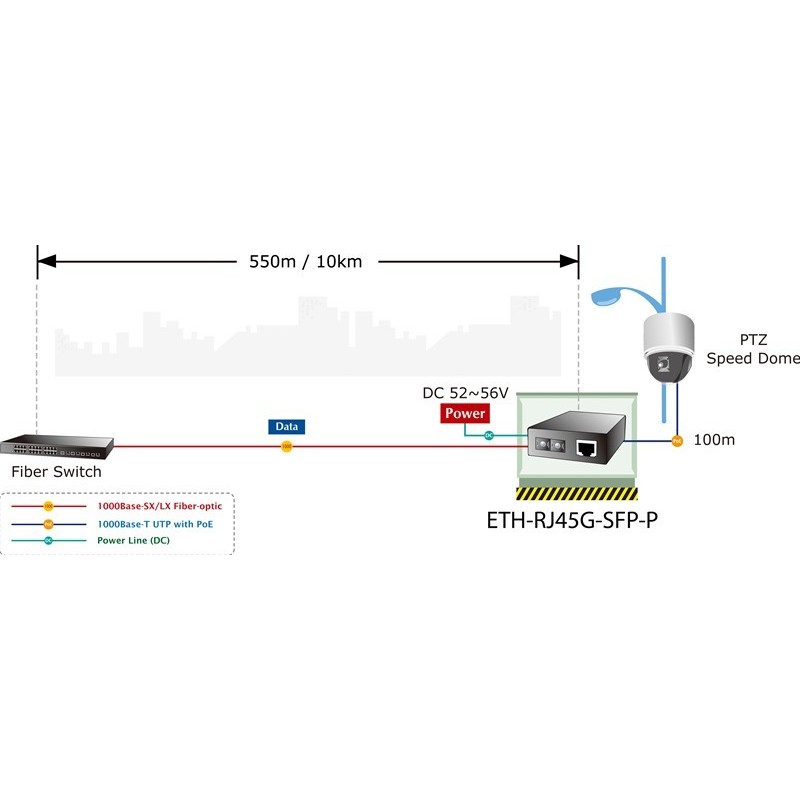

PoE converter designed to meet the increasing need for network equipment that requires higher power, e.g. network cameras with PTZ, moving dome cameras with PTZ, VoIP telephones with color touch screens, wireless LAN access points with multiple channels (IEEE 802.11a / b / g / n)
and other network devices that require higher power to function normally.

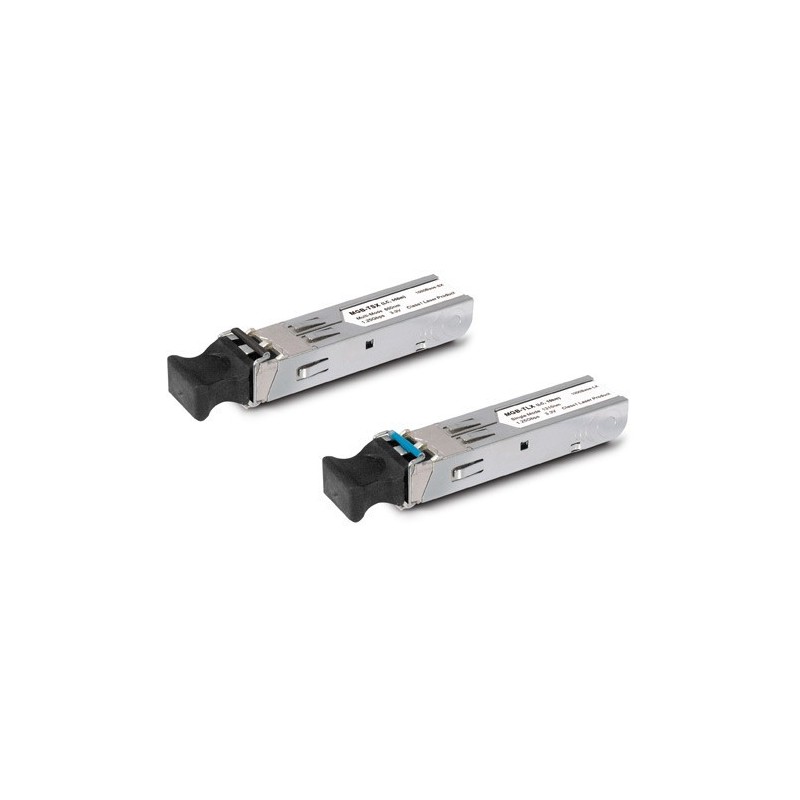

SFP - Optical Gigabit transceiver.
Mini GBIC Media Converter
LC, Singlemode, duplex fiber cable
1310nm
Max. 10km
Mini GBIC / SFP module
LC fiber cables
850nm
Multimode 50 / 125my and 62.5 / 135my
MiniGBIC / SFP optical transceiver
LC fiber cables, 1310nm
up to 2km with 50my fiber cable
typically 500 meters with 62.5my
Managed Switch. 16 x RJ45, 20 x SFP slot 1Gbit (4 x 10Gbit)
8 x 10/100/1000 Mbit RJ45
16 x 100 / 1000Mbit SFP slot shared with RJ45
4 x 10Gbit SFP + slot
Layer 3 Switch with large support management
IPv6 / IPv4
IGMP Snooping (Multicast protocol)
Single IP Address Management
Redundant Power System (230VAC and 36-75VDC)
Goal: 440 x 320 x 44 mm (1U)
Weight: 4.5kg
Operating temperature: 0 - +50°C
Outdoor 2.4GHz omnidirectional antenna, MIMO type
2 pcs. 15dBi omni antennas in the same houses
MIMO is Multi-in, Multi-out principle
Vertical spread is 23 degrees
Horizontal spread is 360 degrees
Designed to minimize the phasing out of the radio signal
Mast mount included with 2 x N socket
SFP - Optical Gigabit transceiver.
Mini GBIC Media Converter
LC, Singlemode, duplex fiber cable
1310nm
Max. 10km
