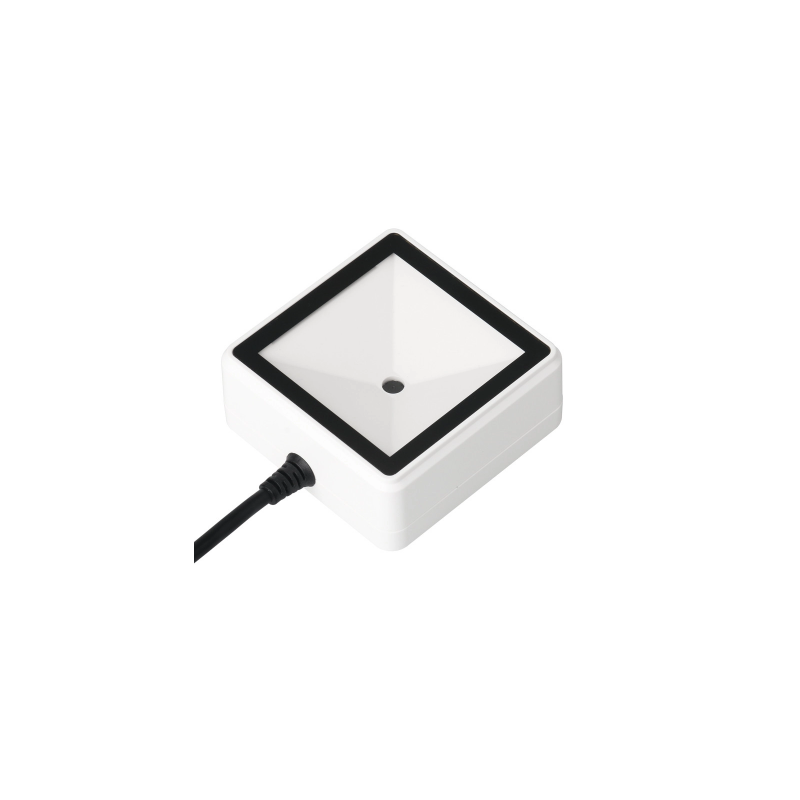

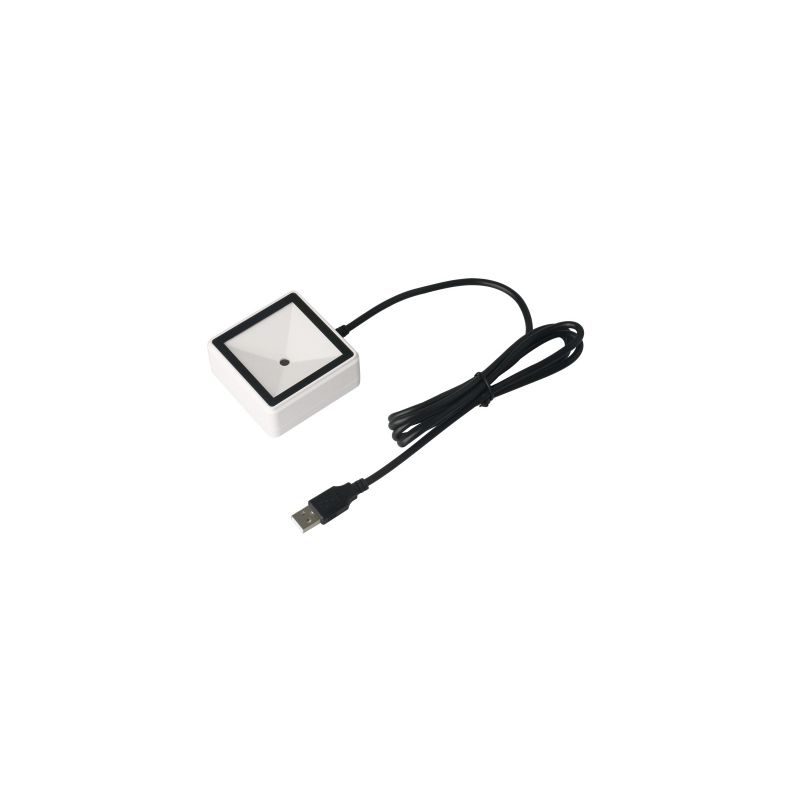

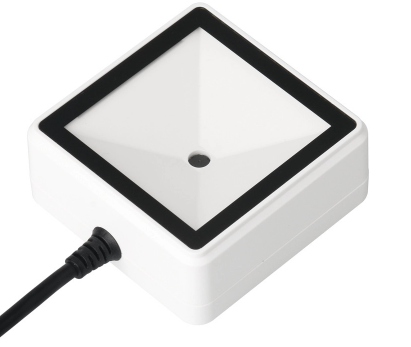

Fixed desktop 1D 2D QR reader, USB. Box with fixing holes

Stationary barcode, QR code reader with USB
Suitable for reading mobile phone screen
4mil/0.1mm
Reading distance: 15 - 340mm (depending on code)
Scan mode: Manual via PC, Continuous, auto-detect
Dimensions: 69 x 69 x 31 mm
Temp: -20 - +50°C
Interface: USB
ADDITIONAL OPTION: Alternative version with USB-COM or RS232

BARCCD2D-E18
936.00 SEK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Is a 2D cost-effective desktop scanner with advanced CMOS image recognition technology.
It can easily read paper, goods, screens and other media 1D 2D barcodes.
Widespread in kiosks, turnstiles, vending machines, ticket checking machines

The wide-angle design is suitable for all types of mobile phone code scanning.
Good readability with soft fill light.
Support online upgrade, custom development and secondary development
Application:
Queue numbering machine
Self-service machine
Ticket checking machine
Bus validator Subway gate * Access control * Turnstiles * Kiosks

2 other products in the same category:

Industrial Panel Mount 1D...

Industrial Panel Mount 1D and 2D (Barcode/QR) Scanner, IP66 tight, USB, white light, fast reading

Quick installation (no screws needed)

Can read QR and barcode from your phone's screen!

Supports most 1D and 2D formats

USB1.1, HID-KBW, HID-POS, Custom HID

RS232 (optional)

High speed

Choice of colored light when reading code

IP66-tight

90ms read speed

Reading distance: 0 to 11 cm

Summer

OS Support: Win XP/7/8/10, Android, Linux, Mac.

Operating temperature -20 to 70 degrees

Dimensions 101.5 x 78.5 x 48 mm (hole cutout 640x480 mm)

Print contrast min. 25%

5VDC with special power connector! ("-" is center, "+" is side)

Price 3,208.00 SEK
Product code: BARCCD2D-IP66
On the way in
Quick view
1D and 2D barcode reader,...

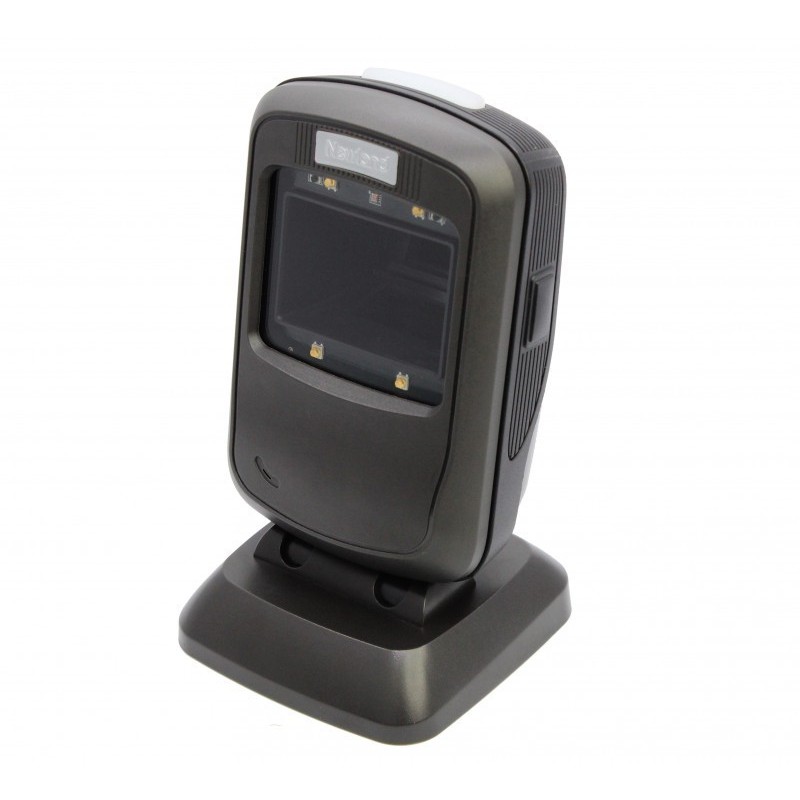

1D and 2D barcode reader, USB HID or COM port, stationary with foot, automatic item detection

stationary fitted barcode scanner
can read Health Card App From Mobile
1D and 2D - CMOS
Read 1D Barcodes
Read 2D Codes QR
Codes from Smartphone Screen
Black Cabinet , IP50
USB - Can be selected as HID Keyboard
USB - Can be selected as Virtual COM
USB - Can be selected as IBM Surepos
Automatic Scan Detection
Many Setups
Very Fast Reading - Up to 2.5 meters per second.
fortress holes in the bottom of foot

Price 3,046.40 SEK
Product code: BARCCD2D-USB
On the way in
Quick view
