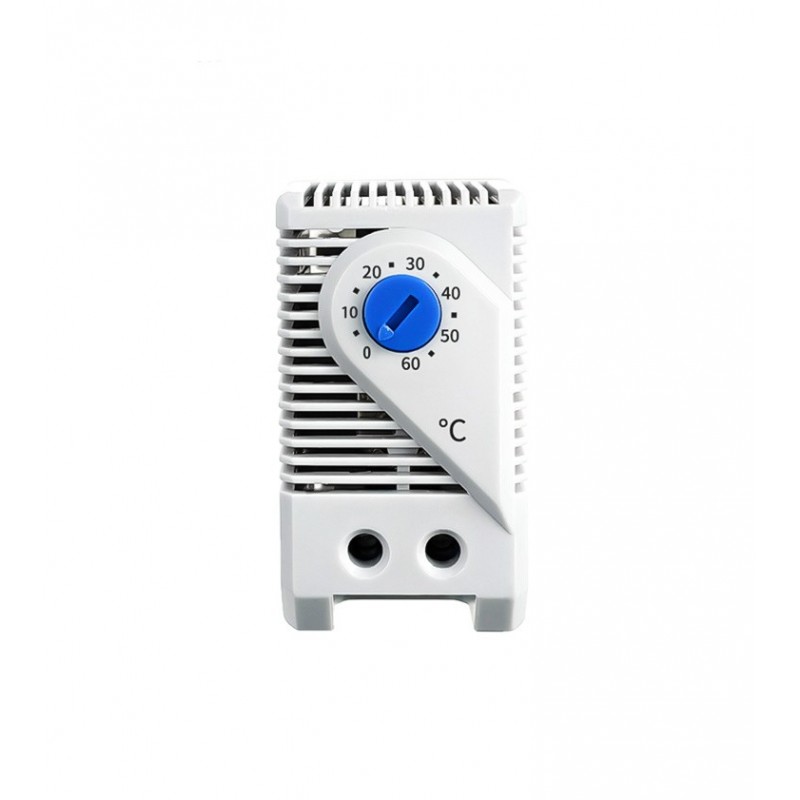

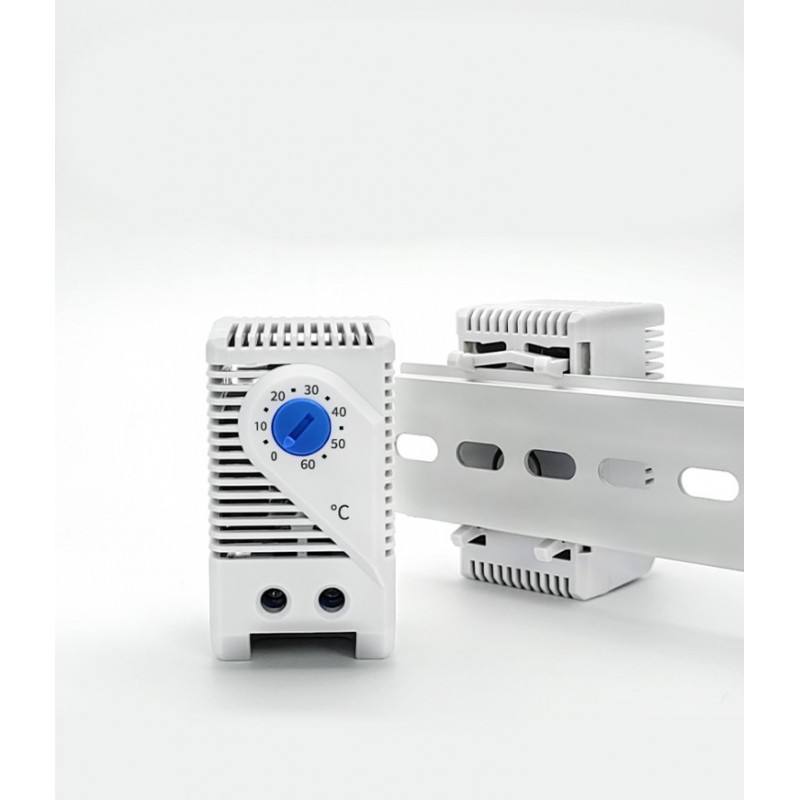

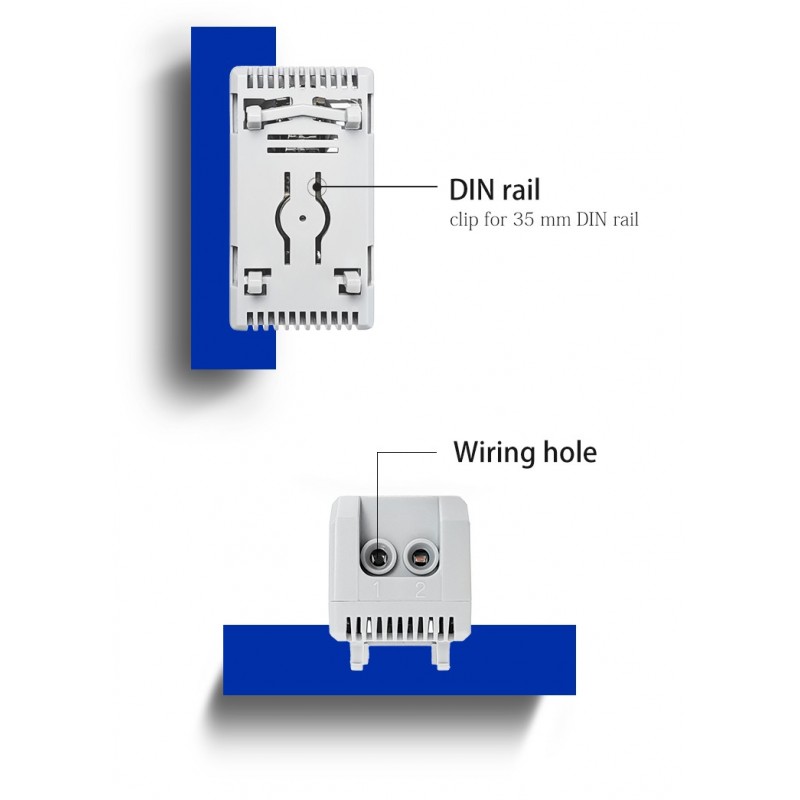

Cabinet thermostat, NO normally (Normally Open) open 0 to 60°C, 230VAC 10A, DIN mounted

Thermostat 0 to 60°C
Snap-Action switch

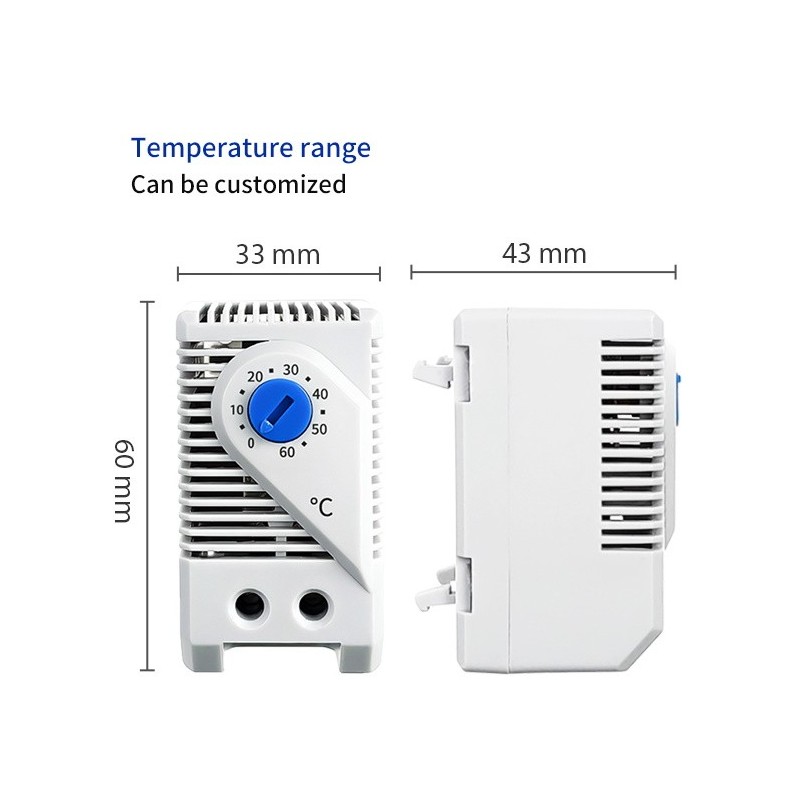

Dimensions 60 x 33 x 43
Max. starting current AC 10
Max. switching capacity NC: 10 A resistive / 2 A inductive @ AC 250 V
(Special specifiction are welcome)

170.00 kr
Excl. VAT
Quantity
Physically in stock
ADD TO CART
Product number REL-TEMP-NO
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Thermostat for cabinet measures temperatures and closes the switch when the temperature exceeds what it is set to.
