15U 19" outdoor rack cabinet with double wall, 40 cm deep
15U 19" outdoor rack cabinet with double wall, 40 cm deep

15U 19" outdoor rack cabinet with double wall, 40 cm deep, with plinth for foundation. IP55 sealed

Outdoor 19" rack cabinet of 15 units
Double wall with 10 mm insulation
Option: 2 x Blower module with digital temperature gauge

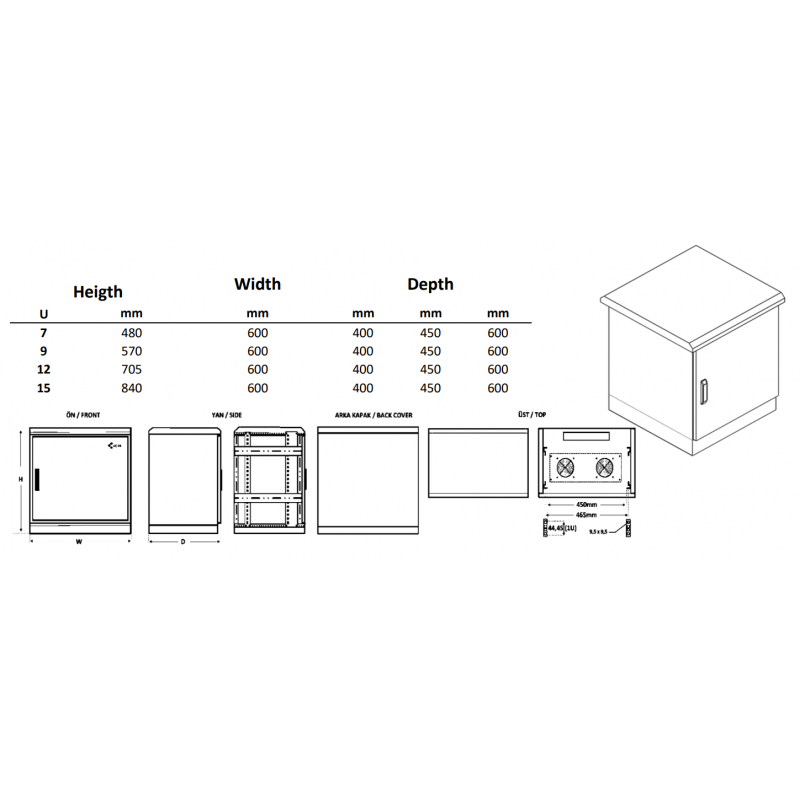

External dimensions: 840x600x600 (H x BXD)
Maximum depth of equipment: 400 mm
The cabinet is delivered assembled.
RACK CABINETS ARE SENT BY CARRIER

12,705.00 kr
Excl. VAT
Quantity
On the way in
ADD TO CART
Product number RACK19"S15-U
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

IP-Tæthed IP55
Rack Units 15U
Dimensioner 600 x 600 x 840mm

This rack cabinet is suitable for outdoor mounting of telecommunications equipment. The rack cabinet can be equipped with 2 fans with a digital temperature gauge, which help keep the equipment cool.
Can be equipped with 75 Watt PTC heating unit + thermostat.
