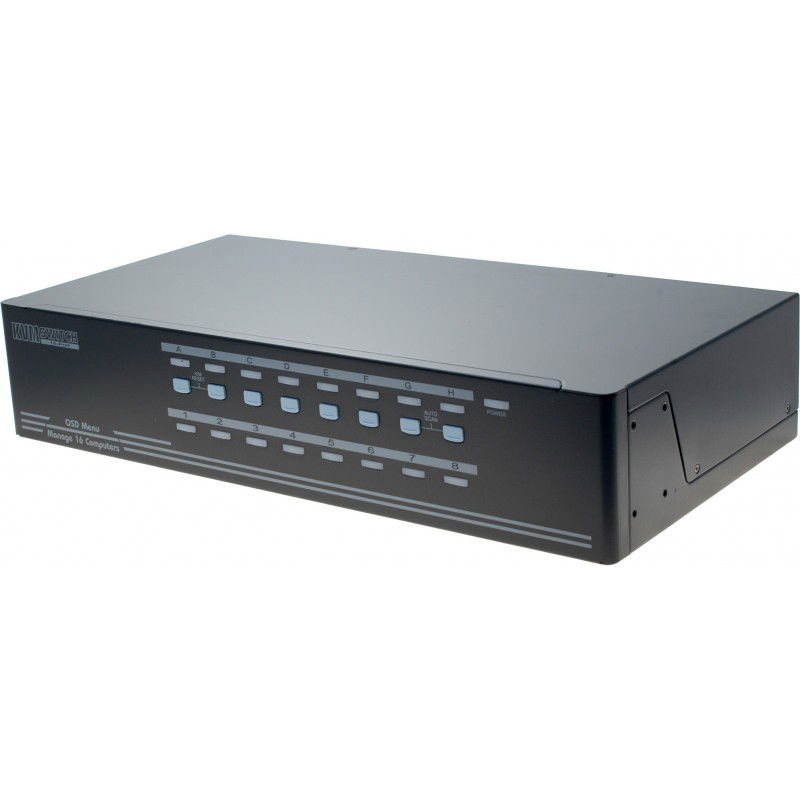

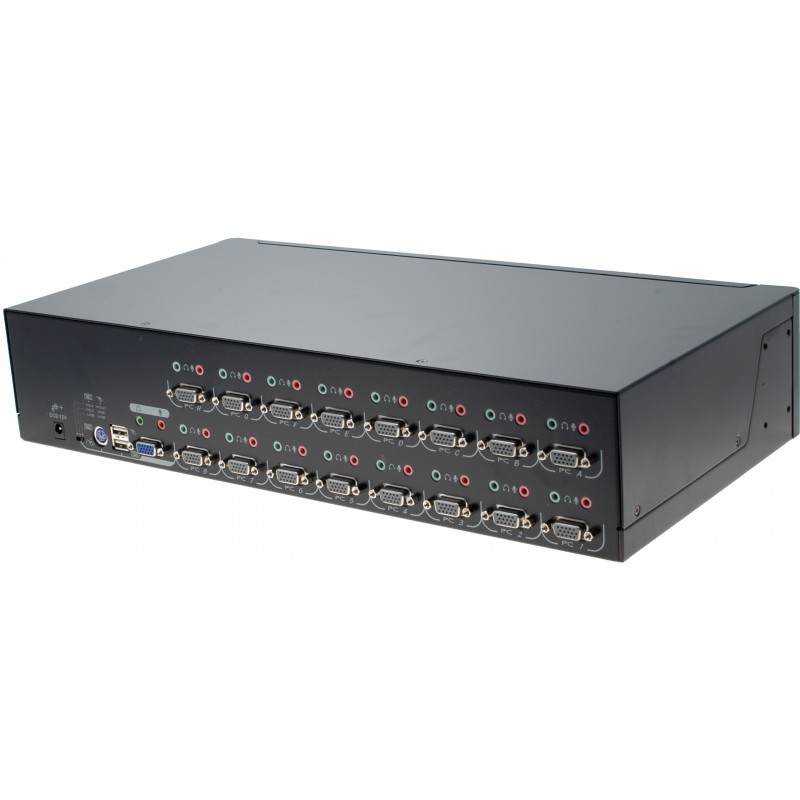

16 Ports KVM switch, VGA, USB with OSD
The 16-port KVM switch with OSD
Resolution up to 1920 x 1440, VGA
16 pcs. combi cables at 1,8m for PCs included
Supports USB and PS2 Mouse and Keyboard
Switching with Hot-key commands
2-way audio
Daisy chain several KVMer up to 136 PCs / Servers < br> Independent of OS16 port KVM switch with OSD
8,894.00 kr
Excl. VAT
Quantity
On the way in
close
Specifications
| Andet | Kaskade op til 136 pc/servere i Daisy Chain (9 KVM-omskiftere)<br>Hot Plug, tilføj eller fjern computere uden at slukke for omskifter. Skift kan foregå med knapperne på front eller via Hot Key (med en bestemt taste-kombination) på tastaturet |
|---|---|
| Forsyning | 100 ~ 240 VAC |
| Kabel | 16 stk. 1,8 m lange KVM kabler med VGA og USB samt 32 stk. 1,8 m lange audiokabler med 3,5mm jack-stik medfølger. Se tilbehør for PS/2- og længere kabler. |
| Lyd | To 3,5mm jack-stik pr. pc tilslutning med audio ind- og udgang |
| OSD | Skærmmenu (OSD), med mulighed for navngivning af tilsluttede pc’er samt password beskyttelse (Engelsk tegnsæt) |
| Skærm | VGA, maks. 1920 x 1440 punkters billedopløsning |
| Stik | 16 x KVM porte (KVM-kabel kræves til hver port) |
| Tastatur/mus | USB eller PS2 (tastaturet emuleres) |
| Type | 16 ports KVM-omskifter (Keyboard Video Mouse) med en bruger |
| Understøtter | Windows 2000, XP, Vista, Win7, Win8, Linux, Mac og Sun |
| Dimensioner | 88 x 433 x 180 mm (H x B x D) |
SW16KEYMON-UR is a 16-port VGA KVM switch with 2U-height, audio, OSD and shortcut keys supports, max. solutions up to 1920 x 1440, built-in automatic scan, password lock function for filtration of unused computers and locking unauthorized Computers, DDC2B compatible, allow 8 computers to share a single USB and PS / 2 console, max. Up to 64 computers through cascade control. It is an ideal solution for factory, office, server rooms, etc.
- USB and PS / 2 interface supports both console and PC page
- cascade configuration expands the system's capacity
- USB Audio function supports
- 1U - height form factor saves rack sites
- unique cables for secured connection
- Auto-scan function automatically selects the computer sequentially
- assigns computers with unique and meaningful names
- identifies and selects computers by the names
- programmable scan filters unused computers
- saves system settings and names in flash memory
- Password safety locks the computer from unauthorized access
- Complete control of user-friendly OSD interface
- Shortcut key functions provide easy access to computer
- Keyboard modes are stored and restored automatically under Change of Computer
- The operating system is independently and transparent for all applications
- plug-and- Play System Configuration
- supports screen resolutions of up to 1920 x 1440
- DDC2B compatible
- supports Sun keyboard control
- Built-in power (optional) < / li>
