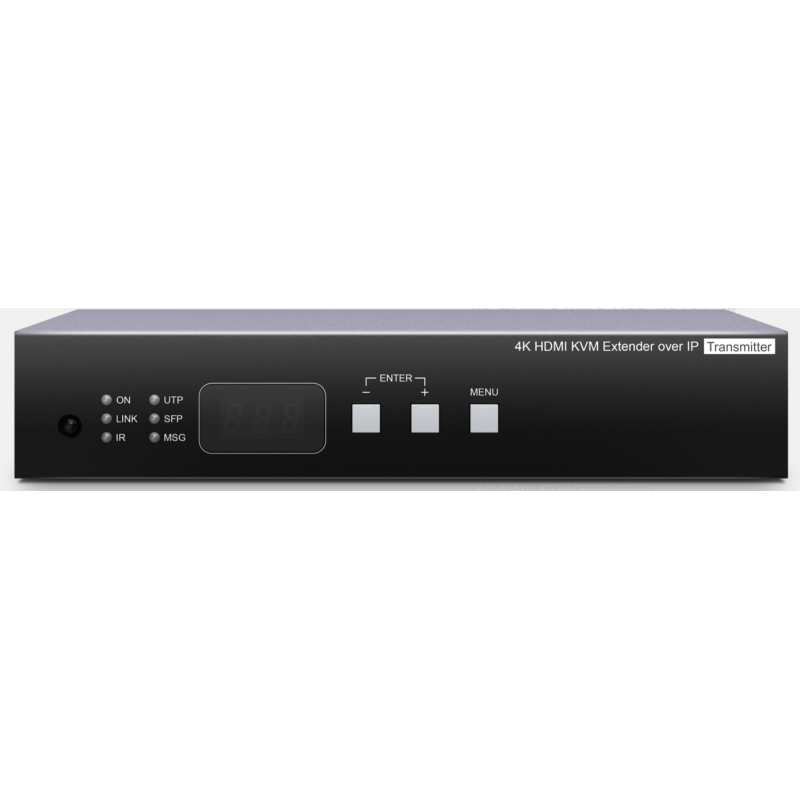

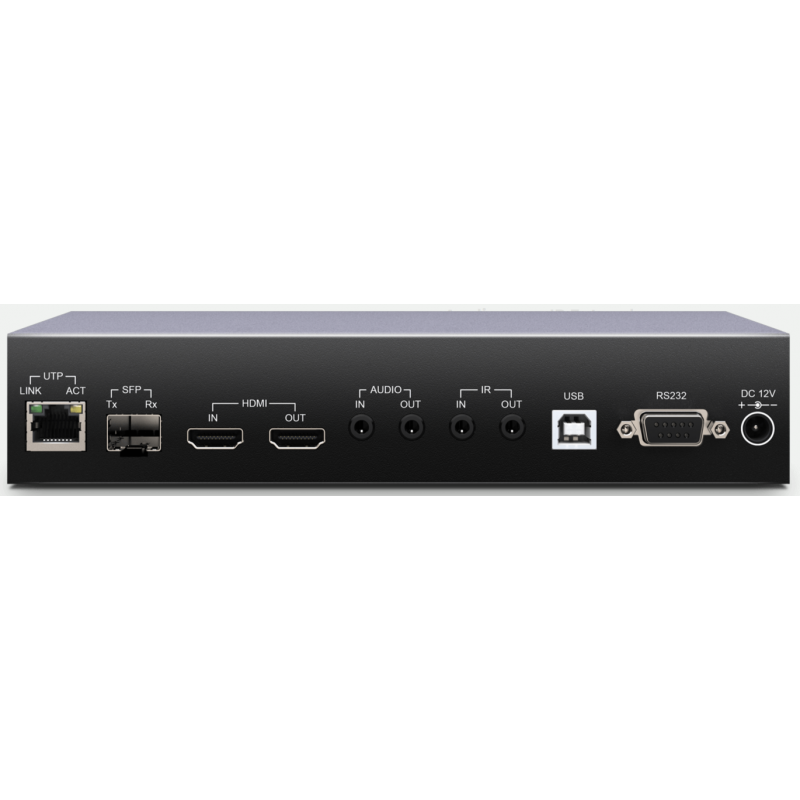

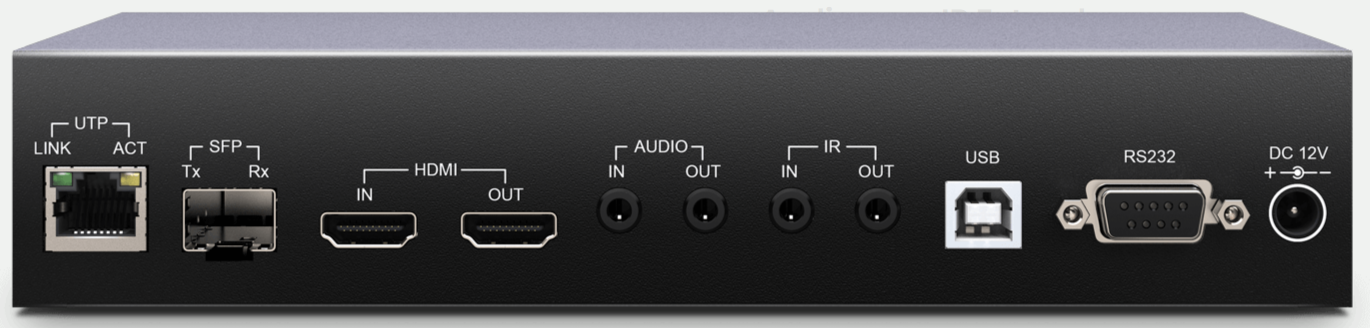

4K@30Hz 4:4:4 HDMI KVM Extender TX over IP / point to point with RJ45 (150m) or fiber (60km). 1 x usb.
4K30 HDMI transmitter / transmitter over IP with HDMI Loop-out

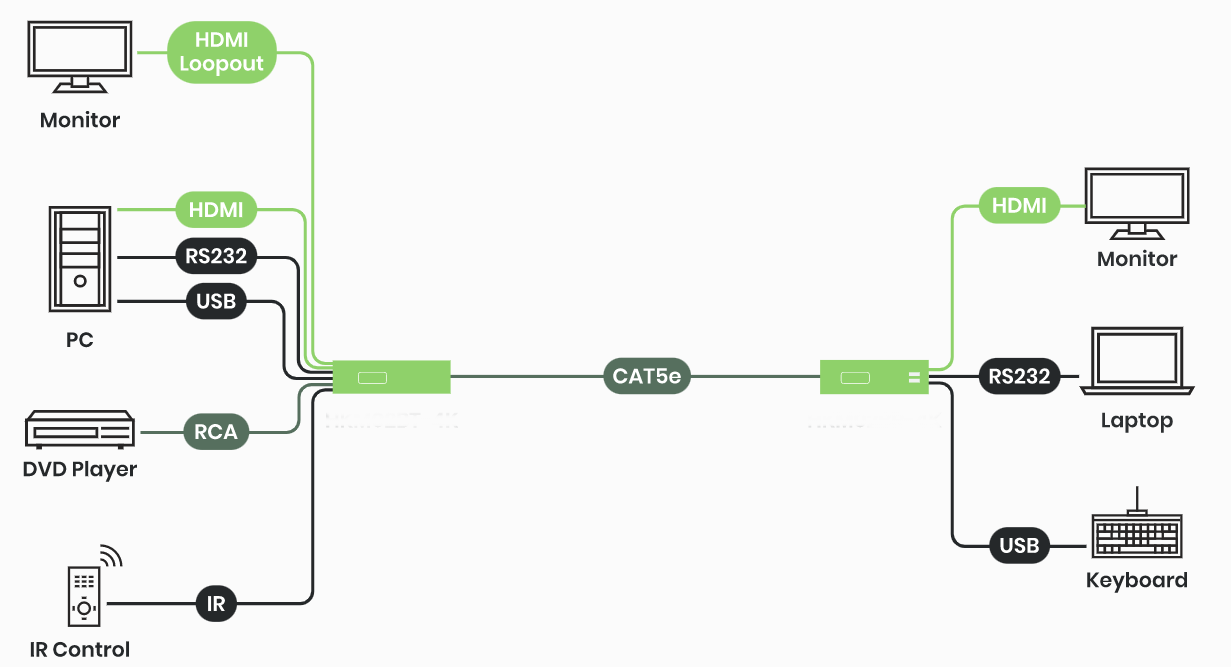

4K30 HDMI transmitter / transmitter Point to Point with RJ45 up to 150 meters
4K30 HDMI transmitter / transmitter Point to Point with Fiber
For fiber connection - purchase additional SFP module
Suitable as HDMI extender (transmitter) for video wall

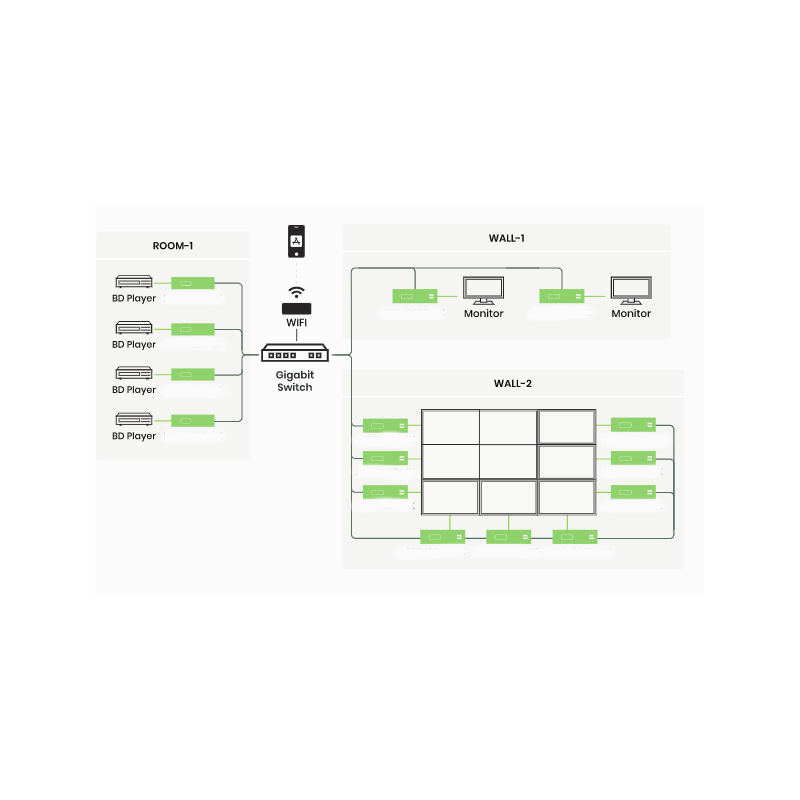

Transmitter 1 to 1 or 1 to 8 x 16 video wall
1 x USB 2.0 (HUB 2 x USB1.1, 2 x USB 2.0)
RS232 port (duplex)

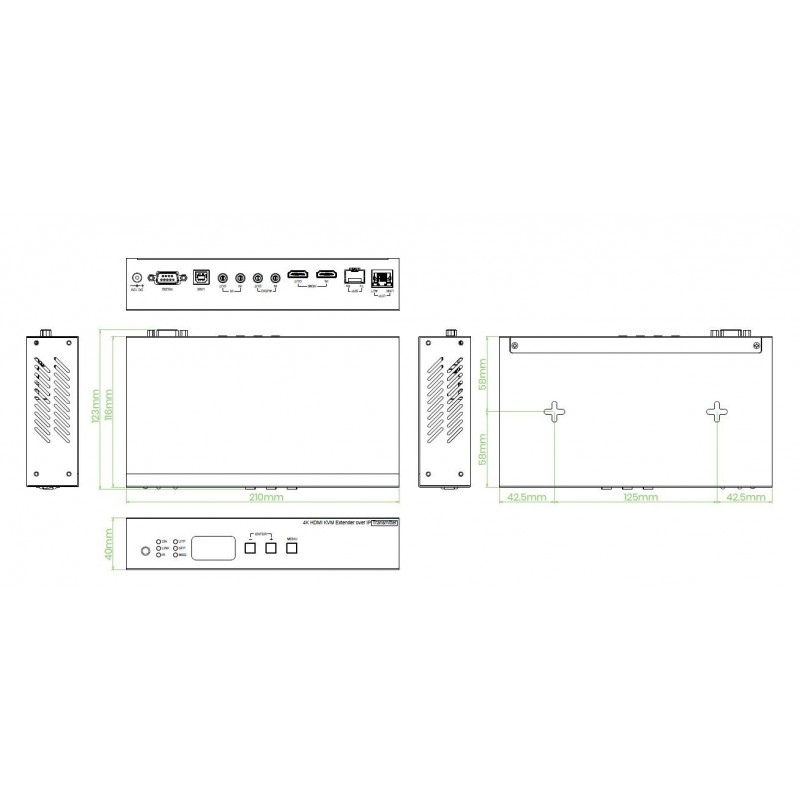

Dimensions: 210 x 123 x 40 mm
Supply: 5VDC 600mA (PSU 5VDC/1.5A)
0 - +55°C
Free APP
$593.45
Excl. VAT
Quantity
Physically in stock
Product number HDMI-MULTI4K-U-TS

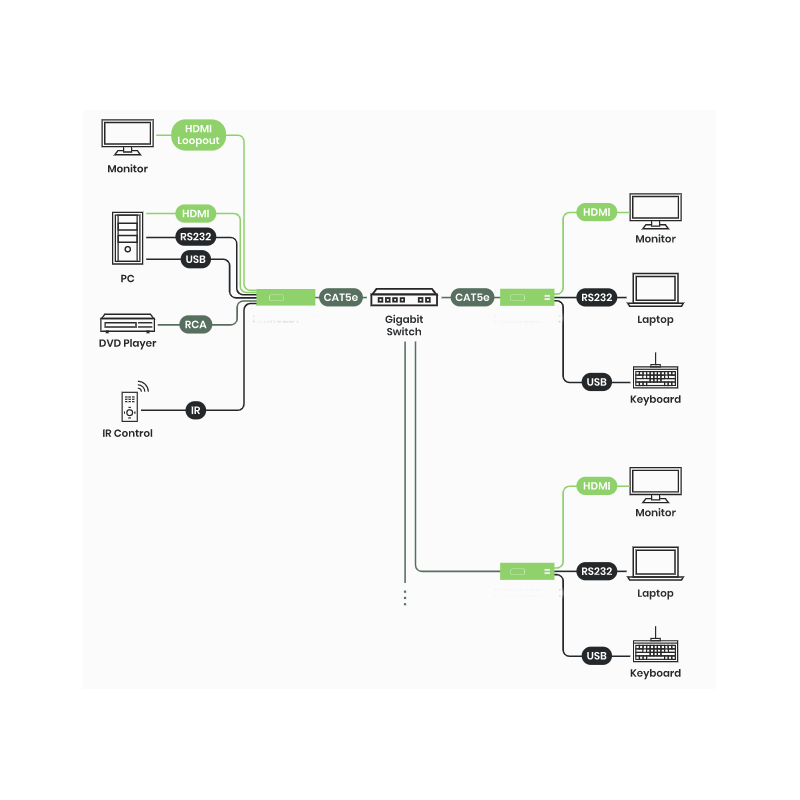

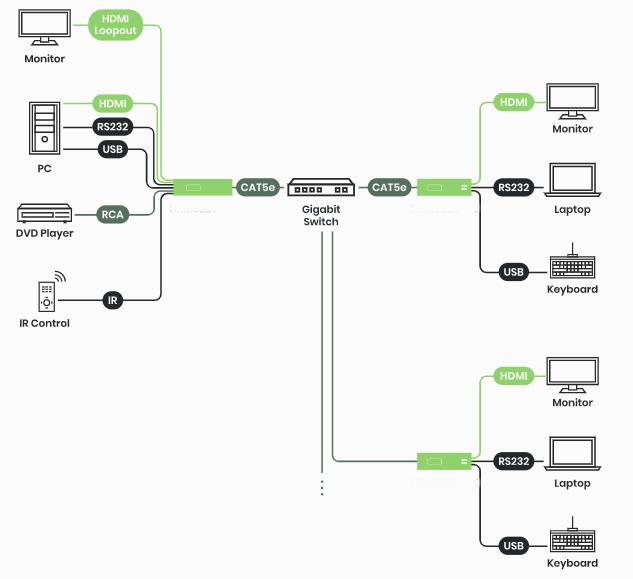

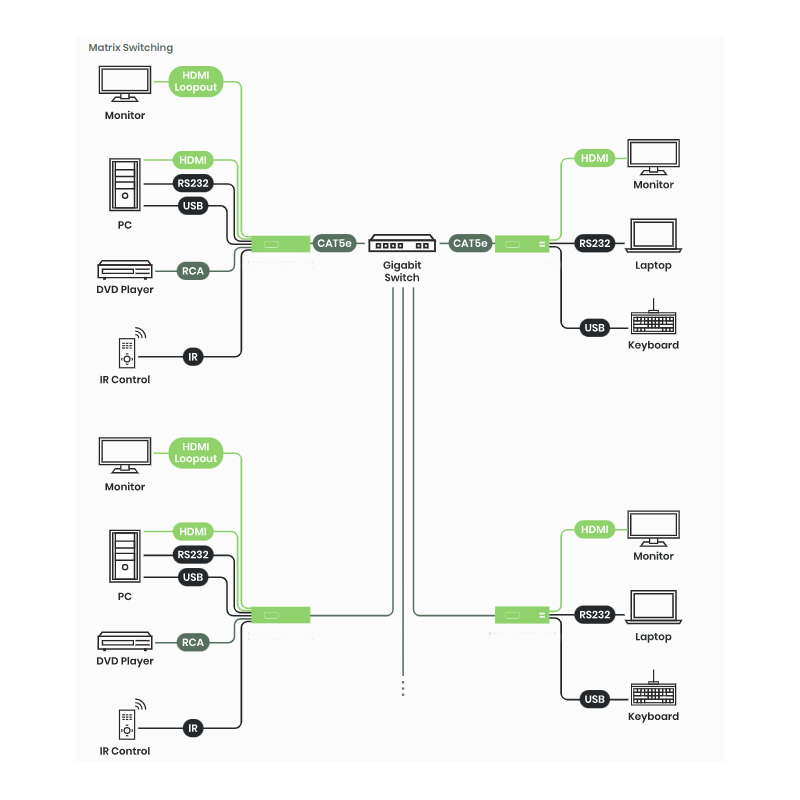

HDMI-MULTI4K-U-TS uses over IP technology to direct up to 1,000 4K HDMI sources for up to 60,000 screens over IGMP and JUMBO frame protocol Gigabit switches, which can achieve HDMI signal extension , Distribution, Switching and Routing. In addition, the boundless switching function allows you to use one mouse to operate multiple PCs by moving the mouse pointer over the screen limits. HDMI-MULTI4K-U-TS is a multifunctional system that integrates multiple media. You can perfectly use it for large security room, classrooms, trading rooms and many more.
