PLANET IVS-2120, video server H.264 Analog video for IP EOL

Internet video server
Industrial design
Temperature range -30 ~ +60 degrees Celsius
Supports H.264 – MJPEG – MPEG4
Video resolution 4CIF, CIF, QCIF
Frame rate 30/25 fps (NTSC/PAL) in all resolutions
Picture setting AE, AWB
3D noise reduction
Color, brightness, sharpness, contrast
Mirror / Flip
8 privacy masks
Text, time and date overlay
Streaming Simultaneous multi-profile streaming
Streaming over UDP, TCP or HTTP HTTPS
M-JPEG streaming over HTTP (server push)
Supports 3GPP mobile surveillance (MPEG4)
Controllable frame rate and bandwidth
Constant and variable bitrate (MPEG4/H.264) ROI

NOTE IS EOL so not recommended for new projects!
Contact us regarding alternative solutions.

KAM-ETH1H264+
988.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Built-in SFP Transceiver to Extend Transmission Distance

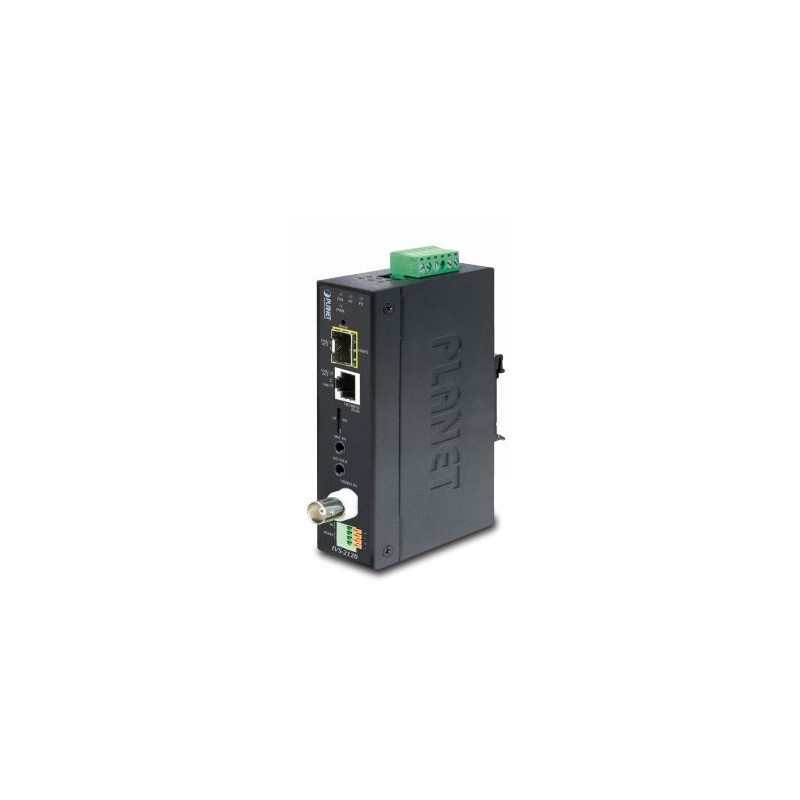

PLANET IVS-2120 one-channel PoE Internet Video Server offers the highly-efficient H.264 video compression, which greatly reduces bandwidth without compromising image quality. When the IVS-2120 and the other side of the device are inserted with a fiber module, the maximum transmission distance can be extended by up to 20km, and the industrial rugged design, which includes a -30 to 60 degrees C operating temperature, IP30 form factor protection, and industrial certifications, make the IVS-2120 suitable for harsh environments.

It provides an easy and high-quality solution to integrating analog CCTV cameras into the IP-based video surveillance system. The IVS-2120 is the ideal choice for casinos, airports, traffic surveillance, prisons or anywhere an analog surveillance system is already installed and full frame rate is needed.

Full Frame Rate in All Resolutions

The IVS-2120 supports H.264, MPEG-4, and M-JPEG compression formats to deliver excellent picture quality in 4CIF (D1) resolutions at 30/25 (NTSC/PAL) frames per second (fps). It also can deliver multiple, individually configurable video streams simultaneously at full frame rate in all resolutions, meaning several video streams can be configured with different compression formats, resolutions and frame rates for different needs.

1 other product in the same category:

Convert analog camera to IP...

Convert analog camera to IP camera, POE input, 12VDC for camera, 2 way audio EOL

REMAINDER SALE

Video server with PoE input
Convert an analog camera to a network camera
PoE input from PoE switch or Injector
Has 12VDC output for camera
Compression/format is H.264 / MPEG-4 / M-JPEG
30 frames per second, 2-way audio
1 analogue channel - BNC input
100 Mbitps Ethernet, RJ-45
Discontinued older product only tested with IE

Price 2,900.00 DKK
Product code: KAM-ETH1H264
Physically in stock
