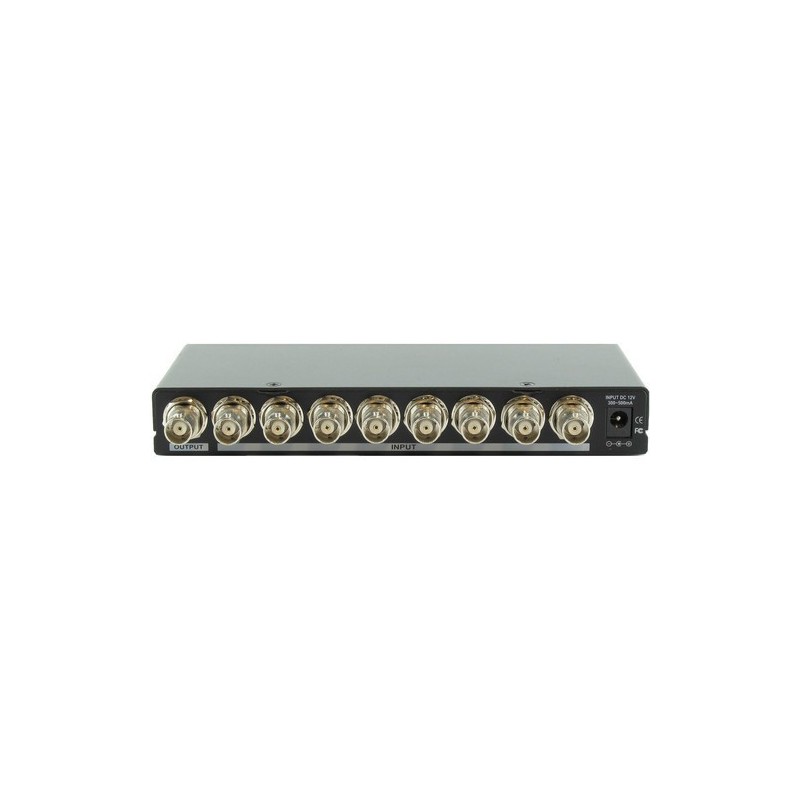

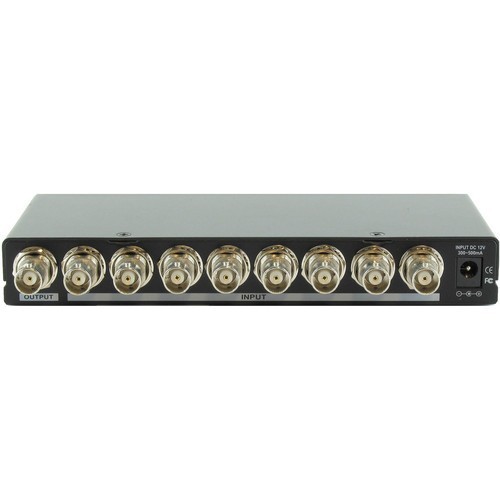

8 x BNC Composite video inputs for 1 x BNC output, push button selection and remote control
Composite Video Switch
8 Input BNC Hier to 1 Output BNC He
Supports lower power consumption at full load below 500 mA
AC / DC Adapter- 12 VDC, 300 mA
Video Distortion: 0 .5 DB
Remote control IR
for wall mounting
175 x 81 x 25 mm
2,822.22 NOK
Excl. VAT
Quantity
On the way in
close
Specifications
| Andet | Menu & IR Remote controller |
|---|---|
| Dimensioner | 17.5 x 8.1 x 2.5 cm |
| Forsyning | 12 VDC @300 to 1000 mA |
| Input | 8x BNC female port |
| Isolation | 60 dB, 6.5 dB Gain between any input and output |
| LED | Control by front pushbuttons with LCD readout |
| Montering | Metal: Wall mountable ear panels attached |
| Opsætning | Easy to install and simple to operate |
| Output | 1x BNC female port |
| Tilbehør | Remote control |
| Trådløs | IR Frequency 38 KHz |
| Video | Composite Video (BNC connectors) |
| Weight | 0.49 kg |
compact composite video/BNC distribution amplifier which supports 8 inputs and 1 output. It is ideal for distributing video signals from security cameras, DVDs, video game consoles, satellite receivers, cable/satellite boxes, and other such devices, to up to 8 screens. The composite splitter is designed to support high-resolution videos for up to 200' (60.96 m) output cable runs.
