12VDC 5 Amp (60Watt) strömförsörjning, 100-240 VAC, kontakt: 5,5 / 2,5mm, C14-kontakt
Strömförsörjning 100 - 240VAC till 12 VDC / 5A, switchläge. 2,5 mm / 5,5 mm jack
strömkabel ingår.

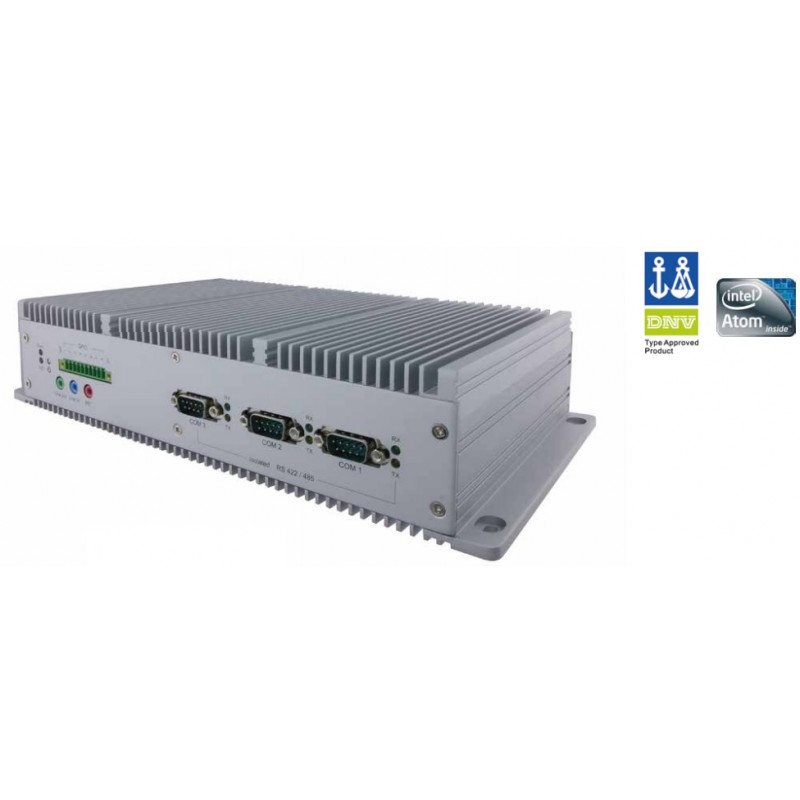

Design for Industrial Automation, M2M-lösningar
Onboard Atom Dual Core D2550 1,86 GHz processor
1 x DDR3 SODIMM, max. 4GB
3 x RS422 / 485 kommunikation med isoleringsskydd
Support 8 GPIO Phoenix typ plintar
2x Giga LAN, 2x USB, 1x VGA, 1x Line in, Linje ut, Micro in
Fläktlös , Högeffektiv termisk designen w / sluten konstruktion
1.5kV DC isolationsresistans
Ett exempel på vad vi kan erbjuda marin / DNV godkända embedded dator, Andra modeller och lösningar som erbjuds. Kontakta säljavdelningen för ytterligare information.
Strömförsörjning 100 - 240VAC till 12 VDC / 5A, switchläge. 2,5 mm / 5,5 mm jack
strömkabel ingår.
Stöder Intel® 8th / 9th-Gen Core ™ i7 / i5 / i3 LGA1151-sockeltyp CPU
4x 802.3at Gigabit PoE + -portar via RJ45-anslutningar
Isolerade CAN-buss
4-CH isolerade DI och 4-CH isolerade DO
2x SATA-portar med ett hotbytbart HDD-fack stödjer RAID 0/1
2x M.2
3x mini PCIe i full storlek
EN 50155-certifikat och E-märke
8 ~ 35V bredbands DC-ingång, tändningskontroll
Stöder Intel® 8th / 9th-Gen Core ™ i7 / i5 / i3 LGA1151-sockeltyp CPU
4x eller 8x 802.3at Gigabit PoE + -portar via M12- eller RJ45-anslutningar (Anges vid beställning)
Isolerade CAN-buss
4-CH isolerade DI och 4-CH isolerade DO
2x SATA-portar med ett hotbytbart HDD-fack stödjer RAID 0/1
2x M.2
3x mini PCIe i full storlek
EN 50155-certifikat och E-märke
8 ~ 35V bredbands DC-ingång, tändningskontroll
Embedded 8th Gen Intel® Core ™ U I7 / I5 / I3 CPU (TDP 15W)
1x 2,5 "Front-accessible SATA HDD Bay för snabb åtkomst och 1x MSATA
2x full-size mini pcie socklar För modul expansion
2x Front-Accessible SIM-kortplatser för signalredundans
Valfria CMI-moduler (2x 10 GBE LAN, M12 A-kodad eller M12 X-kodad)
Valfria CFM-moduler (Effektändning avkänning, ELLER 4X POE)
bred driftstemperatur -40 ° C till 70 ° C
203 mm (W) x 142 mm (D) x 66.8 mm (H)
MIL-STD-810G, E-MARK och EN50155 (EN 50121-3-2 Endast) Certifierad
9~48VDC via 3-pin Terminal Block
Rekommenderas inte för nyare OS! Inget stöd för Windows 10/11
Kontakta oss angående byte
Chipsetet är EOL
Atom 1,6 GHz CPU N2600
2 GB RAM DDR3, So-DIMM-uttag
1 x RS232/422/485 med DB9-kontakt
1 x RS232/422/485/CAN med DB9-kontakt
VGA
4 x USB 2.0
2-in/2-ut digital
2 x 10/100/1000 RJ45 ethernet
Mini SIM-kortplats
2,5" SSD/HDD-kortplats (hårddisk ingår INTE)
DIN-skena montering
9~32 VDC
Mått: 145 x 102 x 50 mm
Temperatur: 0 - +50°C
OS-stöd: Windows 7, XP Embedded och Linux
