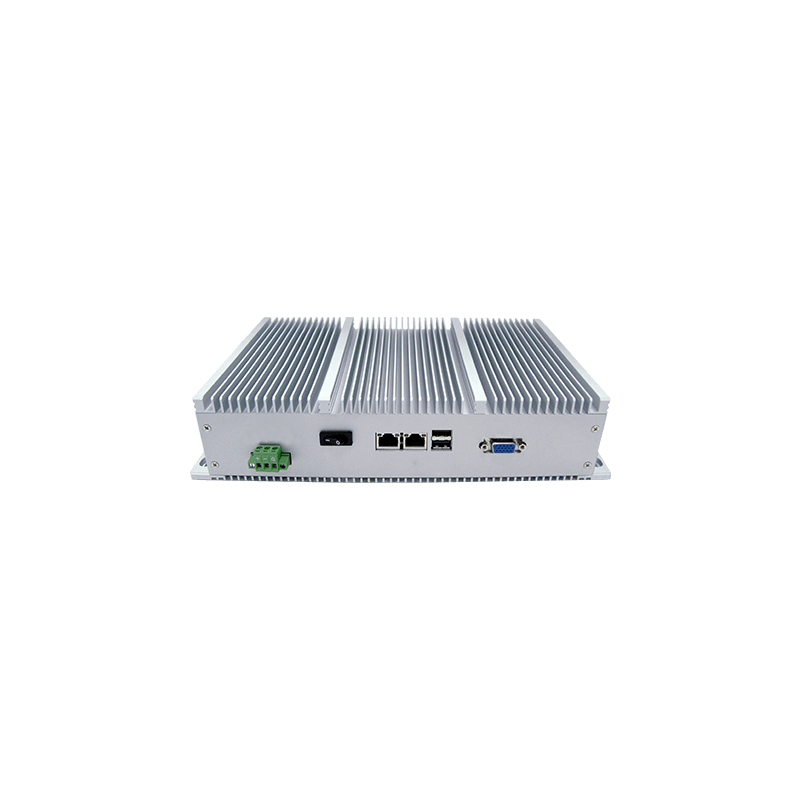

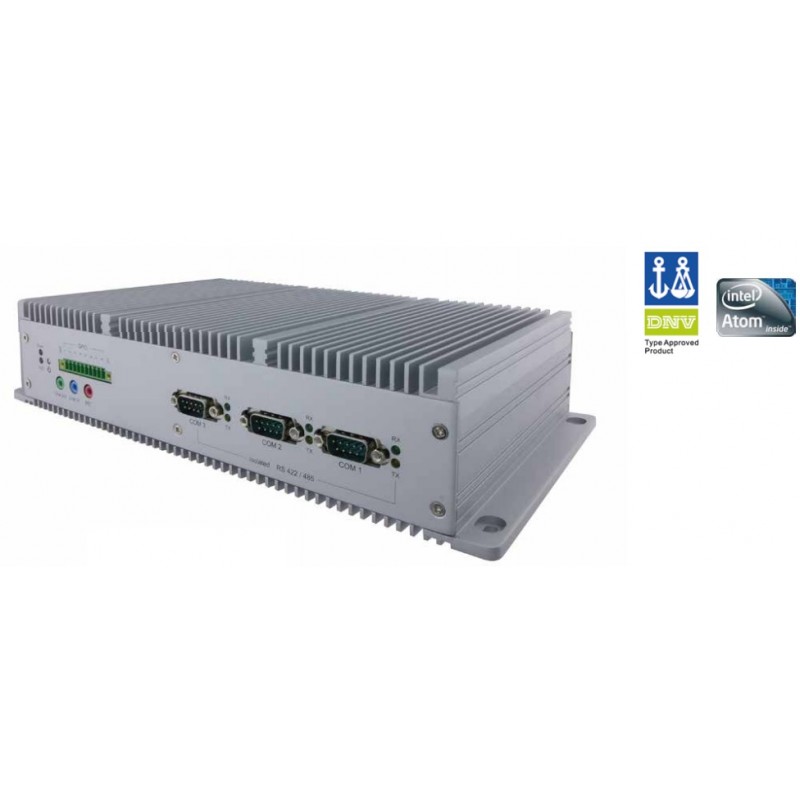

Embedded DNV Marine godkendt PC, 3 x RS422/485 Isoleteret, D2550 1.86GHz, 2 x Gbit

Design for Industriel Automation, M2M løsninger
Onboard Atom Dual Core D2550 1,86 GHz processor
1 x DDR3 SODIMM, max. 4GB
3 x RS422 / 485 kommunikation med isolation beskyttelse
Support 8 GPIO af Phoenix typen Terminal Block
2x Giga LAN, 2x USB, 1x VGA, 1x Line in, Line ud, Micro I
Blæserløs , Højeffektiv termisk design vægt / forseglet konstruktion
OS support: Windows7 32bit
1,5kV jævnstrøm isolationsmodstandDNVGL-CG-0339, IEC 60945 4th Egdtion, CE / FCC

IPC-ATOM-D2550M
11.314,00  DKK
Ekskl. moms
Antal
På vej ind

  • Download PDF
  • file_download Downloads
  • live_help Stil et spørgsmål

Et eksempel på hvad vi kan tilbyde af marine/DNV godkendt embedded PC. Andre modeller og løsninger tilbydes. Kontakt salgsafdeling for yderlig information.
PG

CPU
Intel® Atom Dual Core D2550 1.86 GHz
Arbejdstemperatur
-15 to 55 deg.C
Approval
DNVGL-CG-0339, IEC 60945 4th Edition, CE / FCC
Chipset
Intel NM10
Chok/Vibration
Anti-Vibration 5Hz~500Hz /1Grms /3 Axis Anti Shock 15G, 11ms duration
Dimensioner
(L x W) 296mm x 169mm x 66mm
Ethernet
2 x RJ45 Broadcom BCM57780 GbE controller
Forsyningsspænding
+24Vdc in with 1.5KV DC isolation, Resistance (+9~36V DC input acceptable)
GPIO
8 x GPIO by Phoenix type Terminal Block
Grafik
Integrated in Intel NM10, LVDS/CRT
Grafikudgang
VGA
Luftfugtighed
5% to 95% (non condensing)
Lyd
1 x Micro in , Line out , Line in Jack
Materiale
Aluminum housing
Montage
default wall mount! Option VESA/Desktop
Msata
1 * 64 GB mSATA SSD
Seriel port
1 x RS232, 3 x Isolated RS422/485 auto-detected with Indicator
System Memory
1 x SODIMM, Max 4GB DDR3 800(2GB Default)
USB
4 x USB 2.0 by pin-header(internal) ; 2 x USB 2.0 (external)
