10/100 Megabit unmanaged Ethernet switche fra Antaira er ideel til anvendelse til produktionsanlæg. De er monteret i metalkabinet med DIN-skinnebeslag. De har alle redundant strømtilslutning. De har udvidet temperaturområde og derved perfekt til de krævende opgaver. Produktprogrammet er en bred vifte af non-PoE plug-and-play-modeller.

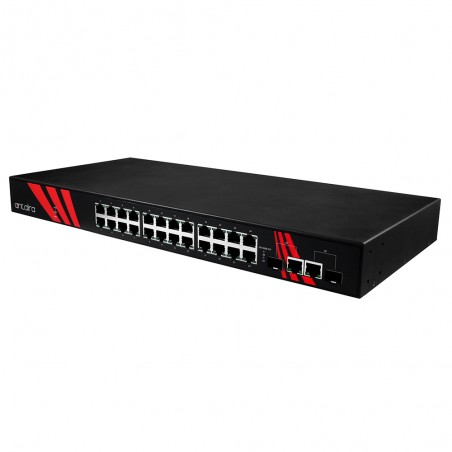

24 x 10/100/1000Tx RJ45 (30W/port) IEEE 802.3at PoE+
2 x Gigabit combo (2 x RJ45, 2 x FTP)
Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
8K MAC Address Table
9.6Kbytes Jumbo Frame
Surge Protection: 2,000 VDC
ESD Protection: 6,000 VDC
Strømforsyning: 48~55VDC
Indbygget relæ Output til Power Failure
1U 19" Rackmount design
Driftstemperatur STD: 40° to 75° C
Supporter 6-Port 10/100Tx and
2 x Gigabit Combo Ports
2 x 10/100/1000Tx RJ45
2 x 100/1000 SFP Slots
Supporter Auto MDI/MDI-X Funktion
Store-and-Forward Switching Architecture
8K MAC Address Table
Surge Protection: 2,000 VDC Support
ESD Protection: 6,000 VDC Support
UL Class I, Division 2 Certified
Redundant Power Input Design: 12~48VDC
Indbygget 1 x Relay Output til Power Failure advarsel
IP30 Rugged Metal
Væg og DIN skinne montering
Driftstemperatur EOT: -40° to 75° C

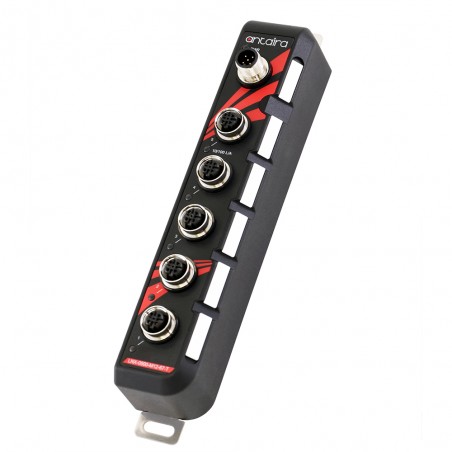

5 x 10/100Tx RJ45 hurtig Ethernet
M12 (D-coded hun) Connector IP67 beskyttet
IP67 Plastic Case Design
RJ45 Port Support Auto MDI / MDI-X
Auto Negotiation hastighed, Half / Full Duplex
Store-and-Forward Switching Architecture
Strømforsyning: 12~48VDC
Power Polarity Reverse Protection
Overload Current Protection
DIN-Skinne eller væg montering
Dimensioner: 37.13 x 215.73 x 32.8 mm (W x H x D)
Driftstemperatur: EOT: -40°C to 75°C
5 x 10/100Tx RJ45 hurtig Ethernet
M12 (D-coded hun) Connector IP67 beskyttet
IP67 Plastic Case Design
RJ45 Port Support Auto MDI / MDI-X
Auto Negotiation hastighed, Half / Full Duplex
Store-and-Forward Switching Architecture
Forsyningsspænding: 12~48VDC
Power Polarity Reverse Protection
Overload Current Protection
DIN-Skinne eller væg montering
Dimensioner: 37.13 x 215.73 x 32.8 mm (W x H x D)
Driftstemperatur: STD: -10°C to 70°C

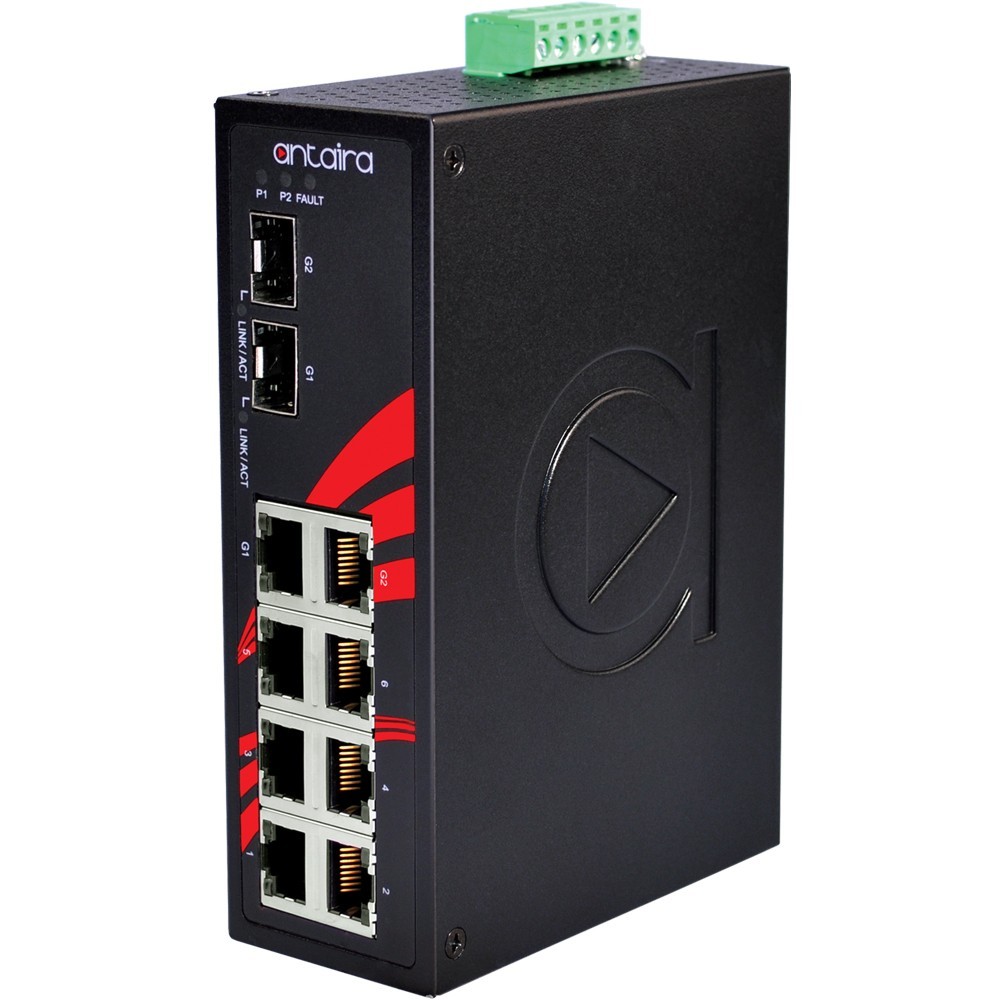

Supporter 8-Port 10/100Tx
2 Gigabit Combo Ports
6 x RJ45 Porte 10/100Tx
2 x 10/100/100 RJ45
2 x 100/1000 SFP Slots
Supporter Auto MDI/MDI-X
Non-Blocking Switching Fabric
8K MAC Address
Surge Protection: 2,000 VDC
ESD Protection: 6,000 VDC
UL Class I, Division 2 Certified
Redundant Power Input Design: 12~48VDC
1 x indbygget relæ Output til Power Failure advarsel
IP30 Rugged Metal Case Design
DIN-skinne og væg montering
Driftstemperatur EOT: -40° to 75°C
Supporter 8-Port 10/100Tx
2 Gigabit Combo Ports
6 x RJ45 Porte 10/100Tx
2 x 10/100/100 RJ45
2 x 100/1000 SFP Slots
Supporter Auto MDI/MDI-X
Non-Blocking Switching Fabric
8K MAC Address
Surge Protection: 2,000 VDC
ESD Protection: 6,000 VDC
UL Class I, Division 2 Certified
Redundant Power Input Design: 12~48VDC
1 x indbygget relæ Output til Power Failure advarsel
IP30 Rugged Metal Case Design
DIN-skinne og væg montering
Driftstemperatur STD: -10° to 70°C

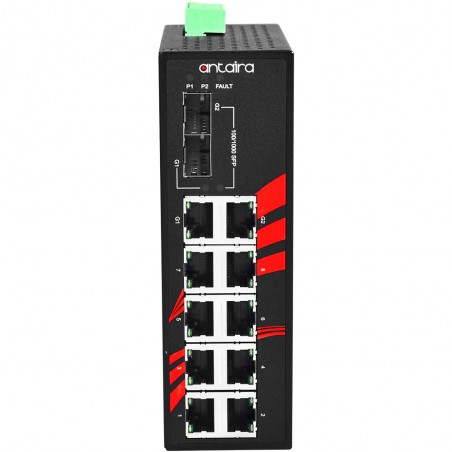

Supporter 6-Port 10/100Tx and
2 x Gigabit Combo Ports
2 x 10/100/1000Tx RJ45
2 x 100/1000 SFP Slots
Supporter Auto MDI/MDI-X Funktion
Store-and-Forward Switching Architecture
8K MAC Address Table
Surge Protection: 2,000 VDC Support
ESD Protection: 6,000 VDC Support
UL Class I, Division 2 Certified
Redundant Power Input Design: 12~48VDC
Indbygget 1 x Relay Output til Power Failure advarsel
IP30 Rugged Metal
Væg og DIN skinne montering
Driftstemperatur EOT: -10° to 70°C
