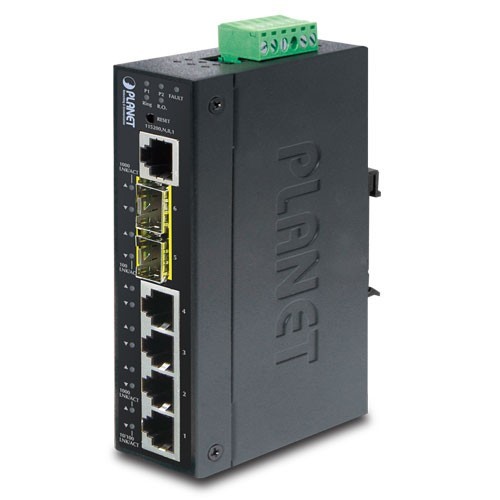

4 ports 10/100/1000Mbit RJ45 + 2 ports 100/1000Mbit SFP slot, Managed switch, 12 - 48VDC og 24VAC

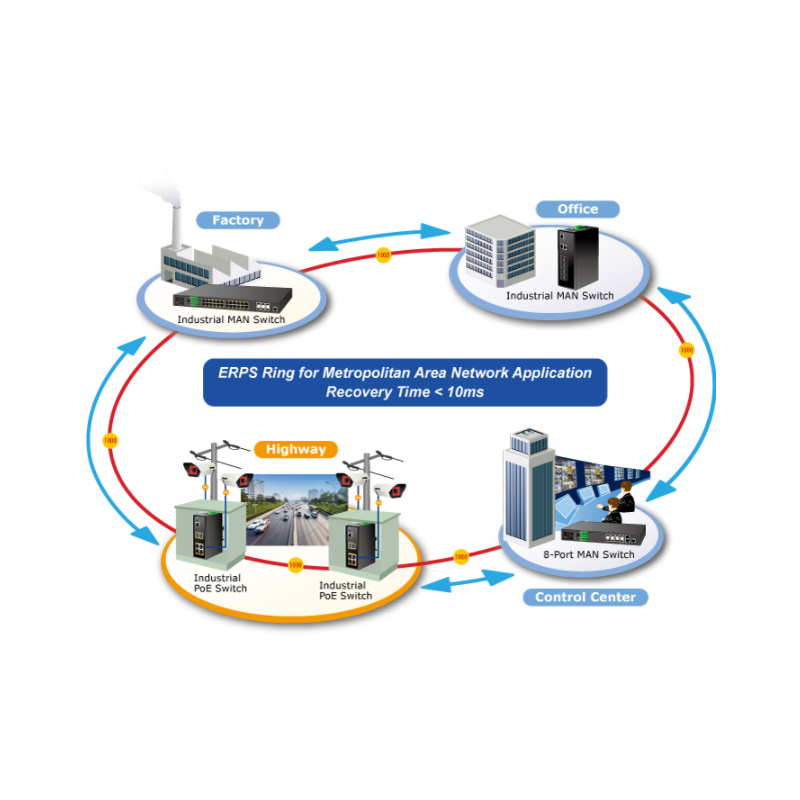

Fast Ring, Redundant Ring for kritisk netværk
IEEE 1588 Time Protocol, supporterer MEF service og synkront Ethernet
Supporterer MODBUS TCP protocol
Supporterer IGMP Snooping
4 x 10/100/1000Mbps RJ45 porte
2 x 100/1000Mbit SFP porte
12 - 48VDC, redundant input
24VAC forsyningsspænding er også mulig
IP30 metalkabinet med DIN-beslag
Temperaturområde fra -40 til +75°C
2.576,00 kr
Ekskl. moms
Antal
På vej ind
close
Specifications
| Driftstemperatur | -40 - 75° |
|---|---|
| Forsyning | Dual 12~48V DC 24V AC |
| Materiale | IP30 metal case |
| Montering | DIN rail kit and wall-mount kit |
| Porte | 4 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| Slot | 2 1000BASE-SX/LX/BX SFP interfaces (Port-5 to Port-6) Compatible with 100BASE-FX SFP |
| Stik | Removable 6-pin terminal block for power input Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2 |
| VLAN | 802.1Q tagged based VLAN, up to 255 VLAN groups Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN Registration) Up to 255 VLAN groups, out of 4094 VLAN IDs |
| Dimensioner | 32 x 87x 135 mm |
Layer 2 Features
- Broadcast/Multicast/Unicast
- IEEE 802.1Q tagged VLAN
- Up to 255 VLANs groups, out of 4094 VLAN IDs- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
- Private VLAN Edge (PVE)
- Protocol-based VLAN- MAC-based VLAN- Voice VLAN
- Supports Spanning Tree Protocol
- IEEE 802.1D Spanning Tree Protocol (STP)
- IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
- IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
- BPDU Guard
Layer 3 IP Routing Features
- Supports maximum 32 static routes and route summarization
Quality of Service
- IEEE 802.1p CoS
- IP TOS/DSCP/IP precedence
- IP TCP/UDP port number
- Supports QoS and In/Out bandwidth control on each port
- Traffic-policing policies on the switch port
- DSCP remarking
Multicast
- Supports IGMP snooping v1, v2 and v3
- Supports MLD snooping v1 and v2
Security
- IEEE 802.1X Port-based/MAC-based network access authentication
- Built-in RADIUS client to cooperate with the RADIUS servers
- Source MAC/IP address binding
- DHCP snooping to filter distrusted DHCP messages
- Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
- IP Source Guard prevents IP spoofing attacks
- IP address access management to prevent unauthorized intruder
Management
- Console/Telnet Command Line Interface
- Web switch management
- SNMP v1 and v2c switch management
- SSH/SSL and SNMP v3 secure acces
