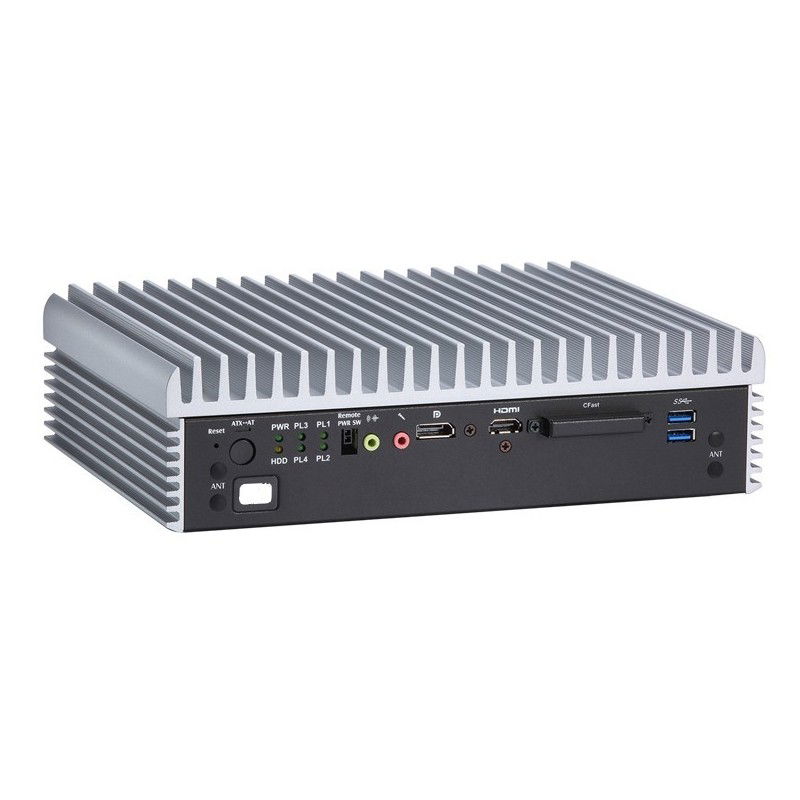

Embedded PC i3/i5/i7, Celeron, 2 x HDMI, 1 x DP, 4xGbit, 6 USB 6th/7th Gen. CPU

6th/7th Gen. i3/i5/i7 cpu support
Max. 32GB RAM
4x RS232/422/485
6x USB 3.0
2x USB2.0
2x 2.5" SATA HHD (RAID0/1 support)
9-36VDC

EPC-IX-GEN7
Ring +45 56 66 20 20 for pris
Antal
På vej ind

  • Download PDF
  • file_download Downloads
  • live_help Stil et spørgsmål

Build To Order
Vi kan levere med fuld bestykning.

Kontakt salg vedr. pris på komplet konfiguration af PC.
Andre modeller haves.

CPU
LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processor (CPU TDP max. up to 35 W)
Andet
4 x SMA type connector opening for antenna 1 x 9~36VDC power input connector 1 x ATX power switch 1 x Remote power switch 1 x AT/ATX quick switch 1 x Reset button
Chok/Vibration
3 Grms with CFast™ (5 - 500 Hz, X, Y, Z directions)
Digital I/O
32-channel programmable DI/DO
Dimensioner
280 x 190 x 70 mm (11.02” x 7.48” x 2.75”)
Driftstemperatur
-40°C ~ +60°C (-40°F ~ +140°F) (with W.T. SSD, CPU TDP 35W)
Ethernet
4 x 10/100/1000 Mbps (Intel® i210IT, i219LM)
Forsyning
9~36VDC
Hukommelse
2 x 260-pin SO-DIMM DDR4-2133, up to 32 GB
IP-Tæthed
IP40
Lyd
Mic-in/Line-out
Materiale
Aluminum extrusion and heavy-duty steel
Montering
OPTION: Wall mount DIN-rail VESA mount not included
OS SUPPORT
WE8S, WES7, Win10 IoT, Linux
Porte
4 x RS-232/422/485
Storage
2 x 2.5" SATA HDD with RAID 0&1 1 x CFast™ 1 x mSATA
Udgange
2 x HDMI (1 x HDMI 2.0 & 1 x HDMI 1.4b) 1 x DisplayPort
Udvidelser
2 x Full-size PCI Express Mini Card (USB + PCI Express signal) 1 x SIM slot
USB
6 x USB 3.0 2 x USB 2.0
Vægt
3.8 kg (8.37 lb)/ 4.6 kg (10.14 lb)
Watchdog
255 levels, 1 ~255 sec.
