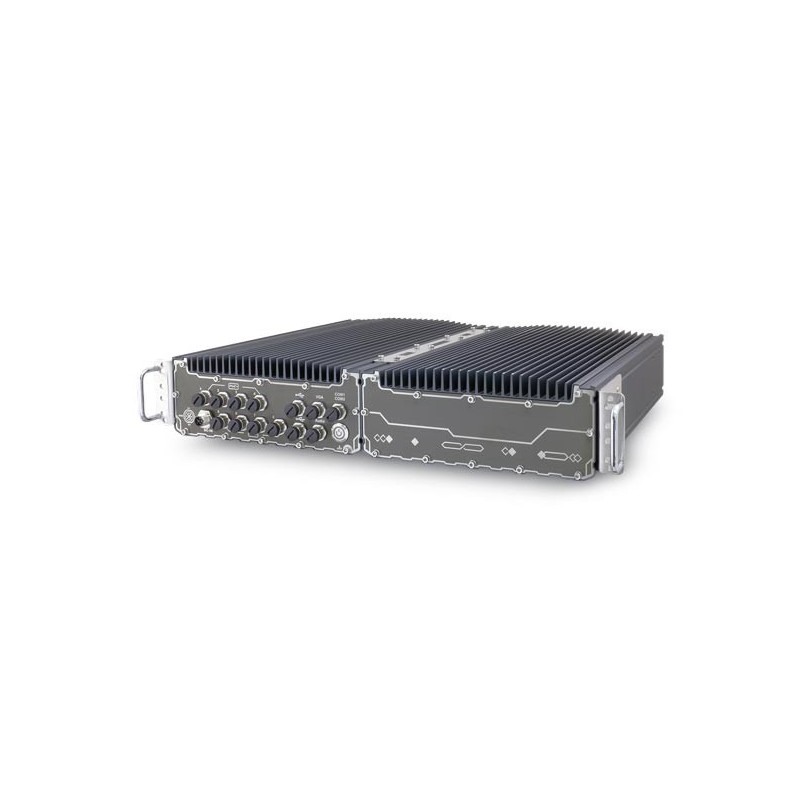

IP67 vandtæt GPU-computer, der understøtter NVIDIA® RTX A2000/ Tesla T4/ Quadro P2200 med alle M12-stik

IP67 blæserløs GPU-computer understøtter Tesla Ta / Quadro P2200
IP67 blæserløs GPU-computer med M12-stik
IP67 vandtæt GPU-computer med NVIDIA® RTX A2000/ Tesla T4/ Quadro P2200
Intel® Xeon® E eller 9./8. Gen Core™ i7/i5/i3 CPU
Patenteret vandtæt 2U 19" chassis til stativ eller vægmontering*
Garanteret ikke-strygende GPU-ydeevne op til 62°C omgivende
Op til otte 802.3at Gigabit PoE+-porte via M12 X-kodede stik
VGA, USB 2.0 og COM-porte via M12 A-kodede stik
8~48V bredområde DC-indgang med indbygget tændingsstrømkontrol
MIL-STD-810G og EN 50155 certificeret
*ROC patent nr. I697759, *CN patentansøgning

EPC-GPU
Ring +45 56 66 20 20 for pris
Antal
På vej ind

  • Download PDF
  • file_download Downloads
  • live_help Stil et spørgsmål
CPU
Supporting Intel® Xeon® E and 9th/ 8th-Gen CPU (LGA1151 socket) - Xeon E 2278GE (8C/16T) / 2278GEL (8C/16T) / 2176G (6C/12T) - i7-9700E, i7-9700TE, i7-8700, i7-8700T - i5-9500E, i5-9500TE, i5-8500, i5-8500T - i3-9100E, i3-9100TE, i3-8100, i3-8100T
Chipset
Intel® C246 platform controller hub
Approval
EN-50155, CE/FCC Class A, according to EN 55032 & EN 55035
Chok/Vibration
Vibration MIL-STD-810G, Method 514.7, Category 4 Shock MIL-STD-810G, Method 516.7, Procedure I
Dimensioner
440mm (W) x 310mm (D) x 86.5mm (H) (excl. rack-mount bracket)
Driftstemperatur
with 35W CPU -25°C ~ 70°C **** with >= 65W CPU -25°C ~ 70°C ***/ **** (configured as 35W TDP mode) -25°C ~ 50°C ***/ **** (configured as 65W TDP mode)
Ethernet
Optional: 1x 10 GbE port by Intel® X550AT controller (M12 X-coded) contact DANBIT A/S
Forsyning
8V to 48V DC input (M12 S-coded) Ignition Control Built-in ignition power control (IGN/ GND signal via M12 serial port connector)
Grafik
Integrated Intel® UHD Graphics 630
Hukommelse
Up to 64 GB ECC/ non-ECC DDR4-2666/ 2400 SDRAM(two SODIMM sockets)
Luftfugtighed
10%~90% , non-condensing
Lyd
depens on solution contact sales
M.2
1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation
Montering
Need to be ordered RACK or Wall mount
mPCIe
depens on solution from 2 full to 4 contact sales
Msata
2x full-size mSATA port (mux with mini-PCIe)
Mål og vægt
depens of solution from 12 to 12.2Kg
PoE
1x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I219 (M12 X-coded) 3x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 (M12 X-coded) 7x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 (M12 X-coded)
SSD
2x Internal SATA port for 2.5" HDD/ SSD installation, supporting RAID 0/ 1
TPM
Supports TPM 2.0
Udgange
1x VGA (M12 A-coded), supporting 1920 x 1200 resolution
USB
from 3 to 5 USB depens on solution contact our sales
AMT
Supports AMT 12.0
