Industriel GPU Computer med medicinsk godkendelse, Gen. 9 I7 CPU
Core i7-9700E 2.6GHz
16GB RAM (option op til 64 GB)
DP X 1, VGA X 1, HDMI X 2
1x PCIe 16x til GPU 250W Max
2x Com, 2x LAN, 10x USB
Windows® 10, Linux

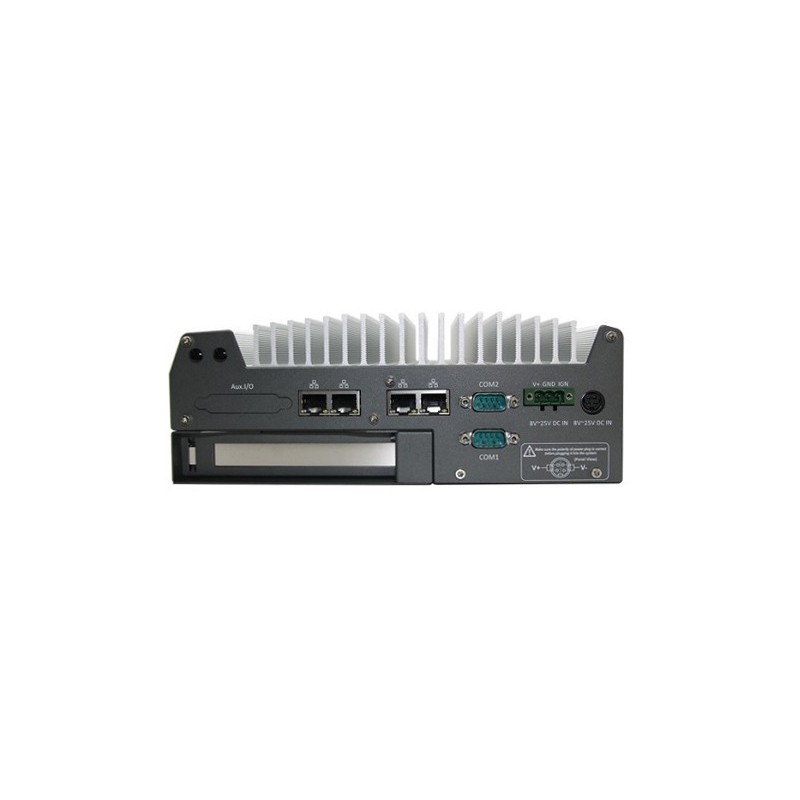

Fuldt bestykket industri PC, 5 x Gigabit netværk, u/OS.
Embedded blæserløs PC.

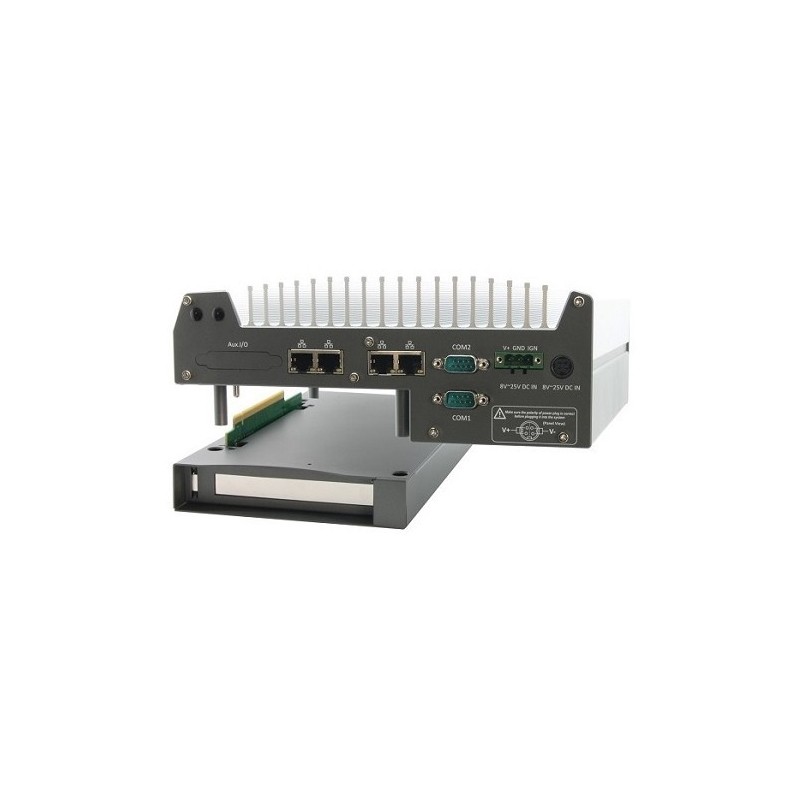

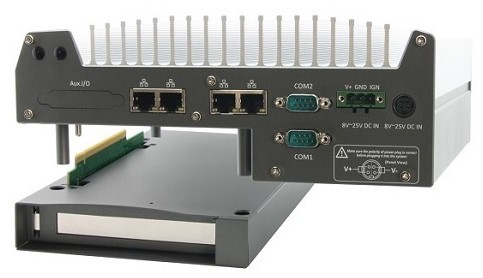

Med 5 x Gigabit netværk samt aftagelig kassette til harddisk/SSD.
Core i7-9700E 2.6GHz
16GB RAM (option op til 64 GB)
DP X 1, VGA X 1, HDMI X 2
1x PCIe 16x til GPU 250W Max
2x Com, 2x LAN, 10x USB
Windows® 10, Linux
Fanless Design
Wide Range DC Power Input (9~36V)
iAMT supported
Triple Independent Displays (DVI-I + DisplayPort*2) supported
Optional WiFi or HSUPA Wireless Connectivity supported
Rugged Design for Shock / Vibration Protection Memory Support up to 16GB (DDR3)
RAID 0,1 Supported
Industriel blæserløs Celeron, i3/i5,i7 CPU-understøttelse (LGA 1151)
Gen. 8/9
Chipset Q370
1x RS232/422/485. VALGFRI! ISOLERET RS232/422/485, Skal bestilles separat!
4 USB 3.1 Gen. 2
2 x USB 2.0
1 x USB (intern, 180D type A til licensnøgle, op til 30 mm)
2 x ETH Intel i211-AT & i219-LM (Option! flere kan bestilles)
VGA, HDMI udgang
19~30Vdc
OPTION: vægbeslag eller DIN-beslag
83,4x192x230 mm (BxHxD)
Arbejdstemperatur -10°C til +60°C, BEMÆRK KRÆVER RAM OG SSD også specificeret for -10°C til +60°C Bestil separat!
OS understøtter Windows 10 og Linix
CPU Xeon, i9,i7,i5,i3 Gen.10
2x LAN
6x USB 3.2
2x USB 2.0
2x COM
1x PS/2
1x HDMI 4096x2160 ved 30Hz
2x DisplayPort 4096x2304@60Hz (ifølge CPU-specifikationer)
1 x VGA
3 x Mini-PCIe stik i fuld størrelse
2 x SIM-slots
4 x CMI-interface: forskellige I/O-moduler se billede
1 x CFM IGN Interface skal bestilles separat
2 x PCI/PCIe slots
Vibration/Stød MIL-STD-810G
CE, UKCA, FCC, ICES-003 klasse A, EN50121-3-2 (jernbane), IEC/EN 62368-1
ANMODNING om yderligere oplysninger med detaljer
