FXM-M040, Fiber HDMI KVM Extender med lyd & IR

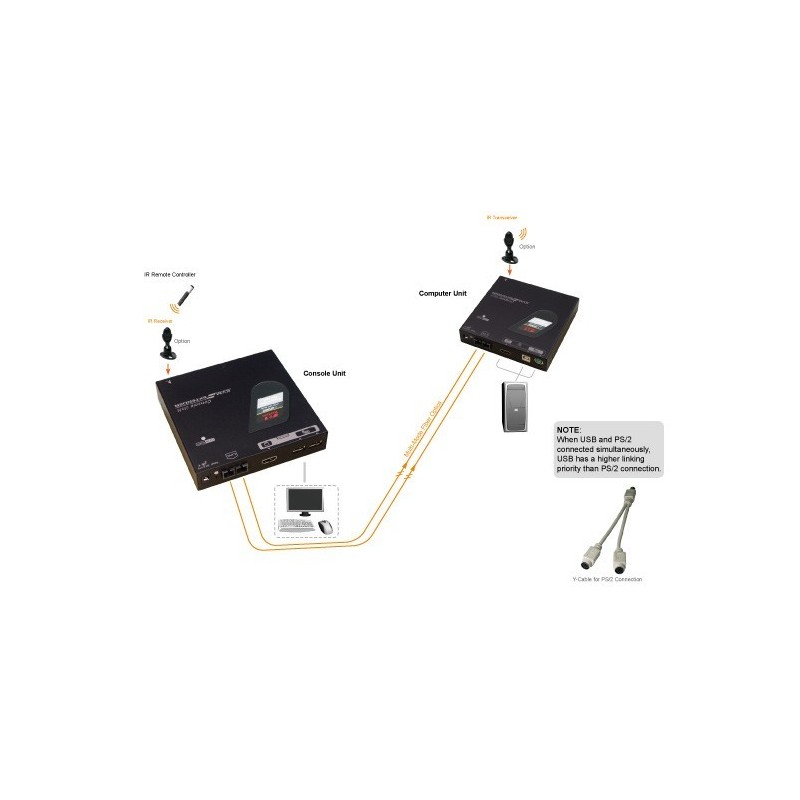

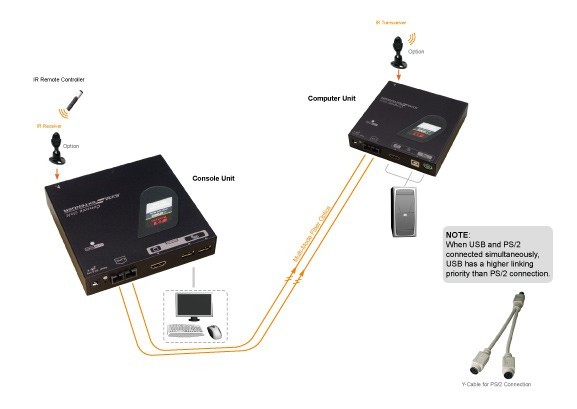

Fiber KVM-forlænger, der transporterer DVI-video, USB-tastatur/mus, lyd og RS-232 serielt via multimode-fiber. Understøtter op til 1000 m ved 1080p eller 2000 m ved 1080i. HDCP 1.4, dobbelt konsol/lokal konsoltilstand.

Remotely locate the keyboard, mouse and monitor up to 100 meters away from a computer
Support high resolution video up to 1920 x 1200 (WUXGA), 1920 x 1080 (Full HD)
Ability to extend IR control through the CAT5 connection
Support PS2/USB PC or KVM
Top panel Dual-color LED easy for Power and Link status identification
Ideal for professional audio / video applications
Support the surge protection
Support the HID standard keys
No drivers needed or software required
Compatible with XGA, SXGA, UXGA, WSXGA ….WUXGA system

Remotely locate the keyboard, mouse and monitor up to 200/ 300 meters away from a PC
Support high resolution video up to 1920 x 1200 (WUXGA), 1920 x 1080 (Full HD)
Ability to extend IR control through the CAT5 connection
Equalizer (sharpness) / gain (brightness) adjustment via hotkeys
RGB skew adjustment via hotkeys for the best video quality
Synchronize the video resolution via hotkeys
Dedicated Mask Hotkey function enables direct control in cascading
Allow two users to share one computers both in local and remote areas
Capable of dual-user access to share multiple computers when KVM Switch cascaded
For professional audio/ video applications
Support the surge protection
Support the HID standard keys
No drivers needed or software required
Compatible with XGA, SXGA, UXGA, WSXGA ….WUXGA system

Extend DVI & Audio signal up to 1,000M@ 1080p (S-M) / 800M@ 1080p (M-M) far away via fiber optics technology
HDTV compatible
Support stereo audio
IR extension available (38K)
HDCP compliant and Blu-ray ready
Completely free of Electromagnetic Interference (EMI)
Low latency from input at local unit to output at remote unit, makes the product suitable for live presentations
Compatible with XGA, SXGA, UXGA, WSXGA…. Full HD system

HDMI Booster, sæt med 1 x transmitter og 1 x receiver
4K HDMI + USB + Serial extender over Giga LAN (POE)
Point-to-point RJ45: Op til 100 meter
Over TCP/IP LAN Extender
Video signal 4x USB 2.0 signal over LAN
Op til 16 modtagere til 1 sender valg via DIP switch
Op til 4 pairings samtidig over Gigabit LAN
Switch skal understøtte IGMP snooping, multi casting
Auto EDID emulering
HDMI with stereolyd
Bi-directionel IR
HDCP godkendt og Blu-ray klar
4K@30Hz, 2160p, 1080p, 1080i, 720p, 720i
Full HD, 4K UHD system
Video wall: 2 x 2, 3 x 3, 4 x 4...9 x 9 skærm-format
Mål: 130 x 117 x 28 mm

Send HDMI and 2 USB signal to multimedia display over CAT5e/6/7 cable
Transmit full uncompressed HD video and audio over cable
Low cost standard CAT5e/6/7 LAN cable
HDTV, 3D HDTV compatible
HDCP compliant and Blu-ray ready
Support Phantom Power -single power supply at either one end of two units (Tx & Rx)
Bi-directional IR control
USB Port is compatible for USB devices (USB keyboard, USB mouse, USB touch screen)
Support for 1080p 60, Deep Color, HD-3D, 4K2K video, HD Audio Formats and Audio Return Channel
Compatible with most of the popular screen resolution to XGA, SXGA, UXGA, WSXGA …Full HD, WUXGA, UHD system
Ideal for hotels, conference rooms), digital signage (airports, shopping malls), surveillance cameras

Extend high definition video signal over LAN
16 selections on the DIP rotary switch available for pairing
Up to 4 pairings can be transmitted simultaneously over the Giga LAN Hub (IGMP)
Each pairing can be broadcasted up to 1000 locations (TVs/ Projectors)
Using Giga LAN system for low latency network and well-grouping management
Automatic EDID configuration
Support HDMI with 2ch. audio
HDCP-compliant and Blu-ray ready
HDTV compatible; support 1080p, 1080i, 720p, 720i
Compatible with XGA, SXGA, UXGA, WSXGA….Full HD system
Optional VESA mounting bracket supported
PoE function supported

Extend high definition video signal over LAN, depending on performance network
Extend USB signal transmission by using the existing LAN system without additional wiring
Suitable for most of popular USB devices (e.g. USB sticks, USB printers, USB Scanner, external hard disk drives etc.)
16 selections on the DIP rotary switch available for pairing
Up to 4 pairings can be transmitted simultaneously over the Giga LAN Hub
Using Giga LAN system for low latency network and well-grouping management
Automatic EDID configuration
PoE function supported
Ethernet technology and TCP/IP communication protocol
HDCP-compliant and Blu-ray ready
HDTV compatible; support 1080p, 1080i, 720p, 720i
Compatible with XGA, SXGA, UXGA, WSXGA….Full HD system
Optional VESA mounting bracket supported
