24" Medico godkendt Panel PC 4th Gen. I5 (1.6GHz)/I7 (2.2GHz) processor

24" 1920x1080 Led Panel PC
P-CAP Multi Touch 10 fingers
Intel 4th Gen. Haswell  i3/i5/i7 support
Anti-bacteria (MRSA) materiale
4GB RAM, MAX. 16GB
500GB HDD
Medical UL60601-1 3rd edition certification
UL Mark/UL60601-1
DVID-D input
OPTIONS

IPP24-IX
35.049,00  DKK
Ekskl. moms
Antal
På vej ind

  • Download PDF
  • file_download Downloads
  • live_help Stil et spørgsmål

Build To Order medico certificeret 24" panel PC.

Komplet løsning med cpu, RAM, OS osv. kan leveres kontakt salg.
Denne panel PC tilbydes med mange optioner f.eks.
4KV LAN/COM/USB isolation I/O
built-in battery pack
optical device (DVD or DVD-RW)

CPU
4th gen. mobile Core i7/i5/i3 proc.(25W max.) (i5-4402E, i7-4702HQ)
Chipset
Intel DH82QM87 PCH
Approval
FCC/CE/VCCI Class B, cULus Mark/UL60601-1, EN60601-1 approved / ISO 14971 / IEC-62133
Dimensioner

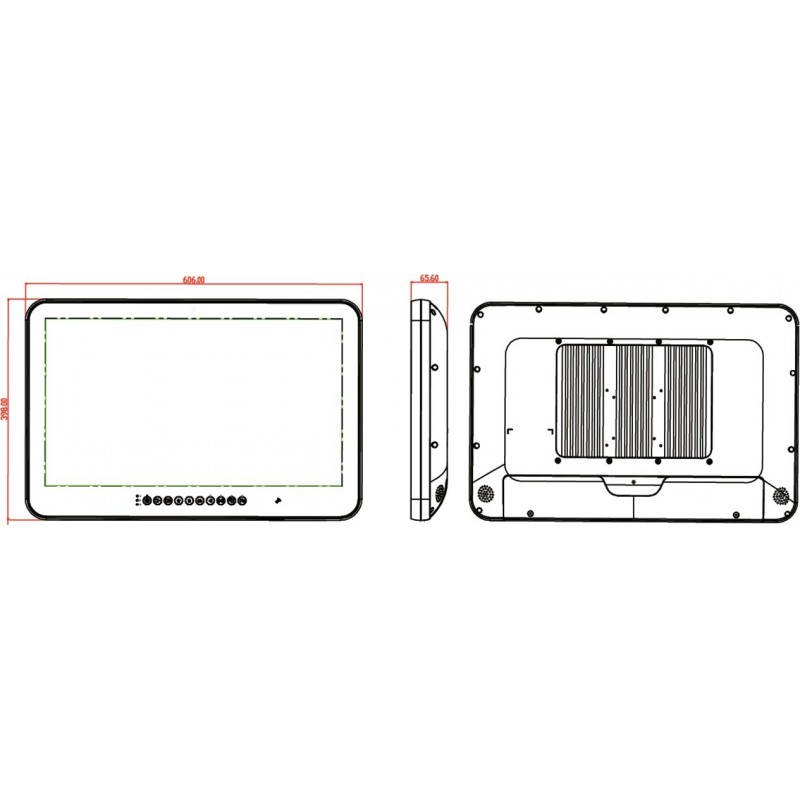

606 (H) x 398 (V) x 65.6 (T) (mm x mm x mm)
Ethernet
2 x Gbit Lan
Forsyning
DC-In x 1,6V~32V
Grafik
Intel integrated HD Graphics 4600
Hukommelse
2x DDR3/DDR3L 1600 MHz SODIMM socket support dual Channel, non-ECC, up to 16GB
IP-Tæthed
IP65 front, IPx1 for whole system
Lyd
3.5mm Audio jack x 2 (Line-out, and Mic-in)
Materiale
Anti-bacteria (MRSA) plastic housing
Porte
COM x 2 (RS232 x 1, RS232/RS422/RS485 x 1;RS-485 auto flow support)
Skærm
24" Full HD 1920 x 1080/ 250 nits
Storage
2.5” SATA HDD drive bay x 1, mSATA via Mini PCI-E(Thru SATA III) x 1 2nd storage DVD drive / or 2nd HDD / or Card reader x 1
Touch
Projective capacitive touch panel (10 fingers)
Udgange
DVI-D (Video-IN) x 1, DP (Video-OUT)x 2
Udvidelser
PCI-Ex 16 expansion slot x 1 or PCI 2.2 x 1, Mini PCIe x 2 (52 pin card-edge type)
USB
USB 3.0 x 4 , USB 2.0 x 2 (Default)
Vægt
9 kg
