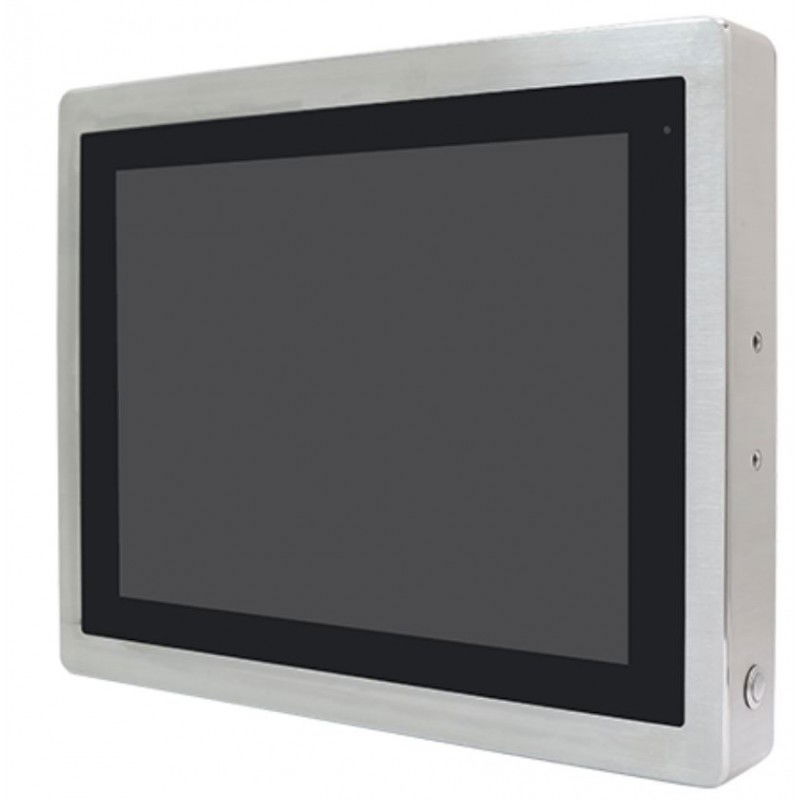

19 "SXGA IP66 / IP69K rustfrit stål panel pc i3-6100U CPU 32G MLC SSD, Projected Touch

19" TFT-LCD 1280x1024
Projected Capacitive Touch.
Intel 6th Core i3-6100U 2.3GHz (option I5 3.0 GHz CPU)
Max. 16GB RAM DDR4
Flat Front Bezel
Grade 304 Rustfrit Stål Kabinet (Grade 316 til Option).
IP66 / IP69K Rated med M12-stik.
Option: RFID
Tryk på tænd / sluk-knappen på sidekanten for hygiejnisk rengøring.
OS supoort: Windows embedded 7/8.1, Windows 10 IoT ENT LTSB
9~36V DC power input

IPP19I3
Ring +45 56 66 20 20 for pris
Antal
På vej ind

  • Download PDF
  • file_download Downloads
  • live_help Stil et spørgsmål

Panel PC opbygget i rustrfrit stål kabenet. Velegnet til fødevare og medicinal industri.
Hygiene venlig konstruktion, der er let at afrense.
Vi tilbyder andre modeller og størrelser.
OPTION!
2 x M12 til en af følgende:
2 x USB 2.0
1 x USB 3.0
1 x LAN (POE option)
1 x COM
1 x CAN

Approval
Certification CE / FCC CLASS A
Dimensioner
470 x 388.6 x 60 mm
Driftstemperatur
0~50°C
Ethernet
10/100/1000MBit LAN 1 x M12 8-pin for LAN with waterproof cover and chain
Hukommelse
1 x SO-DIMM DDR4 max. 16GB RAM (no RAM installed)
IP-Tæthed
IP rating IP66 / IP69K
Luftfugtighed
10 to 90% @ 40°C, non- condensing
Materiale
Construction 304 Stainless steel chassis(default), 316 Stainless steel chassis(optional)
mPCIe
Expansion slot 1 x MiniPCIe slot for WIFI/BT(optional), 4G/LTE(optional)
Msata
1 x Msata onboard
Opløsning
Max. resolution 1280 x 1024
Porte
Serial 1 x M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover and chain
Storage
HDD/SSD 1 x 2.5" SATA3 HDD
Strømforbrug
30W
Strømforsyning
DC 9~36V Power 1 x M12 3-pin for DC power with waterproof cover and chain
Temperatur
-30~70°C
Touch
Standard Projected Capacitiv Touch Light transmission 80%, (Oprion; resistiv, protection glass)
USB
USB 1 x M12 8-pin for 2 x USB 2.0 with waterproof cover and chain
Vægt
9.5Kg
