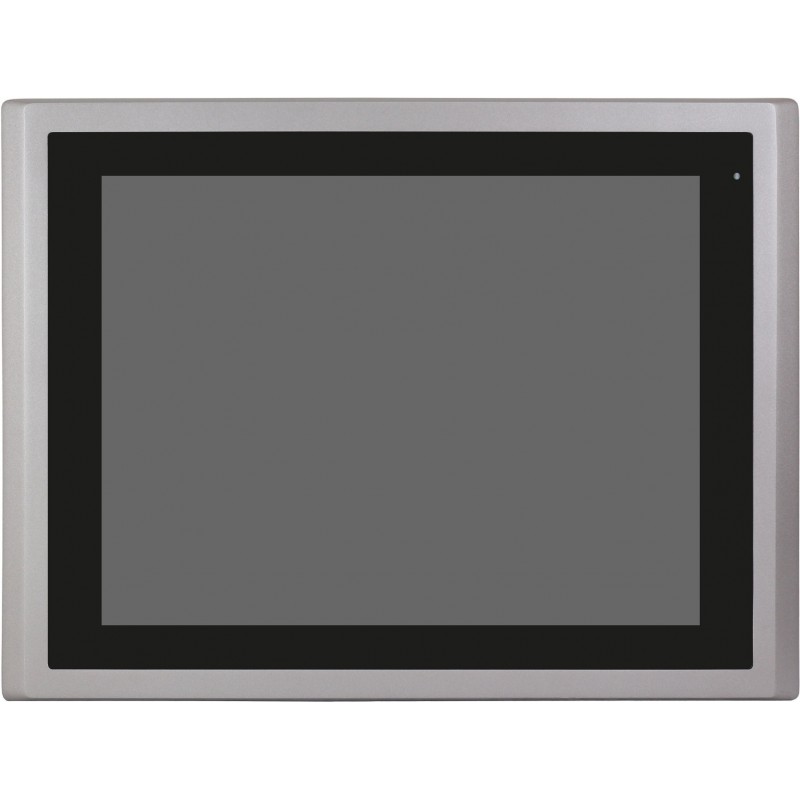

15" panel PC 6 th Gen. i3 / i5 (option) processor med Touch IP66 front

Build To Order
15" TFT-LCD
CPU i3 (i5 option)
Max. res. 1024 x 768
Touch  projected Capacitive Touch
4GB DDR4 RAM (Max. 16GB)
2 x USB
2 x RJ45 Lan
1 x RS232/422/485, 1 x RS232
IP65 front
OS support: Win. Embedded Compact 7,
Win 7 /  7 Pro, Win 7 Ultimate, Win Emb. 8.1 Industry Pro
Windows 10 IoT

IPP15I3
Ring +45 56 66 20 20 for pris
Antal
På vej ind

  • Download PDF
  • file_download Downloads
  • live_help Stil et spørgsmål

Panel PC med Core i3 CPU. Oprion i5 CPU. kontakt salg.
Kan leveres komplet med OS , RAM og SSD.
- Kontakt vores salgsafdeling for priser og mere information.

CPU
Onboard Intel 4th Gen. Core i3 CPU (option i5)
Andet
Optioner: 2 x CAN 2 x USB 2.0 type A + 1 x Mini-PCIe slot + 1xRS-232 DB-9 via TB-528C1U2P1, 2 x USB 2.0 type A , UPS battery 21W/10.8V/1.95Ah
Dimensioner
410mm x 310mm x 54.7mm
Driftstemperatur
temperature(°C) 0~50˚C, -20~60°C (option)
Ethernet
2 x GbE LAN RJ-45
Forsyning
DC 9~36V 1 x 3-pin DC Power input terminal / 1 x 2-Pin Power Switch
Hukommelse
Onboard 4GB DDR4L / max 8GB
LCD
15" TFT-LCD Max. resolution 1024 x 768 Max. color 16.7M Luminance(cd/m²) 420 Viewangle(H°/V°) 160/160 Backlight lifetime(hrs) 50,000
Luftfugtighed
10 to 90%@ 40˚C, non-condensing
Lyd
1 x Audio Line Out
Montering
Panel Mounting / VESA 100 x 100
OS SUPPORT
Windows Embedded Compact 7, Windows Embedded Standard 7, Windows 7 Pro (FES) Windows 7 Ultimate (FES), Windows Embedded 8.1 Industry Pro, Windows 10 IoT
Porte
1 x DB9 RS232/422/485, 1 x RS232 DB9
Storage
1 x 2.5" SATA Bay, 1 x SD card slot max. 32GB
Touch
Projected Capacitive Touch, USB
USB
2 x USB 3.0 type A
