18.5" Wide panel PC med 2.4GHz Core i5 CPU, 120GB SSD, 4GB RAM

Komplet bestykket panel PC
18.5" LED TFT
Uden OS
OS support WIN7, WIN 10 iot 64Bit
2.4GHz Core i5 CPU.
120GB SSD

IPP19I5
16.000,00 kr.
Ekskl. moms
Antal
På vej ind

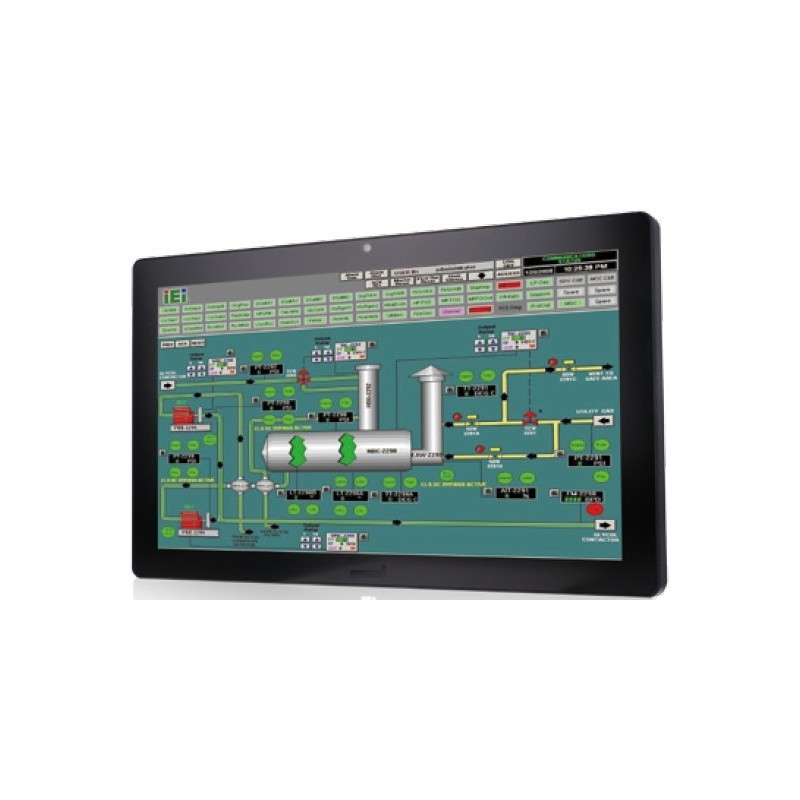

18.5” panel PC med Core i5 CPU.

Velegnet til maskinstyringer, digital reklame eller som operatørpanel.

Til VESA montering.

Kan leveret i 21.5" 16:9

Kan også leveres med Core i3 eller i7 CPU - Kontakt vores salgsafdeling for priser og mere information.

CPU
2.4 GHz 6th Gen . Mobile Core i5-6300U (15W), ULT
RAM
2 x 260-PIN DDR4 SO-DIMM (max. 32GB) 4GB mounted
Netværk
2 x Gigabit m/RJ45 stik. WLAN 802.11b/g/n. Derudover Bluetooth 2.1
Ethernet
2x RJ45 Gbit Intel I211-AT
WiFi/ WLAN
IEEE 802.11a/b/g/n/ac

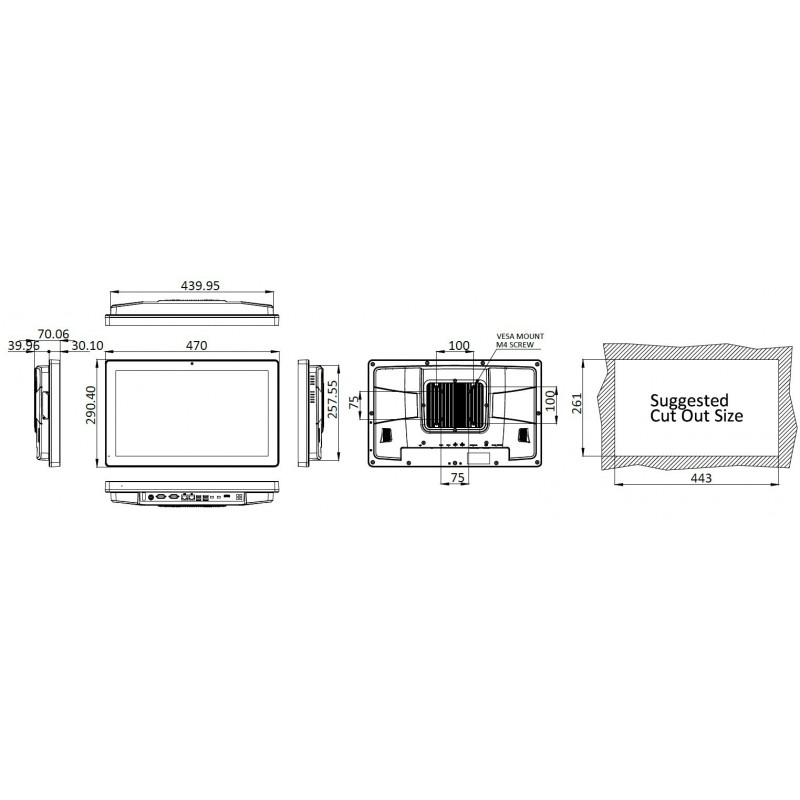

Udskæringsmål
443 x 261
USB
4 x USB 3.0
OS SUPPORT
WIN 7, WIN 10 IOT enterprise 64 Bit
Luftfugtighed
10% to 95% non condensing
Dimensioner
470 x 290 x 70 (W x H x D) (mm)
Andet
2 Megapixel with low light function, Digital microphone
Forsyning
9V ~ 30VDC
IP-Tæthed
IP64 front
Arbejdstemperatur
-20C ~ 50C
Vægt
6.2 kg
Skærm
18.5" LED TFT, 250cd/m2, 1366x768 (16:9)
Grafik
1 x HDMI out
Montage
panel, Wall, Rack, stand and Arm Vesa 75mm x 75mm /100mm x 100mm
Farve
Black C

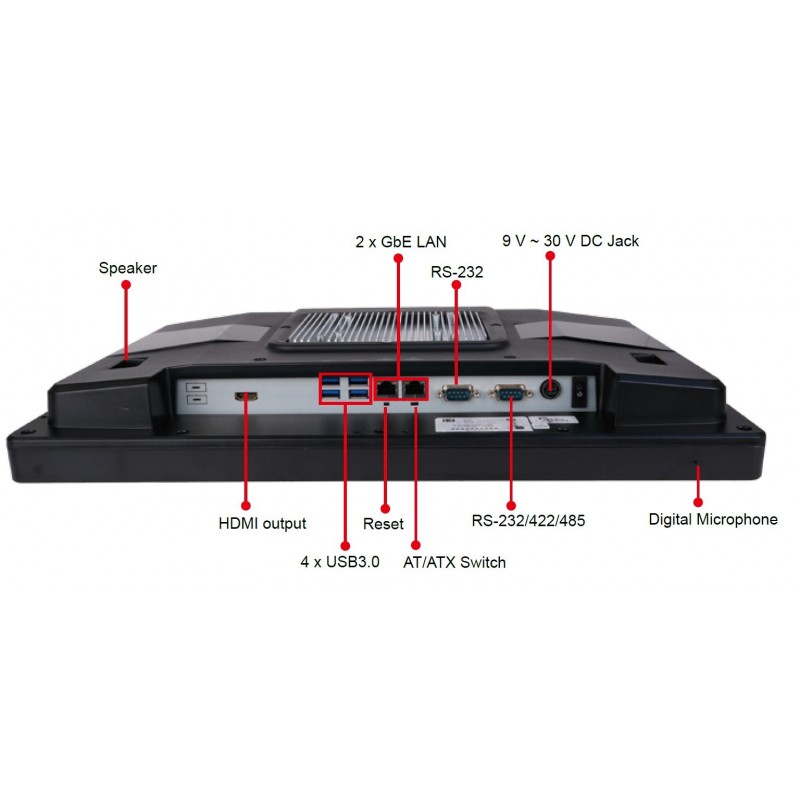

Seriel port
1 x RS232 DB9 (RI/5V/12V), 1 x RS232/422/485 DB9 (RI/5V/12V)
I/O
Ppower on, Reset, AT/ATX switch
Storage
1 x 2.5" Sata 3Gb/s HDD bay, 1 x M.2 PCIe storage, 1 x mSATA slot
Audio
AMP 3W + 3W internal speaker
Touch
Projected capacitive
MTBF
30,000 (LED backlight panel)
Betragtningsvinkel
170/160
Pixels
0.240 (H) x 0.240 (V)
Approval
CE and FCC
bluetooth
V4.0 (M.2slot)
