SATA III RAID controller
SATA 3 RAID controller med 2 x SATA og 1 x IDE

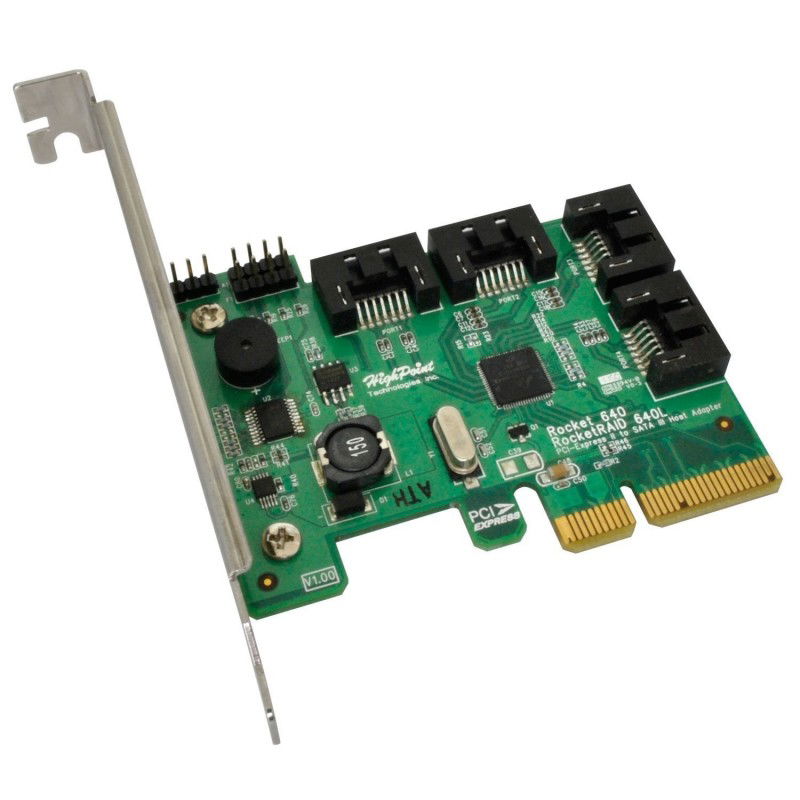

HighPoint RocketRAID 640L Internal 4 SATA Port PCI-Express 2.0 x4 SATA 6Gb/s RAID Controller/Lite Version.
- PCI Express 2.0 x4
- Support RAID 0,1,5,10, JBOD
- Supports up to 4 SATA 6Gb/s and 3Gb/s HDD/SSD
- Hot-Swap and Hot-Plug
- 4x SATA 6Gb/s Ports
- Driver support for Microsoft Windows 7, 2008, Vista, and Linux distributions
- Low profile
- Enhedstype Styreenhed til lagring (RAID) - indstikskort - lav profil
- Bustype PCIe 2.0 x4
- Interface SATA 6Gb/s
- Interface 4 x SATA 6Gb/s - 7 pin Serial ATA ( intern )
- Dataoverførselshastighed 600 MBps
- Understøttede enheder Harddisk, diskarray (RAID)
- Antal kanaler 4
- RAID-niveau RAID 0, RAID 1, RAID 5, RAID 10, JBOD
- Systemkrav Microsoft Windows 7, Microsoft Windows Vista, Microsoft Windows Server 2008
- Dimensioner (B x D x H) 0.15 cm x 10.6 cm x 7.9 cm
- Work Temp: +5°C ~+ 55°C
- Storage Tem : -20°C ~ +80°C
SATA 3 RAID controller med 2 x SATA og 1 x IDE
HighPoint RocketRAID 2300
(RAID) - SATA 3Gb/s - PCIe x1
indstikskort bustype PCIe x1
Interface SATA 3Gb/s
Dataoverførselshastighed 300 MBps
Antal kanaler 4
RAID-niveau RAID 0, RAID 1, RAID 5, RAID 10, JBOD
Systemkrav Linux, FreeBSD, Apple MacOS X, Microsoft Windows, Microsoft Windows (64 bit)
Dimensioner (B x D x H) 10.5 cm x 6 cm
