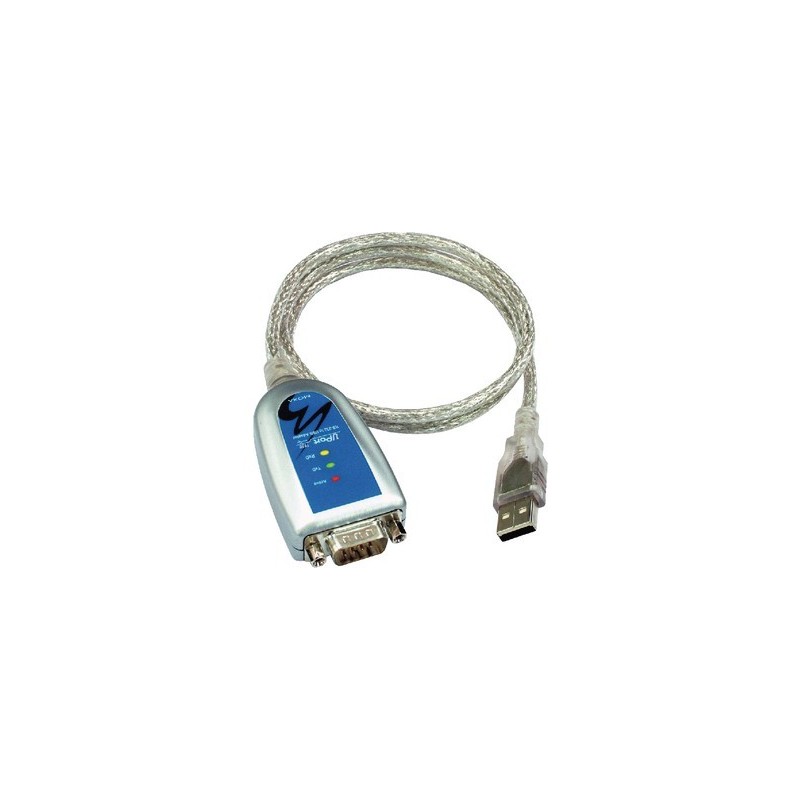

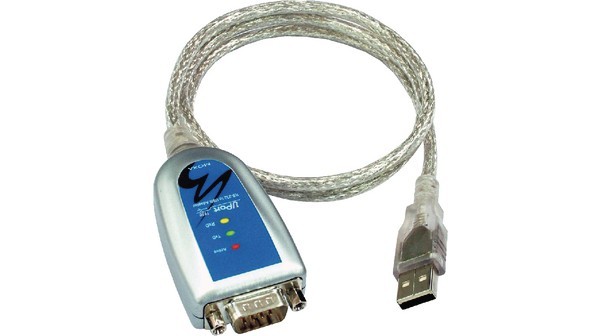

USB til 1 x RS422/485 adapter, optoisoleret, med COM-mapping, MOXA UPORT 1130

Få en RS485 / RS422 port på PC via USB porten
Software til valg af fast COM-port - meget nyttig
Kompatible med USB 2.0
12 Mbps USB data rate
921.6 kbps maksimum baudrate
Driver til Windows, WinCE, og Linux
Mini DB9 han til terminal blok adapter
LED til indikering af USB og TxD/RxD aktivitet
15 kV ESD beskyttelse
2 kV optisk isolation

224,14 $
Ekskl. moms
Antal
På vej ind
Varenummer CNV-USB-SER9+M3
Få Volume Tilbud
close

Få Volume Tilbud


file_download DOWNLOADS
Stil et spørgsmål
close

Stil et spørgsmål





Download PDF

1-port RS-422/485 USB-to-serial converter.

USB Interface
Compliance: SB 1.0/1.1 compliant, USB 2.0 compatible
Connector: USB type A
Speed: 12 Mbps (Full-Speed USB)

Serial Interface
Number of Ports:    1
Serial Standards: RS-422/485
Connector: DB9 male
ESD Protection:    15 kV embedded
Electrical Isolation: 2 kV
Baudrate: 50 bps to 921.6 kbps
Flow Control: RTS/CTS, XON/XOFF
FIFO: 64 bytes
RS-232:    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422:    TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
RS-485-4w:    TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
RS-485-2w:    Data+(B), Data-(A), GND
RS-485 Data Direction:    ADDC® (Automatic Data Direction Control)
Windows Real COM Drivers: Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 Win10 (x86/x64),
Windows 2012 (x64), Windows Embedded CE 5.0/6.0
Android Driver: Linux Real TTY Drivers    Linux 2.4.x, 2.6.x, 3.x
Weight: 65 g
Dimensions: 38.4 x 60 x 20 mm
Operating Temperature:    0 to 55°C
Storage Temperature: -20 to 70°C
Ambient Relative Humidity: 5 to 95% (non-condensing)
Power Consumption: 65 mA @ 5 VDC
