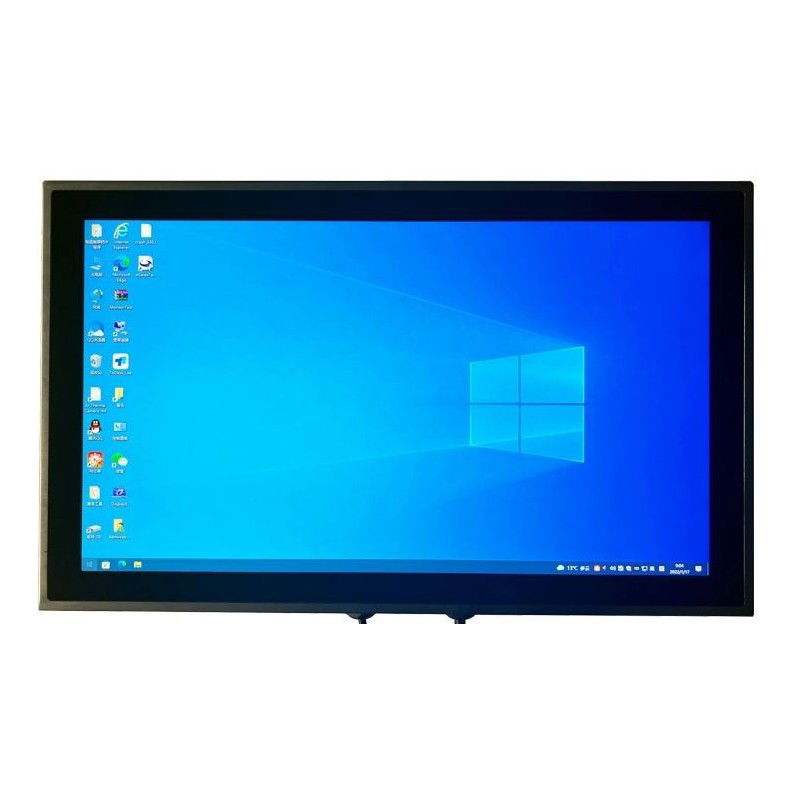

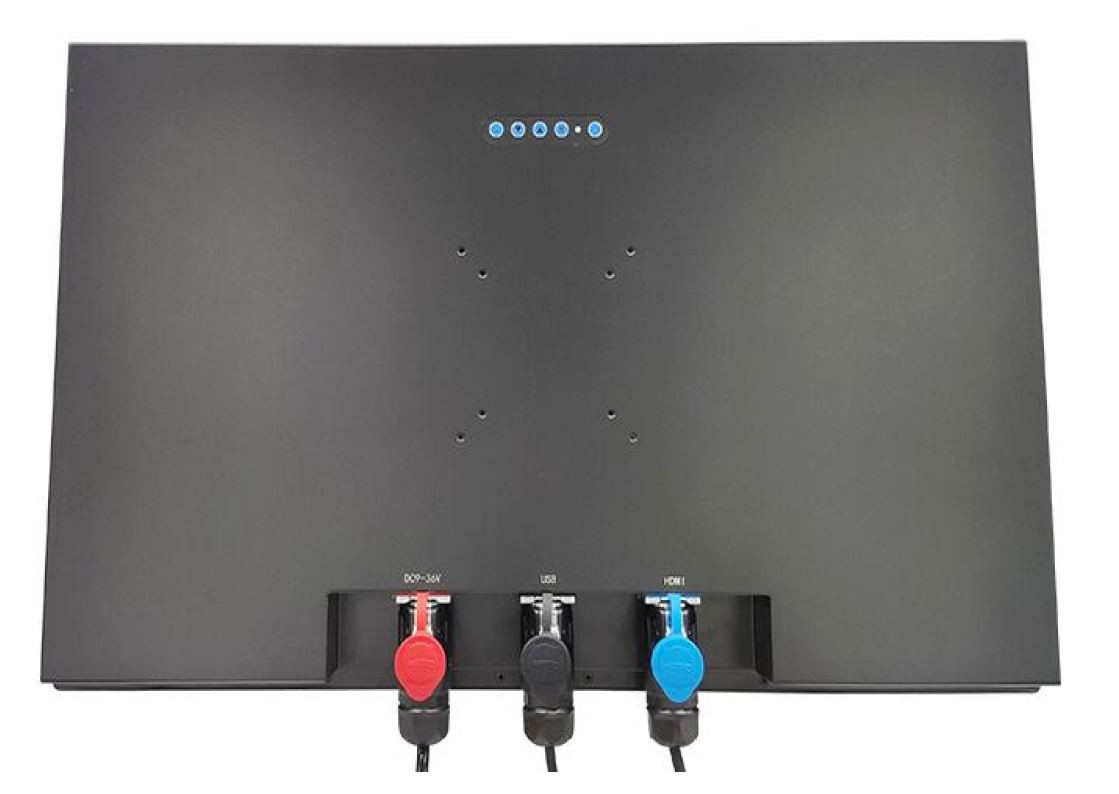

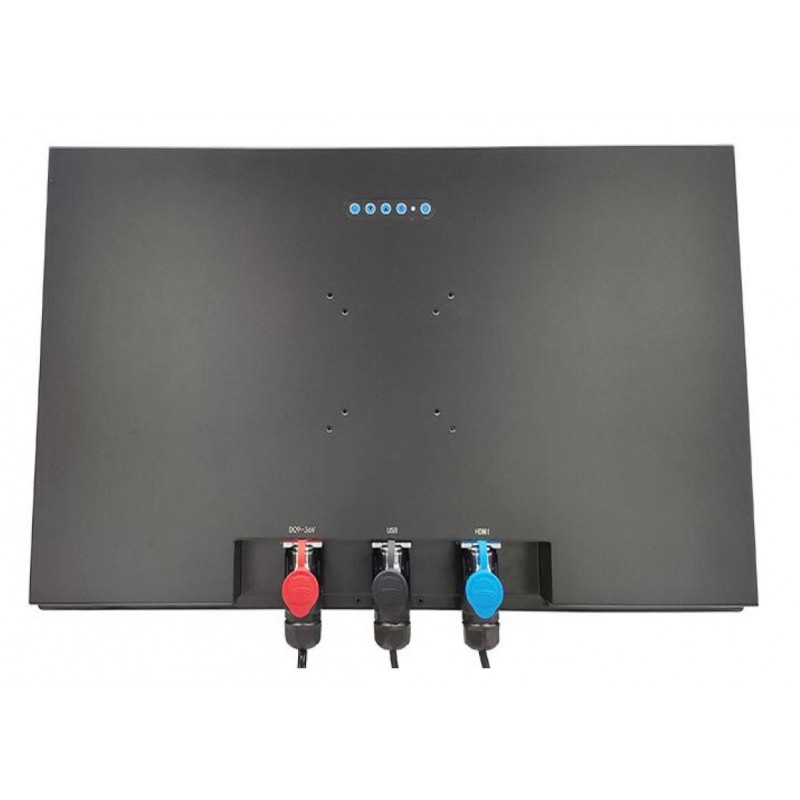

21,5 tommer IP67 LCD-skærm, 1000 nits lysstyrke, berøring, Optical bonding

24" LCD metal monitor, IP66 foran, IP20 bagside
1920 x 1080
300 nits, 5000:1, 16:9
LED backlight
Responstid: 25ms
visnings vinkel: 178°/178°
PCAP Capacitive touch, 4 points
1 x RS-232 (DB9 male)
1 x DVI-D (29-Pin DVI-D female)
1 x VGA (15-Pin D-sub femlae)
1 x RS232/422/485 (software selectable terminal block)
Forsyning: 100 to 240 VAC, 24 VDC (18 to 30 V)
-15 to 55°C (5 to 131°F)
595 x 393 x 75 mm
Vægt: 9,570 g
Desktop, Panel mounting, VESA mounting
Optional: RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Optional: RS-422: Tx+, Tx-, Rx+, Rx-, GND
Optional: RS-485-2w: Data+, Data-, GND
Optional: RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND

19" SXGA LCD-monitor
Opløsning: 1280 x 1024
4:3 format
IP65-front
250 nits
1 x DVI-D
1 x VGA
1 x HDMI
1 x USB resistive Touch
Panel/væg/rack eller VESA montering
Dimensioner: 482 x 55 x 380 mm
AC 230V forsyning
Vægt: 6kg uden pakning/ 7,5kg pakket

17" LCD-monitor
Opløsning: 1280 x 1024
4:3 format
IP65-front
250 nits
USB resistive Touch
1 x DVI-D
1 x VGA
1 x HDMI
1 x USB til touch
Panel/væg/rack eller desktop montering
dimensioner: 410.31 x 58 x 338.31 mm
AC 230V
Vægt: 3.8 kg uden pakning/ 6,56kg pakket

10.1" TFT 1280x800 (16:10)
Frontpanel IP66 standard / IP69K option
Aluminium kabinet
VGA, DVI, HDMI og DP input
Forsyningsspænding: DC 9 ~ 36V
Kontrast: 800:1
Lysstyrke: 350 nits standard / 1000 nits option
Touch via USB: Projected Capacitive standard / Resistive option / ingen touch option
Touch via RS232: option
VESA 100 og panel Mount
Dimensioner: 285 x 189 x 48.9mm
Vægt: 1,9 kg
Driftstemperatur: 0 ~ +50°C standard / -20 ~ +60°C option
