Managed

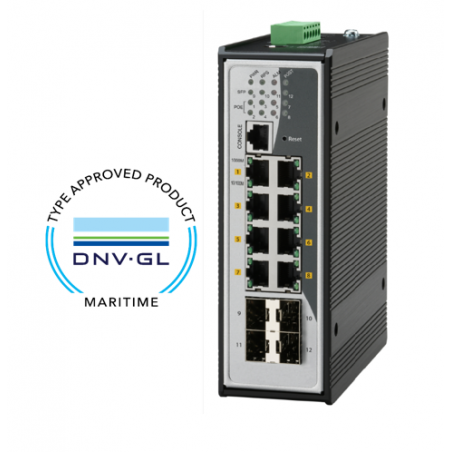

Det Norske Veritas Certified marine network switch DNV GL
Managed 8 port network switch approved for ships
8 x 10/100 / 1000Mbit Auto-MDI / MDIX to 4 x 1000Mbit SFP single mode or multimode
Supply voltage: 12 - 60VDC, 18Watt
Surge rotection, over voltage protection DC input
Dimensions: 162 x 122 x 50 mm
Weight: 860g
Operating temperature: -40 - +75°C
Humidity: 10 - 90% RH (non-condensing)
DIN fittings, metal enclosure

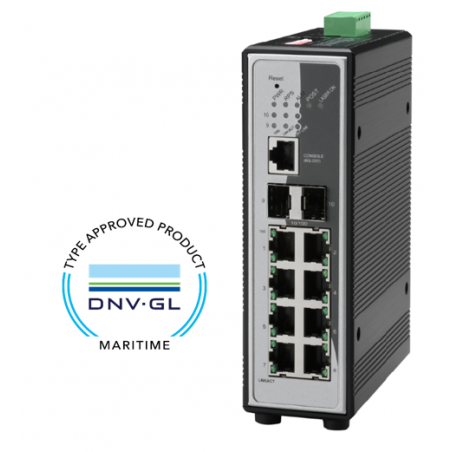

Det Norske Veritas Certified marine network switch DNV GL
Managed 8 port network switch approved for ships
8 x 10 / 100Mbit Auto-MDI / MDIX
2 x 100 / 1000Mbit SFP Single Mode or Multi Mode
Supply voltage: 12 - 60VDC, 12Watt
Polarity protection, over voltage protection at DC input
Dimensions: 162 x 123 x 50 mm
Weight: 780G
Operating temperature: -40 - +75°C
Humidity: 10 - 90% RH (non-condensing)
DIN fittings, metal enclosure

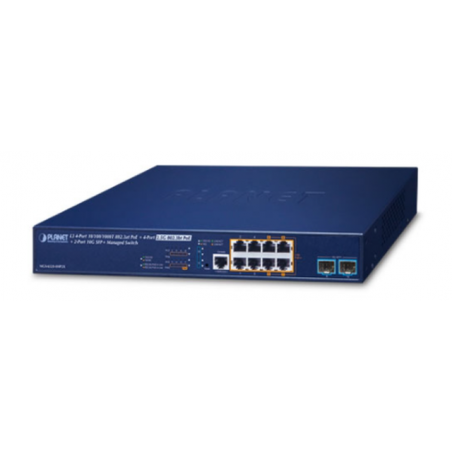

Managed 8 + 2 Ports Gigabit PoE+ Switch
4 x RJ45 ports are up to 2.5Gbps with PoE++ (95W)
4 x RJ45 ports are up to 1Gbps with PoE+ (36W)
PoE Power Budget Is 240 Watts
with PoE insulation
2 x SFP slot for 1G, 2.5G and 10Gbit SFP module
RJ45 type RS232 console interface for switch control
up to 95W to 802.3BT / POH units
Detects automatic PoE Suitable devices (PD)
IGMP Snooping
Link Aggregation
Cyper Security
PoE Up to 100 meters
Dim: 330 x 200 x 45 mm
Supply voltage: 100 - 240vac
