DANBIT offers many different Ethernet switches. We can only show a representative part on our website.
If you cannot find the switch that fits your task, please contact us by email or phone and we will find the one that can solve the task.
The purpose of a network switch (Ethernet switch) is to connect other network devices to each other.
Good and stable network switches are very important communication devices that allow data communication between different network devices locally and the World Wide.
The network switch handles the flow of data across a network, also called back bone, by only sending a received network packet to the one or more devices to which the package is intended.
Each network device connected to a switch can be identified using the network address, the IP address, so that the switch can control the flow of traffic that maximizes network security and efficiency.
There are 2 basic versions of Ethernet switches, the simple ones -managed switches that route data to the ports that the telegrams want. The more advanced Ethernet switches are "managed" switches, where there are a lot of setup options to control and optimize the data flow and, not least, increase data security, also in the context of cyber crime protection. A switch can be built up with up to 7 "layers" which each have their task. For example, layer 3 is for controlling IP multicast (IGMP snooping - for example, video distribution), some router functions, IP routing at VLAN configuration.
The network switch is found everywhere and plays an integrated role in most modern Ethernet local area networks (LANs). Medium and large networks contain a number of managed switches. Small and small systems typically use an un-managed switch or the LAN ports that an Intenet Router is equipped with.
An Ethernet switch can be for both PDS cables (RJ45 cables) and optical fiber cables and many Equipped with ports for both cables.
DANBIT offers a host of different network switches, ranging from PoE Switch to industrial 24-port managed switch with built-in SFP ports. See the great selection here.

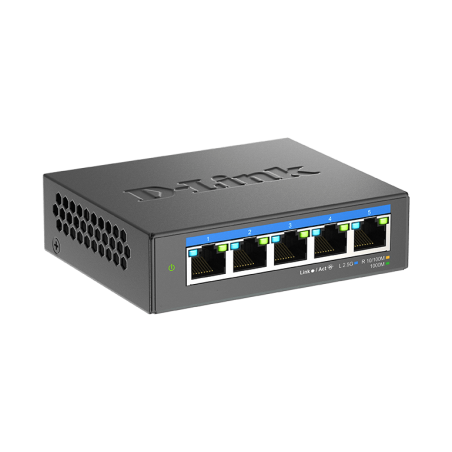

5-Port 2.5G Multi-Gigabit Desktop Switch
5x 2.5Gbps Ethernet ports 25 Gbps switching capacity
Layer 2 unmanaged switch Desktop form factor with metal housing
IGMP Snooping & QoS
flow control Energy-efficient
fanless design
Plug and play installation
Ideal for Wi-Fi 6 applications 802.3az
energy-efficient
Ethernet support Performance varies with conditions
8 + 2 port PoE switch for DIN mounting
Un-managed
8 x 10/100/1000Mbit - RJ45 with auto MDI/MDI-X
PoE+ (30W) - power budget from 60 - 240 Watt
The power budget is determined by the supply voltage
2 x SFP slot 100/1000Mbit fiber port
IP30 metal housing
DIN rail
Redundant Power input
12-54VDC / 7A, redundant, with polarity protection
Standard/extend switch 100/250 meter cable
6000VDC Ethernet ESD protection
Extended temperature -40 to 75°C
IEEE 802.3at
Dimensions: 152 x 106 x 66 mm
8 + 2 port PoE switch for DIN mounting
Un-managed
8 x 10/100/1000Mbit - RJ45 with auto MDI/MDI-X
PoE+ (30W) - power budget is 240 Watt
2 x SFP slot 100/1000Mbit fiber port
IP30 metal housing
DIN rail
Redundant Power input
48-54VDC / 7A, redundant, with polarity protection
Standard/extend switch 100/250 meter cable
6000VDC Ethernet ESD protection
Extended temperature -40 to 75°C
IEEE 802.3at
Dimensions: 152 x 106 x 66 mm
5-Port 10/100/1000BASE-T Gigabit Ethernet Switch
Plug-and-play operation without software installation.
VLAN isolation to prevent multicast or broadcast storms.
10 Gbps bandwidth and 9K jumbo frame support.
Features IEEE 802.3az energy efficient Ethernet standards.
Silent, compact and durable design.
Dimensions: 155 x 86 x 26 mm
Power supply: 5V DC, 1A
8-port 10/100/1000BASE-T Gigabit Ethernet switch.
Plug-and-play operation without software installation.
VLAN isolation to prevent multicast or broadcast storms.
16 Gbps bandwidth and 9K jumbo frame support.
Features IEEE 802.3az energy efficient Ethernet standards.
Silent, compact and durable design.
Dimensions: 168 x 93 x 32 mm.
Power supply: 100-240V AC, 50/60 Hz, 0.2A
5-Port 10/100/1000BASE-T Gigabit Ethernet Switch
Plug-and-play operation without software installation.
IEEE 802.1p and DSCP-based QoS for prioritizing critical applications.
10 Gbps bandwidth and jumbo frame support up to 9K.
Complies with the IEEE 802.3az Energy Efficient Ethernet standard and has a silent, fanless design.
Metal housing with MTBF of 52 years.
Dimensions: 94 x 100 x 27 mm
Power supply: 12V DC, 0.5A (6W)
Managed Industrial switch for harsh environments
Cybersecurity SSHv2/TLSv1.2
Ethernet Ring Protection
e-Mark Certified (vehicles/ITS)
Can support 2.5Gbit SFP module

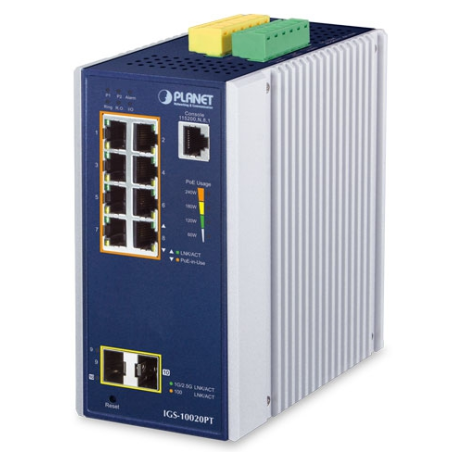

8 port industrial Gigabit switch, RJ45 with PoE+
Intelligent PoE
2-port SFP 100/1000/2500Mbps
Supply voltage: 48-54VDC
PoE power budget: 240W
Redundant power supply connection
IGMP snooping, MLD snooping
IEEE 1588 Time synchronization protocol
ONVIF - discovery / Floor Map
Modbus TCP real-time (SCADA)
Extended temperature range from -40 to +75 °C
DIN rail or wall mounting
Dimensions: 152 x 107 x 77 mm
Compact 5 port Ethernet switch for 100Mbps
Not Managed
Very economical: max. 2 Watt
Supply voltage: 12 - 48VDC
Can also be powered with 24VDC
With redundant voltage input
Dimensions: 104 x 70 x 30 mm
Weight: 255 grams
IP30, metal housing
DIN bracket
4 port PoE pass through - 10/100/1000Mbit
1 x RJ45 PoE in (data + PoE++) - 95 Watt
Mid-span and End-span
4 x RJ45 PoE out (data + PoE+) - 30 Watt
PoE out pin: +1/2, -3/6
PoE output power, total is max. 75 Watt
PoE input voltage 50 - 57VDC
Temperature: -40 - +75°C
Dimensions: 135 x 88 x 32 mm
Your bracket
16 RJ45 Ethernet ports
10/100/1000 Mbps with auto-adjusting MDI/MDI-X
DIN-rail and wall-mounting
Metal enclosure rated at IP30
Dual power input for redundancy
8K MAC address table
Working tempeture -40 to 75 C degrees
12 to 48VDC input
4 x 10/100/1G/2.5GBASE-T RJ45 copper ports
2 x 10GBASE-SR/LR SFP+ slots, compatible with 1G/2.5GBASE-X SFP
1 x RJ45-to-RS232 console interface for basic management and setup
DC 9 to 48V input or AC 24V input
DIN-rail and wall-mountable designs
IP30 aluminum case
Temperature -40 to +75 degrees C
2 x digital input (DI)
2 x digital output (DO)
Integrates sensors into auto alarm system
Transfers alarm to IP network via email and SNMP trap
IPv4 dynamic routing protocol supports RIPv2 and OSPFv2
IPv6 dynamic routing protocol supports OSPFv3
IPv4/IPv6 hardware static routing
Supports G.8032 ERPS (Ethernet Ring Protection Switching)
IEEE 1588v2 PTP (Precision Time Protocol) transparent clock mode
Supports IPv4 IGMP snooping v1, v2 and v3
Supports IPv6 MLD snooping v1 and v2
Switch Management Interfaces
SNMP Management
Managed Gigabit switch 2 x RJ45, 2 x Fiber
4 x RJ45 10/100/1000Mbps
2 x SFP 100/1000Mbps
Support ERPS (Ring protection)
IGMP/MLD Snooping (IPv4, IPv6)
Up to 256 VLAN groups
Support Cisco ether-channel (Static Trunk)
Port mirroring - up to 4 sessions
Supply voltage: 9 - 48VDC, 24VAC
Size: 135 x 88 x 32 mm
Temperature: -40 to +75°C
DIN-mounting
4x 30W 56VDC IEEE802.3at PoE port
1x 56/24VDC PoE port
1x SFP Port
2x 48-56VDC Indgang
Driftstemperatur -40°C - 75°C
10/100/1000Mbps Data Rates
Total Power Budget 120W
Compact design
Output 54VDC vlotage for PoE device use
Space for PoE switch / PoE Surge protector installation
IP66 rated
Include Thermal Switch control heater and blower
Include fiber panel for fiber cable connection
Battery protection for deep discharge and short circuit
Space for 12V/7Ah Battery x 4PCS
Managed 8 + 2 Ports Gigabit PoE+ Switch
4 x RJ45 ports are up to 2.5Gbps with PoE++ (95W)
4 x RJ45 ports are up to 1Gbps with PoE+ (36W)
PoE Power Budget Is 240 Watts
with PoE insulation
2 x SFP slot for 1G, 2.5G and 10Gbit SFP module
RJ45 type RS232 console interface for switch control
up to 95W to 802.3BT / POH units
Detects automatic PoE Suitable devices (PD)
IGMP Snooping
Link Aggregation
Cyper Security
PoE Up to 100 meters
Dim: 330 x 200 x 45 mm
Supply voltage: 100 - 240vac
Demo Item - Without Packaging or Accessories
Korenix Jetnet 5010g
7 x 10/100 RJ45 Ethernet
3 x 10/100/1000 RJ45 Ethernet / SFP Combo Ports (10/100 / 1000 Base- T, 100 base-eg, 1000 base-x)
supply voltage: 10.5 ~ 60 VDC
Operating temperature: -25 ~ 70 ° C
Unmanaged Switch
4 x RJ45 PoE++ port 10/100/1000Mbit
2 x 100/1000X SFP port
PoE standard: IEEE 802.3bt
Total PoE power budget: 250W
4x60W PoE OR 2x90W PoE+2x30W
IP67, IK10
Operating temperature: -40°C ~ 65°C
Option: PoH standard 100W per gate
Unmanaged Switch
2 x RJ45 port 10/100/1000Mbit
2 x 100/1000X SFP-port
Samlet PoE effektbudget: 120W
2x60W PoE ELLER 1x90W PoE+1x30W
PoE standart: IEEE 802.3bt
IP67, IK10
Driftstemperatur: -40°C ~ 65°C
Option: PoH 100W / Managed
Managed 10/100/1000Mbit Robust Industrial Switch
Vibration Safe and dust proof
M12 5 Pin Coded connector
with automatic Bypass for next switch if failure
IEEE 1588v2 Precision Time Protocol (PTP)
PTP is time synchronization in infrastructure
Modbus TCP/IP to SCADA
SMTP / SNMP Trap - generates Email Alarm
IGMP and MLD Snooping for Multicast
VLAN Routing (Layer 3)
CyperSecurity Minimizes safety risk / attacks
Redundant Ring, Fast Recovery
Supply voltage: 9 - 48VDC Redundant Input
Dim: 245 x 140 x 25 mm
Operating temperature: -40 - +75°C
DIN bracket , wall bracket
Weight: 1kg
