6 ports managed switch 4 x RJ45 10/100/1000Mbps, 2 x 100/1000Mbps SFP slot. Redundant Ring. 9-48VDC, 24VAC

Managed Gigabit switch 2 x RJ45, 2 x Fiber
4 x RJ45 10/100/1000Mbps
2 x SFP 100/1000Mbps
Support ERPS (Ring protection)
IGMP/MLD Snooping (IPv4, IPv6)
Up to 256 VLAN groups
Support Cisco ether-channel (Static Trunk)
Port mirroring - up to 4 sessions
Supply voltage: 9 - 48VDC, 24VAC
Size: 135 x 88 x 32 mm
Temperature: -40 to +75°C
DIN-mounting

ESW4SFP2-S
2,880.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

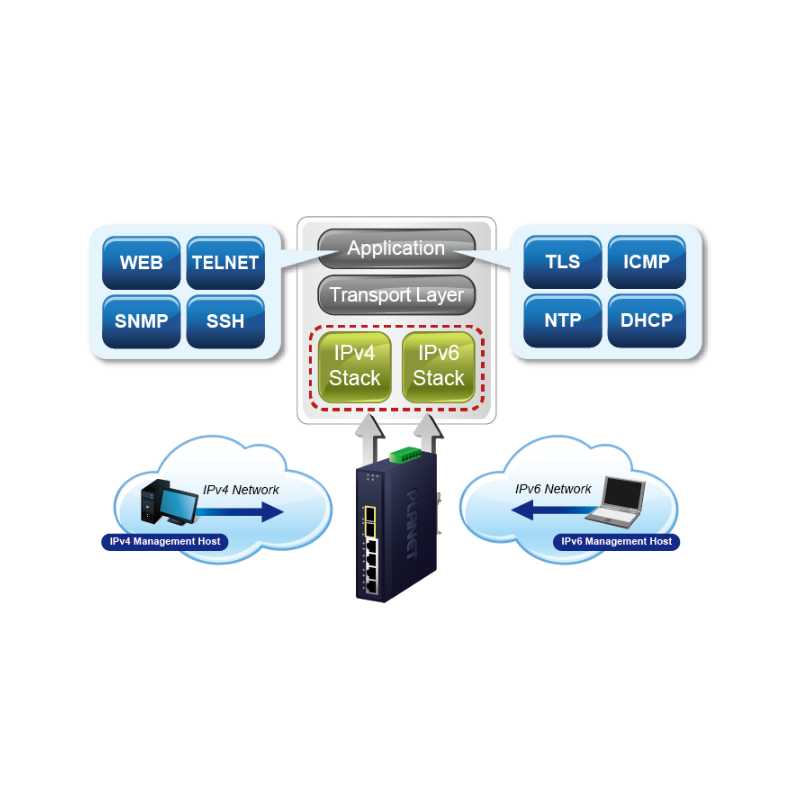

Robustly Designed switch for Critical Business Applications. Designed to be installed in heavy industrial demanding environments, the switch is Industrial-grade, DIN-rail type L2/L4 Managed Gigabit Switch family to improve the availability of critical business applications. It provides IPv6/IPv4 dual stack management and built-in L2/L4 Gigabit switching engine along with 4 x 10/100/1000BASE-T ports, and 2 extra 100/1000BASE-X SFP fiber ports for data and video uplink. The switch is able to operate reliably, stably and quietly in any hardened environment without affecting its performance. It comes with operating temperature ranging from -40 to 75 degrees C in a rugged IP30 metal housing.

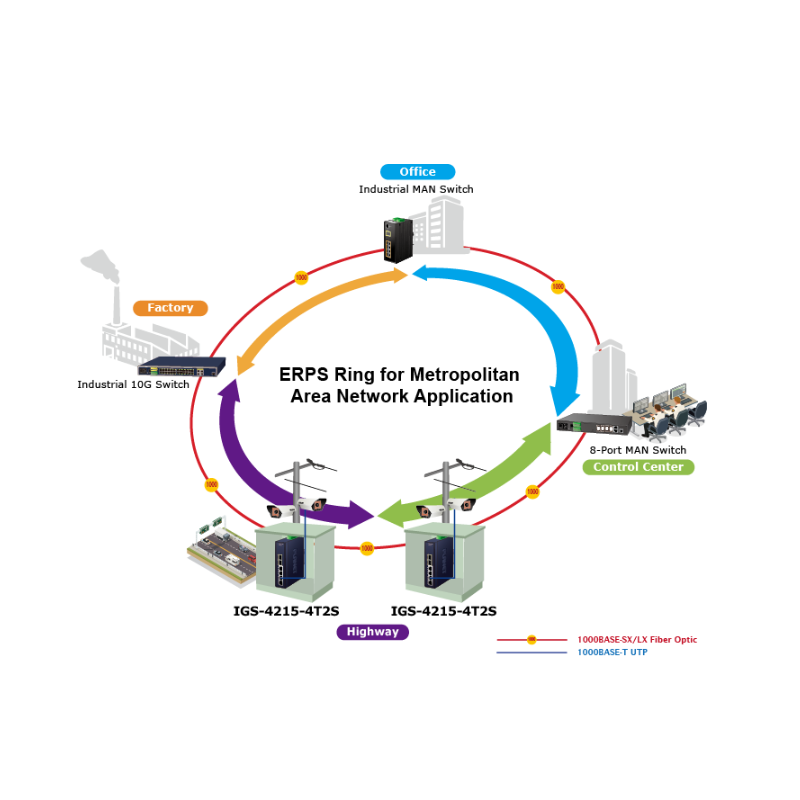

The switch supports Redundant Ring Technology and features strong rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In certain simple Ring network, the recovery time of data link can be as fast as <450ms.
