5 ports MOXA EDS-205 switch 10 / 100Mbit RJ45, DIN - Unmanaged, 12-48VDC, 18-30VAC
5 ports Unmanaged switch - MOXA EDS-205
10/100Mbit RJ45
Broadcast storm protection
DIN-skinne
-10 to 60°C driftstemperatur
Unmanaged 5 ports industriswitch
4 x RJ45 10/100Mbit
1 x ST fiber 100Mbit Multi Mode
IP50

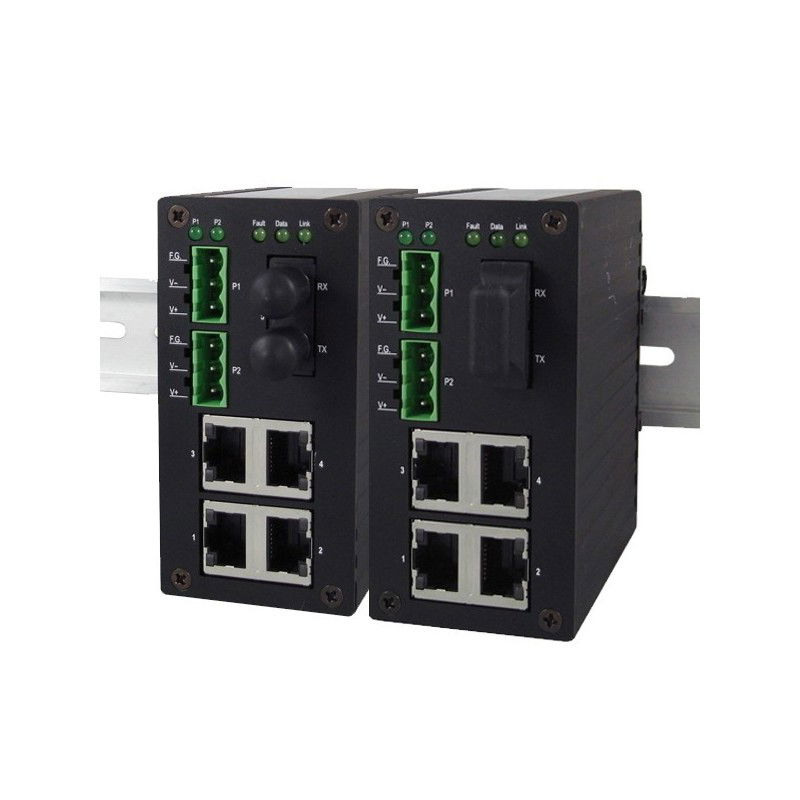

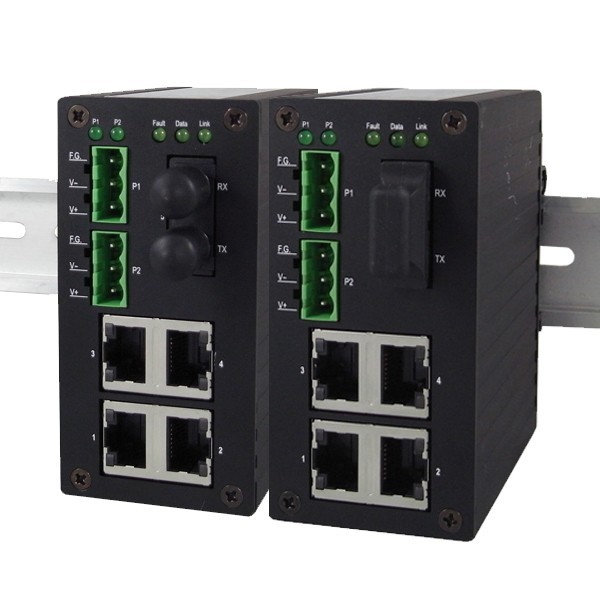

5-ports 10/100 Mbit Ethernet industriswitch.
Kobber- og fiberkabel. Mulighed for stort temperaturområde.
Industri Ethernet switch til DIN-skinne montering. Switchen har én multimode fiberport og 4 x 10/100 Mbit twisted pair RJ45 kobberporte. Med fiberportene kan switchen placeres langt fra hinanden; op til 2 km med multimode fibre. Switchen er beskyttet mod støv, har stort temperaturområde og redundant strømforsyningsindgang og er dermed ideel til anvendelse i barske produktionsmiljøer, hvor nettets driftssikkerhed er vigtig for produktionens virke.
Multimode switchen har ST stik.
5 ports Unmanaged switch - MOXA EDS-205
10/100Mbit RJ45
Broadcast storm protection
DIN-skinne
-10 to 60°C driftstemperatur
5 x 10/100 / 1000Mbit RJ-45 with 4 ports with PoE +
PoE + is 30.8 Watt. PoE max 134 watts, end-span
Auto detects PoE equipment and protects against damage by non-PoE equipment
PoE up to 100 meters
Layer 2 switch with auto-negotiation
IP30 aluminum metal cabinet, DIN Fittings
DIN Rail and Wall Mount
48V DC Redundant Power Input
EFT Protection Up to 6kV for Power Line
6kV Protection on Ethernet Port
-40 to + 75 ° C & nbsp;
Unmanaged 5 port Ethernet switch
5 x 10/100/1000Mbit, RJ45
Operating temperature: -40 - +70 °C
10 - 30VDC
5 port 10/100/1000 Switch with 4 poE ports
4 x PoE RJ45
1 x Uplink RJ45
& lt; 8W per PoE & Ethernet standard: IEEE802.3, IEEE 802.3u , IEEE802.3ab, IEEE802.3af / at
Power Supply: DC48V - 53V
