There are 5 products.

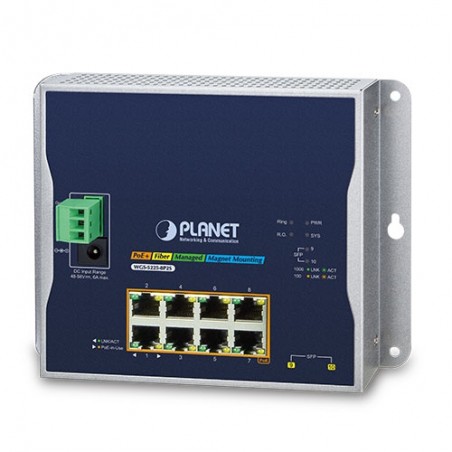

8 port Managed switch 8 x 10/100/1000Mbit RJ45. Fiber 2 x 100/1000Mbit SFP. PoE+

Managed switch with Gigabit ports
8 x 10/100 / 1000BASE-T RJ45 ports with PoE +
Up to 36 watts for each PoE port
Total PoE power is 240Watt
2 x 100 / 1000BASE-X mini-GBIC / SFP
IGMP Snooping (Multicast)
Operating temperature: -20°C to 70°C
Can be wall mounted, magnetic wall mounted or DIN rail mounted
Supply voltage: 48-58DCV 5.7A max input (PSU not included)
Dimensions: 180 x 140 x 24.4mm
Weight: 686 grams

$541.97
Item number ESW8G-M-SFP2-PWM
Physically in stock
8 ports Managed switch, 4 x 1 Gigabit og 4 x 2.5Gbit RJ45, 2 x SFP 1/2.5/10Gbit. PoE+/++

Managed 8 + 2 Ports Gigabit PoE+ Switch
4 x RJ45 ports are up to 2.5Gbps with PoE++ (95W)
4 x RJ45 ports are up to 1Gbps with PoE+ (36W)
PoE Power Budget Is 240 Watts
with PoE insulation
2 x SFP slot for 1G, 2.5G and 10Gbit SFP module
RJ45 type RS232 console interface for switch control
up to 95W to 802.3BT / POH units
Detects automatic PoE Suitable devices (PD)
IGMP Snooping
Link Aggregation
Cyper Security
PoE Up to 100 meters
Dim: 330 x 200 x 45 mm
Supply voltage: 100 - 240vac

Call +45 56 66 20 20 for price
Item number ESW8G-M-SFP2-10GP+
On the way in

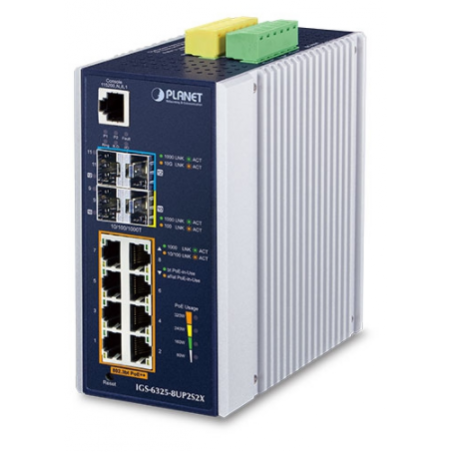

8 port 10/100 / 1000Mbit RJ45, PoE ++ 2 port 100 / 1000Mbit and 2 port 10Gbit SFP slot, Managed

Managed PoE Switch with 8 RJ45 and 4 SFP slot
8 x 10/100 / 1000Mbit with PoE ++ (95Watt)
PoE power budget is 360Watt (45Watt per port)
PoE utvidga mode - max. 160 - 200meter
2 x 100 / 1000Mbit SFP slot - for Single- and Multimode SFP module
2 x 10Gbit SFP slot
2 x Digital input
2 x Digital outputs (Open Collector)
IGMP Snooping Seite 128 VLAN interfaces
IEEE 1588v2 Precision Time Protocol (time syncronising)
Operating temperature: -40 - + 75 ° C
Dimensions: 152 x 108 x 77 mm
Weight: 1, 2kg
Supply voltage: 48 - 56VDC (recommended min. 52VDC) 8amp

Call +45 56 66 20 20 for price
Item number ESW8G-M-SFP4P+
On the way in
Managed Switch with 8 RJ45 PoE+ Porte, 1 and 2.5Gbit SFP. Top class switch.

8 x 10/100 / 1000BASE-T RJ45 Auto-MDI / MDIX Ports
2 x 1000BASE-SX / LX / BX SFP Interface
8 POE Injector Ports with 802.3ay / of
PoE Standard 802.3at
60GB non-blocking
32Mbits Data buffer
IEEE 802.3X pause frame for duplex
IP30 aluminum
Din rail kit and wall mounting
Alarm relay 1A, 24V DC
2 x Digital output (DI)
2 x Digital output (DO) 24v DC, 100mA max
Dimensions: 72 x 107 x 152mm
Weight: 1684g & nbsp;
Supply: 48-56 V DC

Call +45 56 66 20 20 for price
Item number ESW8G-M-SFP4P
On the way in

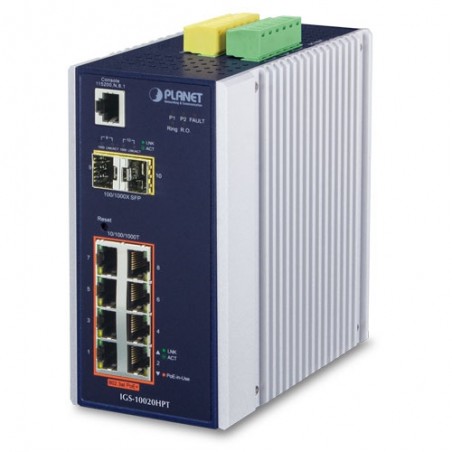

8 port Gigabit managed switch. PoE+ and 2 fiber ports for 100/1000/2500Mbit SFP fiber module

Managed Industry switch to harsh environment
Cybersecurity SSHv2/TLSv1.2
Ethernet Ring Protection
e-Mark Certified (vehicles/ITS)
Can support 2.5Gbit SFP module
8 port industrial Gigabit switch, RJ45 with PoE+
Intelligent PoE
2 port SFP 100/1000/2500Mbps
Supply voltage: 12 - 48VDC / 7A
PoE power budget: 60W at 12V, 120W at 24V, 240W at 48V
Redundant power supply connection
IGMP snooping, MLD snooping
IEEE 1588 Time synchronization protocol
Modbus TCP real time (SCADA)
Extended temperature range from -40 to +75 °C
DIN rail or wall mounting
Dimensions: 152 x 107 x 77 mm

$802.42
Item number ESW8G-M-SFP2
Physically in stock
Showing 1-5 of 5 item(s)
