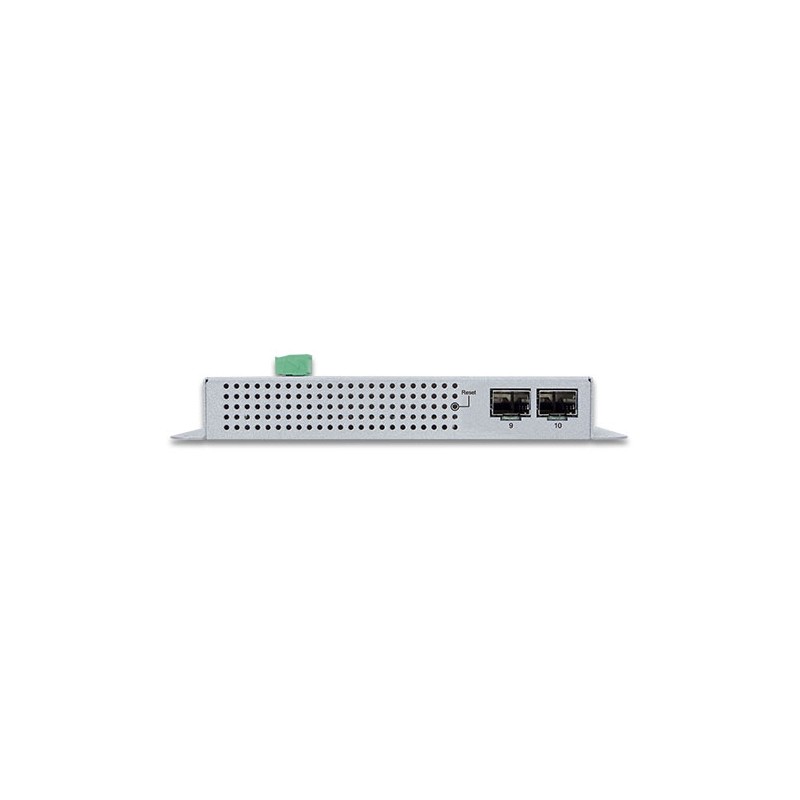

8 port Managed switch 8 x 10/100/1000Mbit RJ45. Fiber 2 x 100/1000Mbit SFP slot, PoE+, Wall mountable, magnets, 48-57VDC

Managed switch with Gigabit ports
8 x 10/100 / 1000BASE-T RJ45 ports with PoE +
Up to 36 watts for each PoE port
Total PoE power is 240Watt
2 x 100 / 1000BASE-X mini-GBIC / SFP
IGMP Snooping (Multicast)
Operating temperature: -20°C to 70°C
Can be wall mounted, magnetic wall mounted or DIN rail mounted
Supply voltage: 48-58DCV 5.7A max input (PSU not included)
Dimensions: 180 x 140 x 24.4mm
Weight: 686 grams

ESW8G-M-SFP2-PWM
3,702.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

ESW8G-M-SFP2-PWM is an industrial wall-mounted PoE Managed Switch with LCD Touch Screen with PLANET intelligent PoE functions to improve the availability of industrial applications. It provides IPv6/IPv4 dual stack management and built-in L2+/L4 Gigabit switching engine along with eight 10/100/1000BASE-T ports with 36 watt PoE and two additional 1000BASE-X SFP ports. With a total power budget of up to 240 watts for various types of PoE applications, and with network speed and operating temperature from -20 to 70 °C in a compact but robust IP30 metal housing.

Dimensioner
180 x 140 x 24,4mm
Driftstemperatur
-20 - + 70°C
Installation
Vægmontering og med magneter mod metalflade, DIN-Kit
IP-Tæthed
IP30
Luftfugtighed
5 - 95% ikke kondenserende
PoE
8 x PoE+ 802.3at/af PoE injector
Porte
8 x RJ45 Gigabit PoE+, 2 x Gigabit SFP slot
Strømtilslutning
Redundant 48 - 56VDC, 8Amp
Weight
686g
