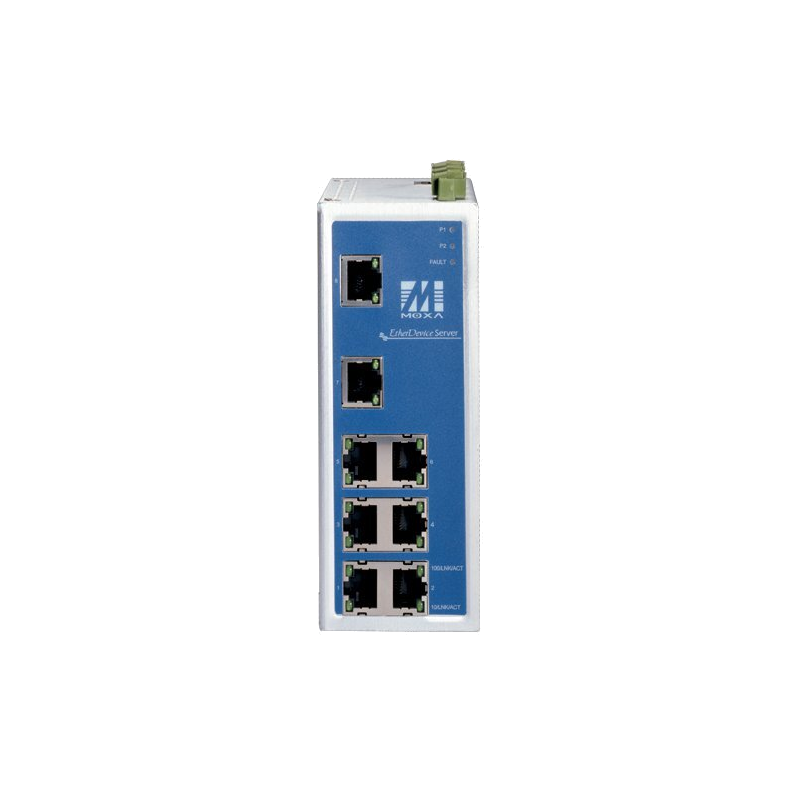

Moxa Industrial Managed Switch ED6008
Specifications
Interface
RJ45 Ports 10 / 100BaseT (X) auto negotiation speed, F / H duplex mode , and auto MDI / MDI-X connection
LED Indicators Power, Faults, ACT, LNK, 10/100
Alarm Contact One relay output, current carrying capacity of 1A @ 24 VDC
Technology
Standard IEEE802.3, 802.3u, 802.3x, 802.1D
Forward and Filtering Rate 148810 pps
Packet Buffer Memory 256 KB
Processing type Store and Forward, with IEEE802.3x full duplex, Italy non-blocking flow control
Address Table Size 4K uni-cast addresses
Latency Less than 5 uS
Management SNMP V1.2c, MIB-II , Ethernet-like MIB,
