PoE++ extender / Extender PD over Cat6 and up, up to 200 meters, PoE++ in and 4 x PoE+ out

4 port PoE pass through - 10/100/1000Mbit
1 x RJ45 PoE in (data + PoE++) - 95 Watt
Mid-span and End-span
4 x RJ45 PoE out (data + PoE+) - 30 Watt
PoE out pin: +1/2, -3/6
PoE output power, total is max. 75 Watt
PoE input voltage 50 - 57VDC
Temperature: -40 - +75°C
Dimensions: 135 x 88 x 32 mm
Your bracket

ETH-POE-BOOST-4G+
1,654.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

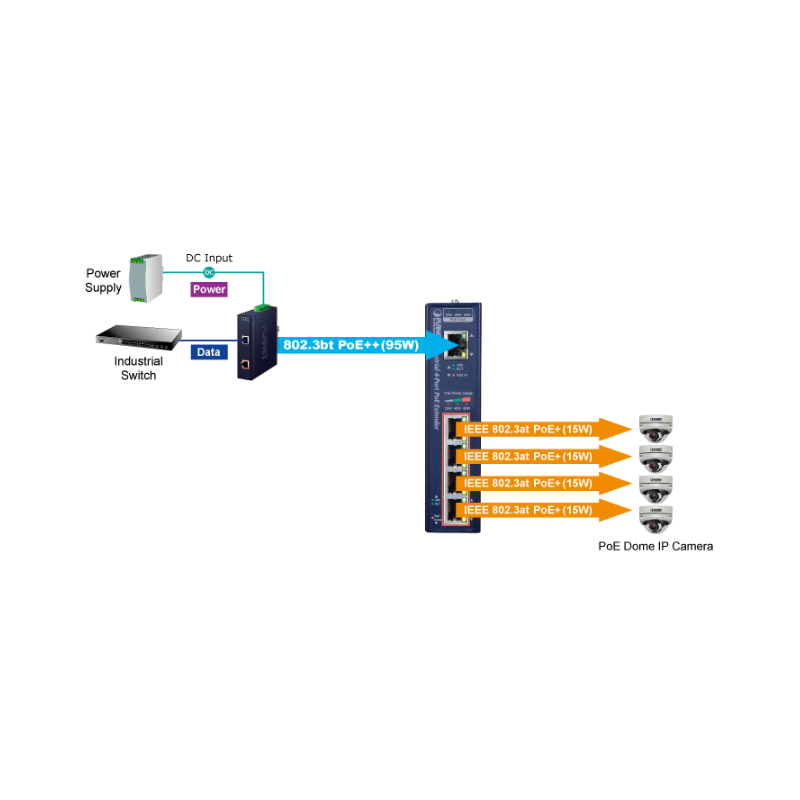

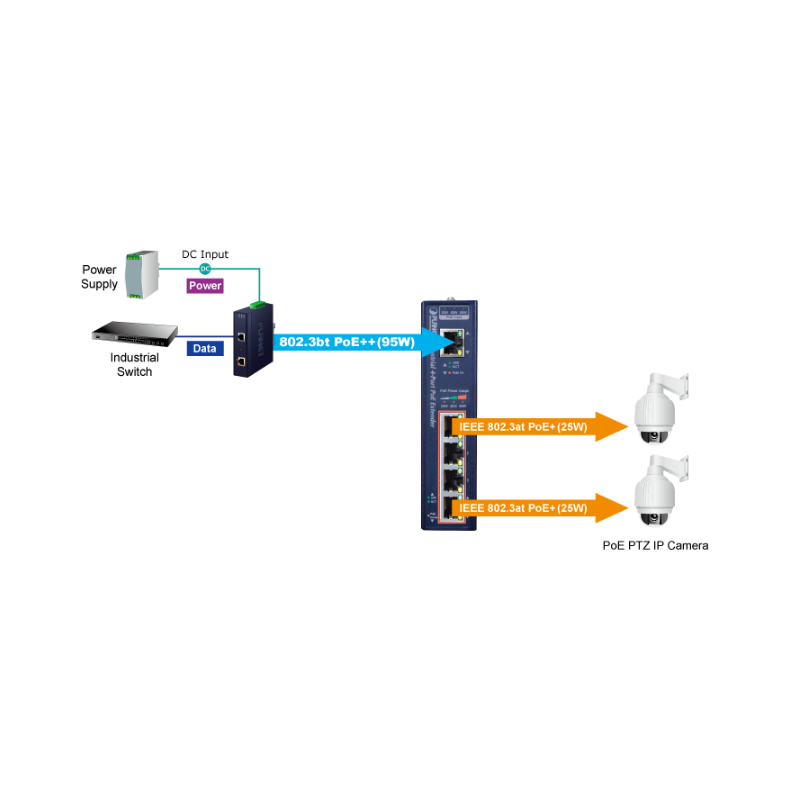

It is an industrial 1-Port 802.3bt PoE++ to 4-Port 802.3af/at Gigabit PoE Extender designed specifically for point to multi-point PoE application. One can achieve a maximum of 95 watts of PoE power from 802.3bt PoE++ input port and delivers a maximum of 75-watt PoE power budget to 4 PoE output ports, extending both the range of Gigabit Ethernet Data and IEEE 802.3at Power over Ethernet beyond the standard 100 m (328 ft.) Cat. 5/5e/6 UTP cable for 200m where up to 4 powered devices (PDs) can be powered at the same time. It is a simple solution to add PoE ports without running more cables and achieves more flexible network applications without requiring an external power adapter.
