PoE Extender, IP66 tight 100/1000Mbit RJ45, 100 meters, up to 22W. Max. 4 pieces in series - total 500 meters

For harsh industrial and outdoor environments.
Voltage over Ethernet - PoE - no external voltage source
Extend a PoE voltage and data signal up to 100m
PoE output power: up to 22Watt
Over a single CAT 6 cable (STP cables are recommended).
Cascade: Maximum 4 ETH-BOOST-POE-1G-U units in extension
Extends the distance up to 500m
IP66

1,392.00 kr
Excl. VAT
Quantity
Physically in stock
ADD TO CART
Product number ETH-POE-BOOST-1G-U
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Operating Temp. -25 til 55°C
Mål og vægt 18.5x5.5x5.5cm
Signaler IEEE802.3af og IEEE802.3at godkendt<br>op til 100m
Certifications CE, FCC, RoHS

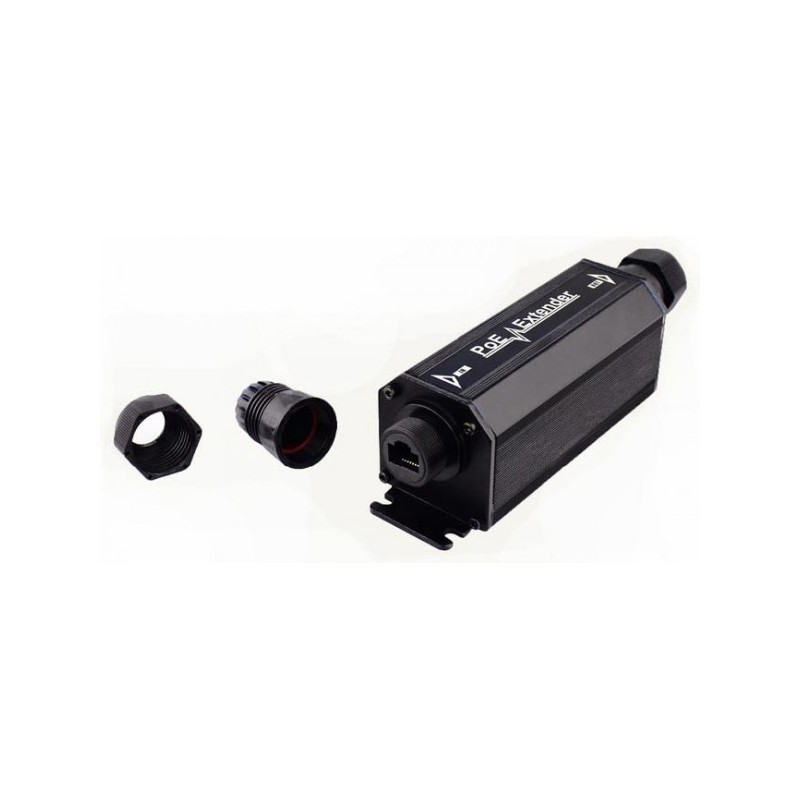

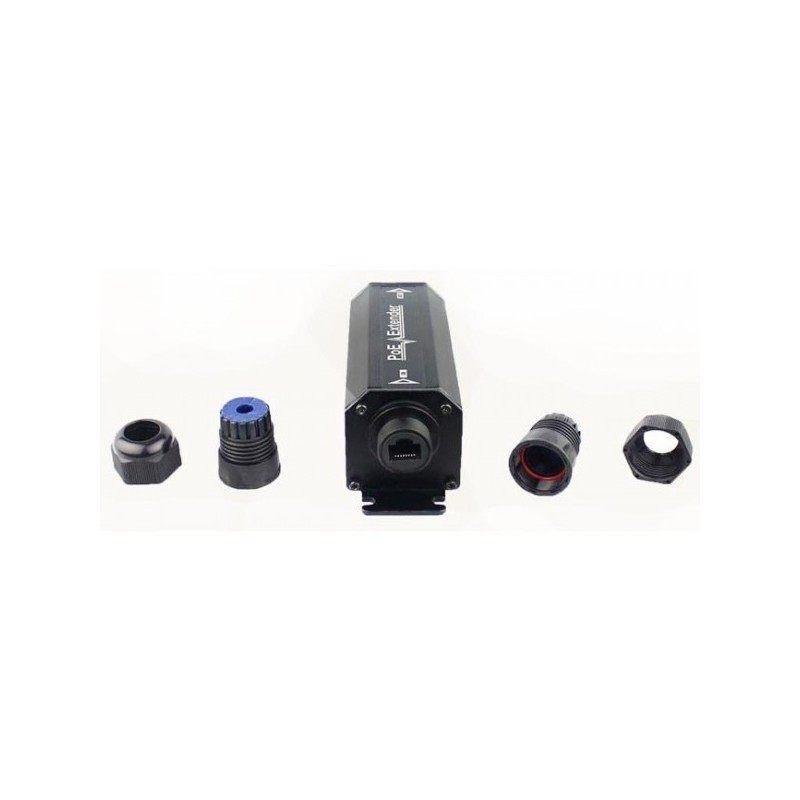

Waterproof PoE Extender.
Use the waterproof ETH-BOOST-POE+ Power over Ethernet Extender to extend a PoE signal up to 100m in harsh environments. Ideal for WiFi Access Points, IP phones, surveillance cameras and kiosks where a power connection is not available.
Plug and Play. No settings.

RJ45 EIA 568A and B
