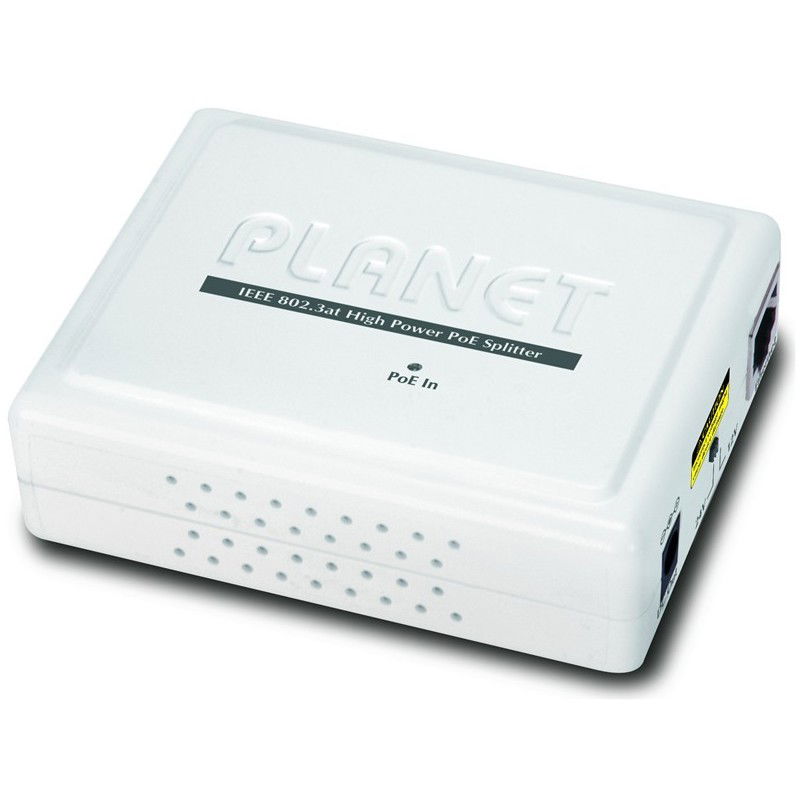

Poe splitter with 12 or 24 volts out, max. 25 watts. Data + PoE in. Data out. Voltage out

Splitter for PoE via Ethernet cable
LAN with PoE in, gives LAN without PoE out
12 VDC 2A or 24 VDC 1A next to other equipment

ETH-POE12-24
476.19 NOK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

12/24 V POE Splitter.

Use the network cable as voltage source for network equipment without PoE.

With this splitter avoids separate power supplies for Access Points, surveillance cameras and other network equipment without PoE Support. By using a PoE switch or an "injector" you can settle for a single network cable that both transfers data and voltage between the switch and the connected network equipment. The splitter has two outputs - one for transferring data via network cable and a DC voltage output to supply the connected equipment.

Standarder
Overholder IEEE802.3at PoE standarden samt IEEE802.3 / 3u / 3ab 10/100/1000 Base-T
Stik
1 x RJ45 til indgående strøm og data, 1 x RJ45 til udgående data, 1 x DC hun 2,5/5,5 mm til udgående spænding
Strømforsyning
Strømforsynes af PoE (52 ~ 56 VDC) ETH-POE12-24 giver enten 12 volt 2A eller 24 volt 1A. 12 eller 24 volt vælges via DIP switch
Tilbehør
Leveres med DC/DC kabel på 10 cm med 2,5/5,5 mm og 2,5/5,5 mm DC-stik. Samt netværkskabel på 10 cm til at sætte imellem splitter og udstyret. Op til 100 meter mellem PoE switch og tilsluttet udstyr
Udgangsspænding
12 volt 2A eller 24 volt 1A. 12 eller 24 volt vælges via DIP switch
Understøtter
10/100/1000 Mbit Base-T

4 other products in the same category:

IP67 Gigabit PoE++ injector...

IP67 Gigabit PoE++ injector (60W) PoE + Data. POE conversion e.g. 24 -56VDC input

IP67 and IK10 Gbit PoE injector for outdoor mounting
PoE++ (60W) injector for PoE equipment
1 x RJ45 port for PoE++ out Data+PoE
1 x RJ45 port Data in
1 x Phoenix connector for the input voltage
DC24V 72W input
DC36V 71W input
DC54V 66W input
PoE standard: IEEE 802.3at/bt (PoE++)
PoE out Mid-span / End-span
Operating temperature: -40 - +75°C
Wall bracket
Dimensions: 170 x 73 x 44 mm
Weight: 425

Price 1,888.89 NOK
Product code: ETH-POE++INJ-WP
Physically in stock
Quick view

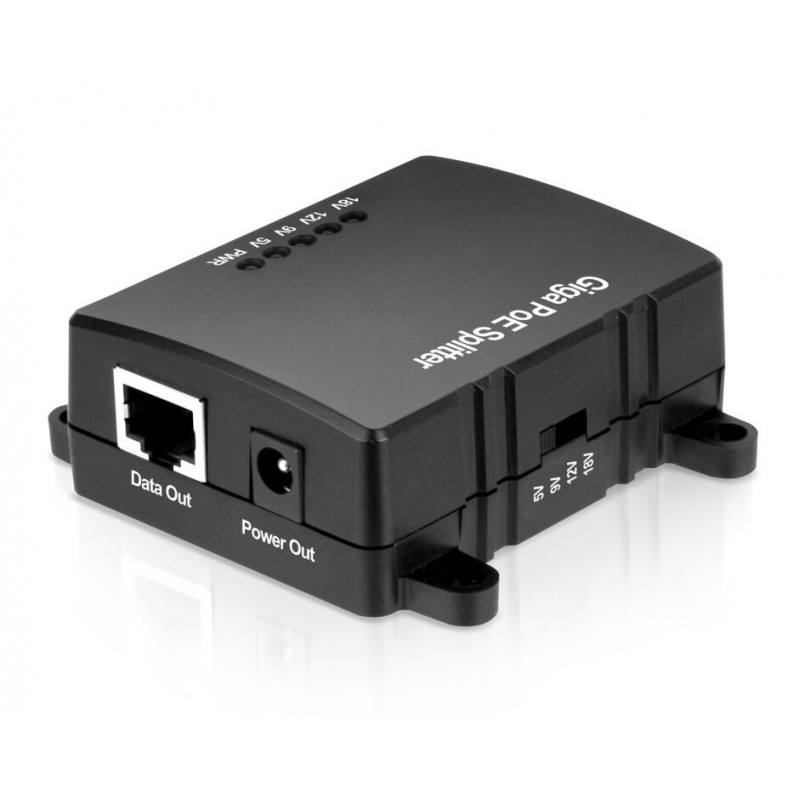

PoE Splitter RJ45, 5V/3A,...
