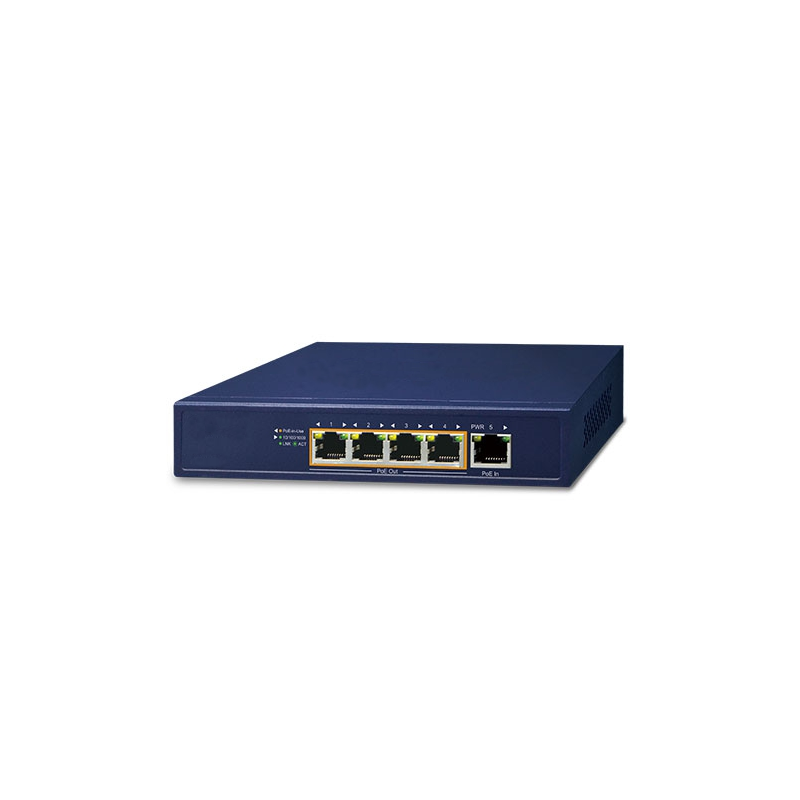

PoE++ extender / Extender over CAT. 5/6/7/8, Up to 200 meters, 4 PoE+ outputs

10/100/1000Mbit network extender / PoE splitter
1 x PoE input (PD) PoE++ 95W
4 x PoE outputs (PSE) PoE+ 32W
Up to 32W per PoE port, 65W total power budget (see specifications)
Extend the network cable over the maximum 100 meters for PoE solutions
Extenders are powered by PoE and pass PoE on to the next extender
Dimensions: 168 x 93 x 32 mm, Weight: 403g

ETH-POE-BOOST-4G
1,150.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

ETH-POE-BOOST-4G extends Power over Ethernet installations by a total of 200 meters.

It is a cost-effective way to extend the Ethernet network range beyond 100m, and supplies both data and power to network devices such as WLAN Access Points and network cameras up to 200m, while complying with IEEE 802.3at/of PoE and Gigabit Ethernet Data standards.

PoE Extender supports 10/100/1000Mbps data rate and delivers 802.3 at power levels up to 32W per port (65W total). The PoE Extender does not require local power and is powered via the PoE input.

Approval
FCC Part 15 Class A, CE
Driftstemperatur
0 ~ +50°C
Indgang
1 x PoE input (PD) PoE++ 95W
Montering
Desktop/Wall mountable
PoE
65 watts (max.) @ IEEE 802.3bt PoE++ Type 4 PSE input. 32 watts (max.) @ IEEE 802.3at PoE+ input
Standarder
IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus IEEE 802.3x Flow Control
Strømforbrug
0.9 watts/3.1BTU (System on) 74 watts/252.4BTU (Full loading with PoE function)
Udgange
4 x PoE Outputs (PSE) PoE+ 32W
Weight
403g
