PoE Extender up to 500 meters

Max speed 100Mbps

Automatic speed control

Consists of Local and Remote Module

The connection is Coax cable

Local module powered from PoE source or DC input

DC input: 48-56VDC

PoE power: 30 Watts

Dimensions: See drawings

Temperature: -20 - +60°C

4 port PoE pass through - 10/100/1000Mbit
1 x RJ45 PoE in (data + PoE++) - 95 Watt
Mid-span and End-span
4 x RJ45 PoE out (data + PoE+) - 30 Watt
PoE out pin: +1/2, -3/6
PoE output power, total is max. 75 Watt
PoE input voltage 50 - 57VDC
Temperature: -40 - +75°C
Dimensions: 135 x 88 x 32 mm
Your bracket

10/100 / 1000Mbit PoE Network Extender
Extend the network cable with PoE over the magic 100 meters
Extenders are powered from PoE and pass PoE on to the next Extender
Dimensions: 94 x 70 x 26 mm

PoE In: Max 95 Watts

PoE Out: Max 65 Watts
Weight: 189g

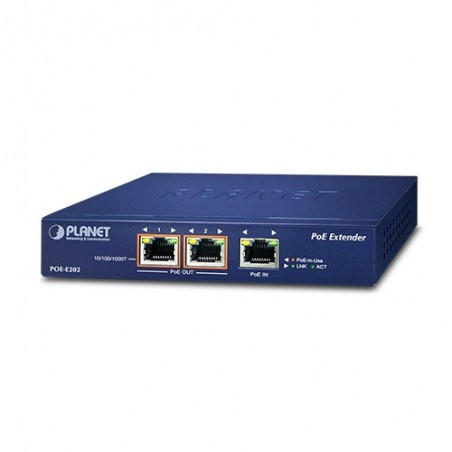

Gigabit PoE and Data Extender / splitter
1 x RJ45 data + PoE + input
2 x RJ45 data + PoE + outputs
Standard: IEEE 802.3af and 802.3at
From Injector to Extender up to 100 meters
From Extender out to PD devices up to 100 meters
Wall mounting
Plug & Play
Temperature range: 0- + 50 ° C
Dimensions: 140 x 77 x 28 mm
Weight: 234g

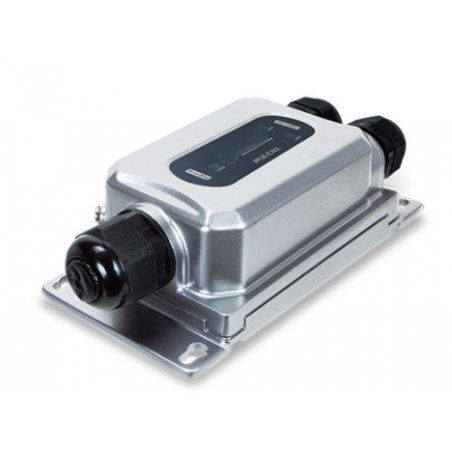

Gigabit PoE and data Extender PoE splitter
1 x RJ45 Data + PoE ++ input
2 x RJ45 Data + PoE + outputs
Standard: IEEE 802.3bt and 802.3at
from injector to Extender up to 100 meters
from Extender to PD Devices Up to 100 meters
IP67 Aluminum Molded cabinet
Temperature range: -40 - + 75 ° C
Plug Play
Wall fittings
Size: 170 X 44 x 73 mm with cable gland

Quick and Easy PoE tester
IEEE 802.3af / at
UTP Cat 5 or above
100 meters max.
Dimensions: 23 x 70.1 x 22 mm | Operating temperature: -10 ~ 60 C
weight: 20g

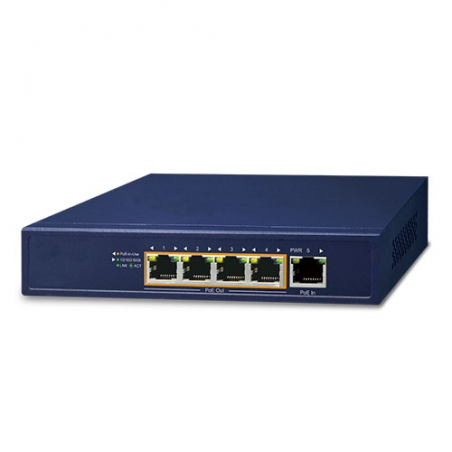

10/100/1000Mbit network extender / PoE splitter
1 x PoE input (PD) PoE++ 95W
4 x PoE outputs (PSE) PoE+ 32W
Up to 32W per PoE port, 65W total power budget (see specifications)
Extend the network cable over the maximum 100 meters for PoE solutions
Extenders are powered by PoE and pass PoE on to the next extender
Dimensions: 168 x 93 x 32 mm, Weight: 403g

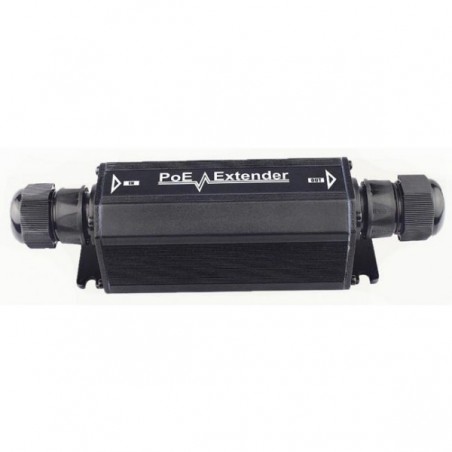

For harsh industrial and outdoor environments.
Voltage over Ethernet - PoE - no external voltage source
Extend a PoE voltage and data signal up to 100m
PoE output power: up to 22Watt
Over a single CAT 6 cable (STP cables are recommended).
Cascade: Maximum 4 ETH-BOOST-POE-1G-U units in extension

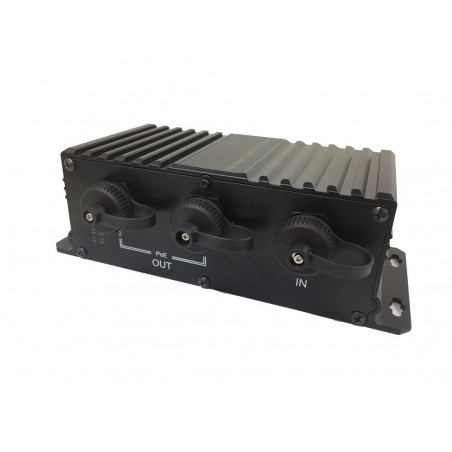

Extends the distance up to 500m
IP66

95W input
2 x 33W output
2 x RJ45 Gigabit ethernet (10/100/1000)
10K Jumb frames
1M Packet Buffer
8K MAC address table
Surge protection
Metal cabinet & nbsp; with IP67 density
9% - 95% humidity
-40°C ~ 75°C working temperature
With wall mount

10/100 / 1000Mbit PoE Network Extender
Extend the network cable with PoE over the magic 100 meters
4 pieces. Extenders provide a maximum distance of 500 meters
Extenders are powered from PoE and pass PoE on to the next Extender
Dimensions: 94 x 70 x 26 mm

PoE In: Max 30.8 Watts

PoE Out: Max 26 Watts
Weight: 189g
