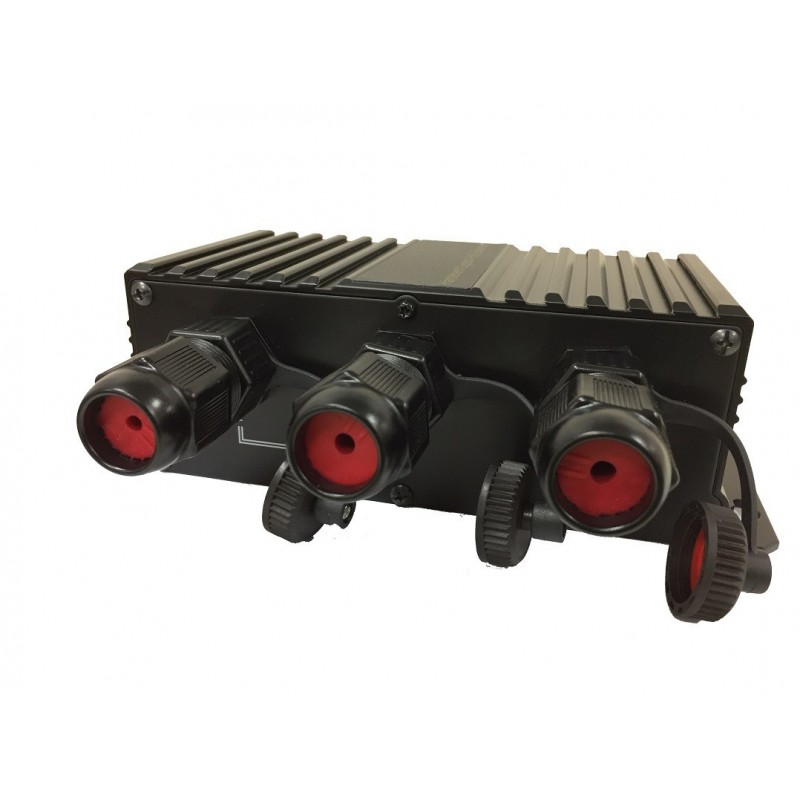

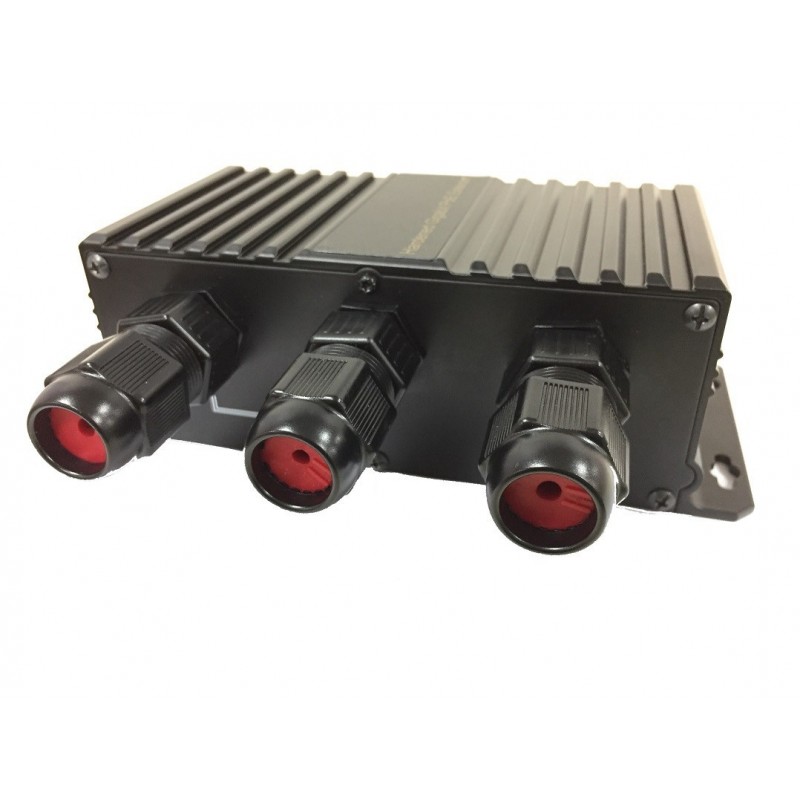

95W input
2 x 33W output
2 x RJ45 Gigabit ethernet (10/100/1000)
10K Jumb frames
1M Packet Buffer
8K MAC address table
Surge protection
Metal cabinet & nbsp; with IP67 density
9% - 95% humidity
-40°C ~ 75°C working temperature
With wall mount
ETH-POE95W kan med sin IP67 tæthed klare de fleste miljøer uden problemer, og kan sættes i kaskade med op til fire enheder, op til 500 meter.
Power over Ethernet - No Additional Power Source Required
Extend a POE signal max. 100m over a single CAT cable (cat 5 or higher)
Gigabit PoE and Data Extender / splitter
1 x RJ45 data + PoE + input
2 x RJ45 data + PoE + outputs
Standard: IEEE 802.3af and 802.3at
From Injector to Extender up to 100 meters
From Extender out to PD devices up to 100 meters
Wall mounting
Plug & Play
Temperature range: 0- + 50 ° C
Dimensions: 140 x 77 x 28 mm
Weight: 234g
PoE++ splitter - separate DC and Data
Data without PoE to equipment
DC voltage output to non-PoE device
Max. 70 Watt
Data is 10/100/1000Mbit/s
PoE 802.3at/bt
End-span + Mid-span
End-span or Mid-span
2 x RJ45 interfaces
1 x RJ45 port Data + Power input
1 x RJ45 port Data output
2 x DC output (4-pin terminal block)
DC output 12VDC or 24VDC w/DIP switch
Size: 135 x 88 x 32 mm
DIN-mount
Weight: 445g
Strømforsyning af Access Point eller webkamera via Ethernetkablet.
