Splitter

Strømforsyning af Access Point eller webkamera via Ethernetkablet.

IP67 and IK10 Gbit PoE injector for outdoor mounting
PoE++ (60W) injector for PoE equipment
1 x RJ45 port for PoE++ out Data+PoE
1 x RJ45 port Data in
1 x Phoenix connector for the input voltage
DC24V 72W input
DC36V 71W input
DC54V 66W input
PoE standard: IEEE 802.3at/bt (PoE++)
PoE out Mid-span / End-span
Operating temperature: -40 - +75°C
Wall bracket
Dimensions: 170 x 73 x 44 mm
Weight: 425

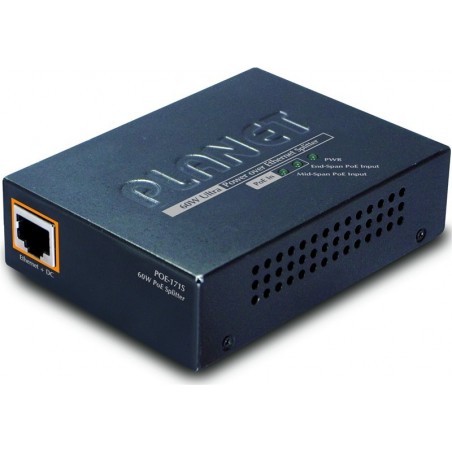

Gigabit PoE splitter for indoor installation

PoE++ (60W) splitter with optional DC output for non-PoE equipment

DC output: 12VDC/5A or 19VDC/3.2A or 24VDC/2.5A

1 x RJ45 port for PoE++ in from switch or PoE Injector

1 x RJ45 port (data) for non-PoE equipment

1 x DC Jack connector (5.5/2.5mm) for equipment

PoE standard: IEEE 802.3at/bt (PoE++)

IEEE 802.3at (PoE+ Mid-span)

IEEE 802-3bt (PoE++ PoH HDBaseT) - type 4

Operating temperature: 0 - +50°C

Wall bracket

Additional DIN brackets

Dimensions: 94 x 70 x 39 mm

Weight: 265g

PoE++ splitter - separate DC and Data
Data without PoE to equipment
DC voltage output to non-PoE device
Max. 70 Watt
Data is 10/100/1000Mbit/s
PoE 802.3at/bt
End-span + Mid-span
End-span or Mid-span
2  x RJ45 interfaces
1 x RJ45 port Data + Power input
1 x RJ45 port Data output
2 x DC output (4-pin terminal block)
DC output 12VDC or 24VDC w/DIP switch
Size: 135 x 88 x 32 mm
DIN-mount
Weight: 445g

Gigabit PoE and data Extender PoE splitter
1 x RJ45 Data + PoE ++ input
2 x RJ45 Data + PoE + outputs
Standard: IEEE 802.3bt and 802.3at
from injector to Extender up to 100 meters
from Extender to PD Devices Up to 100 meters
IP67 Aluminum Molded cabinet
Temperature range: -40 - + 75 ° C
Plug Play
Wall fittings
Size: 170 X 44 x 73 mm with cable gland

Gigabit PoE and Data Extender / splitter
1 x RJ45 data + PoE + input
2 x RJ45 data + PoE + outputs
Standard: IEEE 802.3af and 802.3at
From Injector to Extender up to 100 meters
From Extender out to PD devices up to 100 meters
Wall mounting
Plug & Play
Temperature range: 0- + 50 ° C
Dimensions: 140 x 77 x 28 mm
Weight: 234g

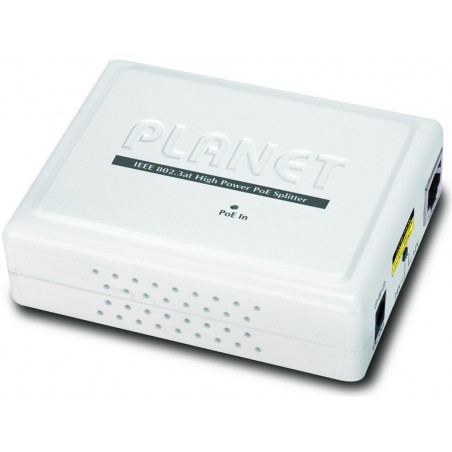

Splitter for PoE via Ethernet cable
LAN with PoE in, gives LAN without PoE out
12 VDC 2A or 24 VDC 1A next to other equipment

PoE splitter with voltage selector for 5, 9.12.18 Volts
Up to max. 30W
IEEE 602.3af/at(POE) IEEE 802.3 (Ethernet)
IEEE 802.3U, IEEE 802.3ab (Gigabit Ethernet)
1 x 10/100/1000 Mbit RJ45 PoE port (data + power input)
1 x 10/100/1000 Mbit RJ45 LAN port (data only)
1 x DC plug 5.5 / 2.1 mm - Output voltage (DC out)
Cat. 5E, 6 UTP
DC voltage from PoE switch or Injector 36 to 57 VDC
2 x RJ45 Note PoE does not go back to the RJ45 output - only data!
ROHS, CE, FCC (FCC Part15, Class B)

10/100/1000Mbit network extender / PoE splitter
1 x PoE input (PD) PoE++ 95W
4 x PoE outputs (PSE) PoE+ 32W
Up to 32W per PoE port, 65W total power budget (see specifications)
Extend the network cable over the maximum 100 meters for PoE solutions
Extenders are powered by PoE and pass PoE on to the next extender
Dimensions: 168 x 93 x 32 mm, Weight: 403g

Power over Ethernet - No Additional Power Source Required
Extend a POE signal max. 100m over a single CAT cable (cat 5 or higher)

IEEE 802.3at / of PoE standard compliant
Compatible with all IEEE 802.3at/af PoE devices
56VDC 50pwatt PoE power
Splits 56V DC power over RJ-45 to 12VDC or 19VDC or 24VDC
External power supply up to 100 meters

PoE adapter
DC injector / splitter cable
Supports 5/12/24 / 48V
Range: Up to 40m
Dimensions DC plug: 5.5 / 2.1mm
Length cable : 15cm
Set of 2 pcs. cables - injector and splitter

95W input
2 x 33W output
2 x RJ45 Gigabit ethernet (10/100/1000)
10K Jumb frames
1M Packet Buffer
8K MAC address table
Surge protection
Metal cabinet & nbsp; with IP67 density
9% - 95% humidity
-40°C ~ 75°C working temperature
With wall mount

Quick and Easy PoE tester
IEEE 802.3af / at
UTP Cat 5 or above
100 meters max.
Dimensions: 23 x 70.1 x 22 mm | Operating temperature: -10 ~ 60 C
weight: 20g
