Smart I/O modules - Web-based - WISE

WISE (Web Inside, Smart Engine) is a product line developed by ICP DAS. It has built-in pre-programmed controller with selectable logic functions. WISE offers a user-friendly and intuitive HMI interface that allows the user to implement logical functions without having programming knowledge.

Smart I/O modules - Web-based - WISE

There are 8 products.

Showing 1-8 of 8 item(s)

Active filters

L-con controller with 10 x...

L-con controller with 10 x analog input and 6 x digital output. Also for thermocoupler sensors, PoE

Intelligent Controller with Web Server
Logical functions, such as: IF-THEN-ELSE
No programming. Just select, click and finish
Supporter: I/O module, counter, hour, e-mail
Modbus / TCP protocol for SCADA software Seamless integration
IEEE 802.3af compatible power over Ethernet ( Poe)
1 x RJ45 - 100Mbit Ethernet
7 x Analog input: 0 - +/-2.5V, 0 - 20mA (ext. Resistors)
A/I Resolution: 16bit
10 Samples per Second
A/I Also to Thermocouller: J, K, T, E, R, S, B, B, C, L, M, LDIN43710
6 x Digital Output: 0 - + 50VDC / 700mA Open Collector
Supply voltage: POE or 12 - 48VDC / 4.5Watt

Price 3,317.00 DKK
Product code: L-CON10TC6O
On the way in
  • L-CON modul med digitale...

    L-CON modul med digitale udgange

    Intelligent Controller with Webserver
    Logical functions such as: IF-THEN-ELSE
    No programming. Just pick, click and finished
    Supports: I/O module, counter, timer, email
    Modbus/TCP protocol to SCADA software seamless integration
    IEEE 802.3af compliant Power over Ethernet ( PoE)
    1 x RJ45 - 10 / 100Mbit Ethernet
    8 x Power relay output, COM NO
    Relay switch: 30VDC, 250VAC 5A, only resistive load
    Supply voltage: PoE or 12 - 48VDC / 5.5Watt

    Price 2,555.00 DKK
    Product code: L-CON8R
    Physically in stock
  • L-CON modul med digitale...

    L-CON modul med digitale ind- og udgange

    1 x RJ45 - 10/100 Base-TX Ethernet
    Can be powered from a PoE
    Integrated Web Server Setup
    Logical functions with IF-THEN-ELSE
    Rules, I / O, CGI counter, Timer, etc.
    Email setup via Web browser
    Modbus / TCP Protocol to 6 x Digital input (Wet Contact - external voltage for High)
    Digital input has 16 bits counter
    6 x Relay Power Output: 5A at 30VDC / 250VAC
    Power over Ethernet (PoE) or an external DC power supply
    Supply voltage: PoE or 12 - 48VDC / 5Watt
    temperature range -25 ° C ~ + 75 DEG C

    Price 2,323.00 DKK
    Product code: L-CON6I6R
    Physically in stock
  • L-CON Controller with 7 x...

    L-CON Controller with 7 x Temperature sensor input, 2/3 wire Pt100, Pt1000, Ni120, CU100, Cu1000, 1 x RJ45 Ethernet, PoE

    Intelligent Controller with Webserver
    Logical functions such as: IF-THEN-ELSE
    No programming. Just pick, click and finished
    Supports: I / O module, counter, timer, email
    Modbus / TCP protocol to SCADA software seamless integration
    IEEE 802.3af compliant Power over Ethernet ( PoE)
    1 x RJ45 - 10 / 100Mbit Ethernet
    7 x Temperature sensor inputs (differential)
    2/3-wire Pt100, Pt1000, Ni120, CU100, Cu1000
    A/I resolution: 16bit
    12 samples per second (Total)
    Individual sensor configuration
    Power supply: PoE or 12 - 48VDC / 4.5Watt

    Price 3,345.00 DKK
    Product code: L-CON7RTD
    Physically in stock
  • L-CON Controller with 16 x...

    L-CON Controller with 16 x Digital input, Wet 0 - + 50VDC, 1 x RJ45 Ethernet, Modbus/TCP, PoE

    Intelligent Controller with Webserver
    Logical functions such as: IF-THEN-ELSE
    No programming. Just pick, click and finished
    Supports: I / O module, counter, timer, email
    Modbus / TCP protocol to SCADA software seamless integration
    IEEE 802.3af compliant Power over Ethernet ( PoE)
    1 x RJ45 - 10 / 100Mbit Ethernet
    16 x Digital input: Wet: 0 - + 50VDC
    D / I count: 16bit, 50Hz
    Power supply: PoE or 12 - 48VDC / 4.5 Watt

    Price 2,323.00 DKK
    Product code: L-CON16DI
    Physically in stock

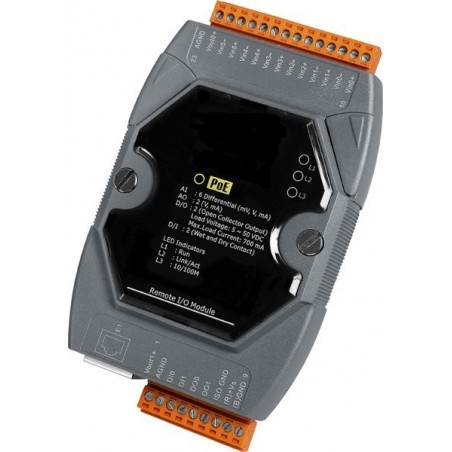

  • L-CON controller with 6 x...

    L-CON controller with 6 x Analog Input, 2 x Analog Output, 2 x Digital Input, 2 x Digital Output, 1 x RJ45, PoE

    Intelligent Controller with Webserver
    Logical functions such as: IF-THEN-ELSE
    No programming. Just pick, click and finished
    Supports: I / O module, counter, timer, email
    Modbus / TCP protocol to SCADA software seamless integration
    IEEE 802.3af compliant Power over Ethernet ( PoE)
    1 x RJ45 - 10 / 100Mbit Ethernet to 6 x Analog input: 0 - +/- 10V, 0 - 20mA
    A / L solution: 16bit
    2 x Analog output: 0 - +/- 10V, 0 - 20mA
    A / O resolution: 12bit
    2 x Digital outputs: 0 - + 50VDC / 700mA Open Collector
    2 x Digital input: Dry / Wet: 0 - + 30VDC < br> D / I count: 16bit, 50Hz
    Power supply: PoE or 12 - 48VDC / 4.5Watt

    Price 3,414.00 DKK
    Product code: L-CON12W
    On the way in
  • I / O module with 12 DI and...

    I / O module with 12 DI and 8 DO Web-based. Moxa ioLogik E2210

    MOXA ioLogik E2210
    Ethernet Micro RTU Controller
    1 x 10/100 Mbps, RJ45
    1.5 KV magnetic isolation
    Modbus / TCP, TCP / IP, UDP, DHCP, Bootp, SNMP ( MIB for I / O and Network), HTTP, CGI, SNTP
    RS-485-2w Data +, Data-, GND
    15 KV ESD
    12 x digital input - source type
    Digital output: 0 to GND
    Logic 1 open
    Wet Contact: Logic 0 0:02 3 VDC
    Logic 1 10:02 30 VDC (DI COM two DI)
    8 x Open Collector sink type: 36 VDC / 200 mA
    Power supply: 12-36 VDC

    Price 3,260.00 DKK
    Product code: ETHIO12I8O-M
    On the way in
  • MQTT 16 x Digital input...

    MQTT 16 x Digital input module. TCP and MQTT protocol, 2 x LAN ports Daisy chain. Dry contact input. 12 - 48VDC

    Built-in web server
    Web HMI
    Supports Modbus TCP and MQTT protocols
    2-port Ethernet switch (LAN Bypass) for Daisy-Chain Wiring
    Double watchdog
    Digital input: 16 channels
    Dry contact input
    Input to Gnd = High (ON)
    Input open = Low (OFF)
    Supply voltage: 12 - 48VDC
    Temperature: -25 - +75°C
    Dimensions: 120 x 97 x 42

    Price 2,443.00 DKK
    Product code: MQ-I16D-2L
    On the way in
