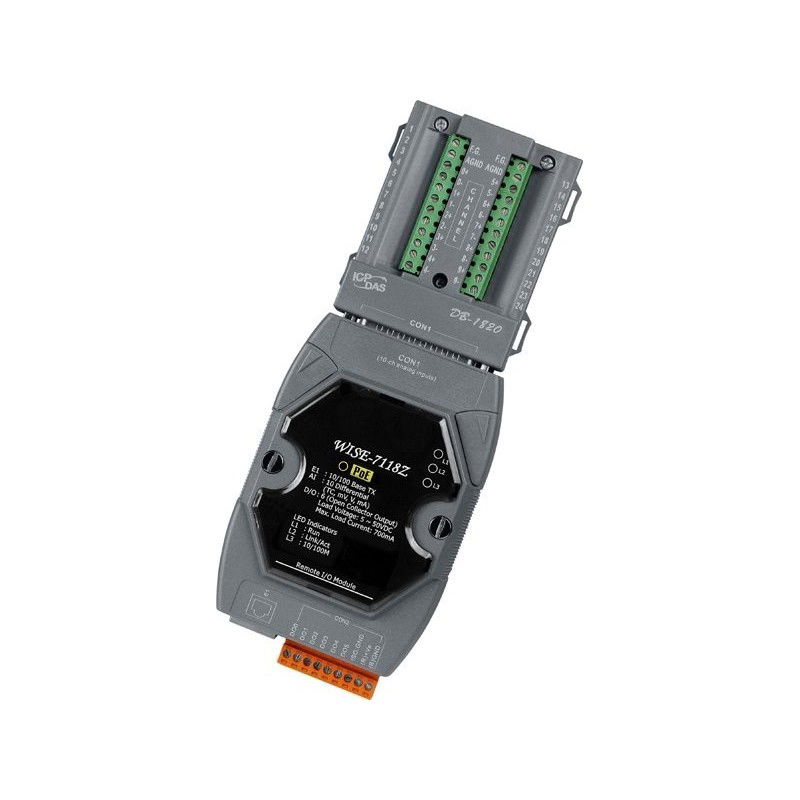

L-con controller with 10 x analog input and 6 x digital output. Also for thermocoupler sensors, PoE

Intelligent Controller with Web Server
Logical functions, such as: IF-THEN-ELSE
No programming. Just select, click and finish
Supporter: I/O module, counter, hour, e-mail
Modbus / TCP protocol for SCADA software Seamless integration
IEEE 802.3af compatible power over Ethernet ( Poe)
1 x RJ45 - 100Mbit Ethernet
7 x Analog input: 0 - +/-2.5V, 0 - 20mA (ext. Resistors)
A/I Resolution: 16bit
10 Samples per Second
A/I Also to Thermocouller: J, K, T, E, R, S, B, B, C, L, M, LDIN43710
6 x Digital Output: 0 - + 50VDC / 700mA Open Collector
Supply voltage: POE or 12 - 48VDC / 4.5Watt

L-CON10TC6O
3,317.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

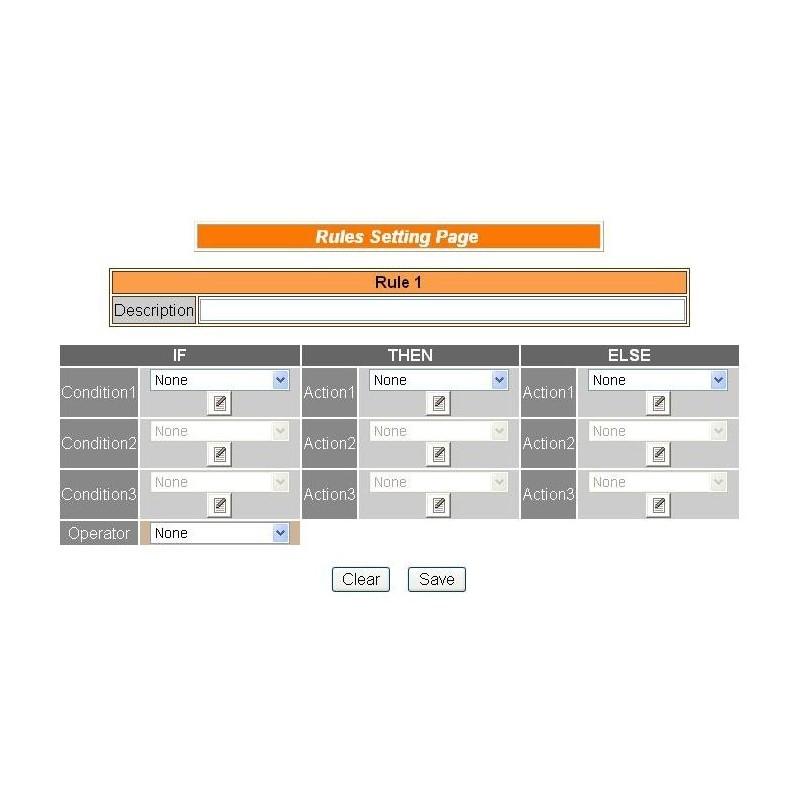

WISE (Web Inside, Smart Engine) is a product line developed by ICP DAS that functions as control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With its powerful and user-friendly features minimizes the learning curve, shorten time to market and reduces the effort and costs dramatically for system development.

L-CON10TC6O follows IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) specification . It allows to receive power from the PoE-enabled network via Ethernet pairs (Category 5 Ethernet cable). This feature provides greater flexibility and higher efficiency, which simplifies system design, saves space, reduces cables and eliminates the need for dedicated electrical outlets. Meanwhile, L-CON10TC6O in case of an environment without PoE still be able to receive power from the auxiliary power sources like AC adapters or battery, etc.

This module L-CON10TC6O supports Modbus / TCP protocol to make seamless integration with SCADA software available. 6 has the power relay outputs and 6 digital wet isolated contact inputs. Each power relay contact support classification as 5 A @ 250 VAC or 5 A @ 30 VDC, and each digital input channel supports counter input.

Dimensioner
123 x 72 x 35 mm
Driftstemperatur
- 25°C – 75°C
Forsyning
12 - 48 VDC via klemrække eller via PoE
Indgang
10 stk. differentialindgange til termoelementer Opløsning 16 bit nøjagtighed ± 0,1 %, drift ± 25 ppm/°C Termoelementer J, K, T, E, R, S, B, N, C, L, M, LDIN43710 Leveres med terminalkort Status for afbrudt termoelement
Isolation
Optisk 2500 VRMS til analoge og digitale ind- og udgange i forhold til strømforsyningen. Magnetisk 1500 V fra netværksinterface til strømforsyningen
Netværk
10/100 Mbit m/RJ45 hunstik
Protokol
Understøtter Modbus/TCP
Udgange
6 stk. open collector 5 – 50 V 700mA

4 other products in the same category:

L-CON controller with 6 x...

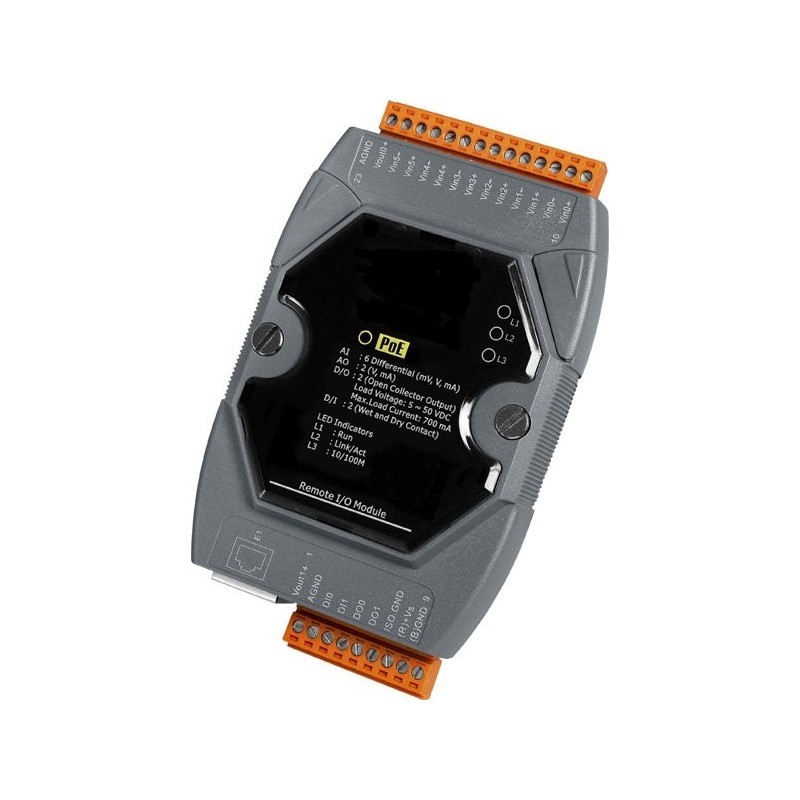

L-CON controller with 6 x Analog Input, 2 x Analog Output, 2 x Digital Input, 2 x Digital Output, 1 x RJ45, PoE

Intelligent Controller with Webserver
Logical functions such as: IF-THEN-ELSE
No programming. Just pick, click and finished
Supports: I / O module, counter, timer, email
Modbus / TCP protocol to SCADA software seamless integration
IEEE 802.3af compliant Power over Ethernet ( PoE)
1 x RJ45 - 10 / 100Mbit Ethernet to 6 x Analog input: 0 - +/- 10V, 0 - 20mA
A / L solution: 16bit
2 x Analog output: 0 - +/- 10V, 0 - 20mA
A / O resolution: 12bit
2 x Digital outputs: 0 - + 50VDC / 700mA Open Collector
2 x Digital input: Dry / Wet: 0 - + 30VDC < br> D / I count: 16bit, 50Hz
Power supply: PoE or 12 - 48VDC / 4.5Watt

Price 3,414.00 DKK
Product code: L-CON12W
On the way in
Quick view
L-CON Controller with 16 x...

L-CON Controller with 16 x Digital input, Wet 0 - + 50VDC, 1 x RJ45 Ethernet, Modbus/TCP, PoE

Intelligent Controller with Webserver
Logical functions such as: IF-THEN-ELSE
No programming. Just pick, click and finished
Supports: I / O module, counter, timer, email
Modbus / TCP protocol to SCADA software seamless integration
IEEE 802.3af compliant Power over Ethernet ( PoE)
1 x RJ45 - 10 / 100Mbit Ethernet
16 x Digital input: Wet: 0 - + 50VDC
D / I count: 16bit, 50Hz
Power supply: PoE or 12 - 48VDC / 4.5 Watt

Price 2,323.00 DKK
Product code: L-CON16DI
Physically in stock
Quick view
L-CON modul med digitale...

L-CON modul med digitale udgange

Intelligent Controller with Webserver
Logical functions such as: IF-THEN-ELSE
No programming. Just pick, click and finished
Supports: I/O module, counter, timer, email
Modbus/TCP protocol to SCADA software seamless integration
IEEE 802.3af compliant Power over Ethernet ( PoE)
1 x RJ45 - 10 / 100Mbit Ethernet
8 x Power relay output, COM NO
Relay switch: 30VDC, 250VAC 5A, only resistive load
Supply voltage: PoE or 12 - 48VDC / 5.5Watt

Price 2,555.00 DKK
Product code: L-CON8R
Physically in stock
Quick view
MQTT 16 x Digital input...

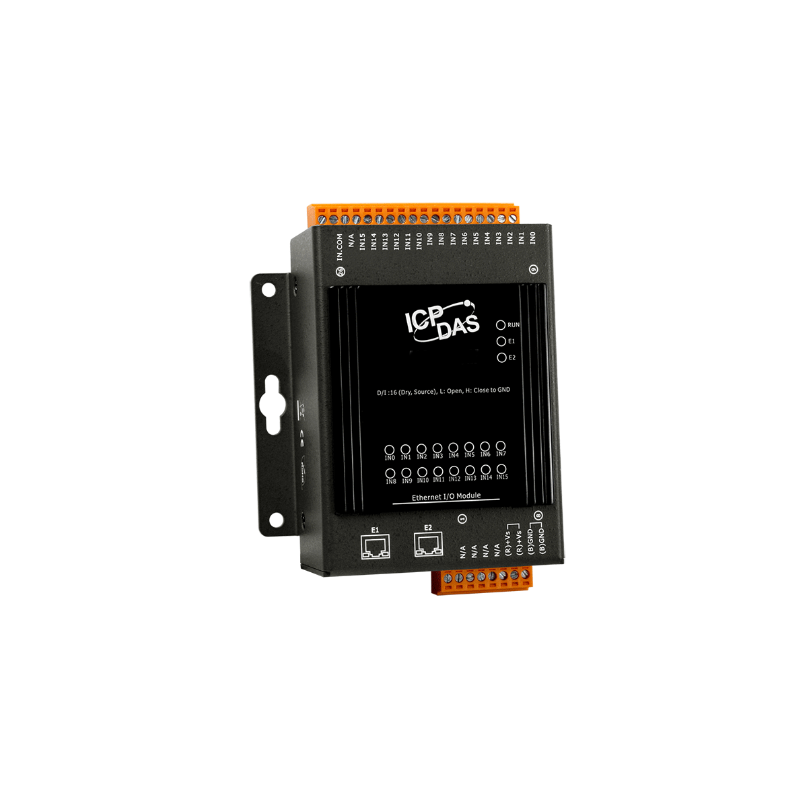

MQTT 16 x Digital input module. TCP and MQTT protocol, 2 x LAN ports Daisy chain. Dry contact input. 12 - 48VDC
