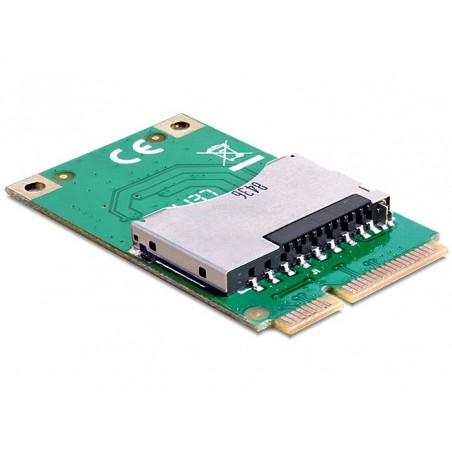

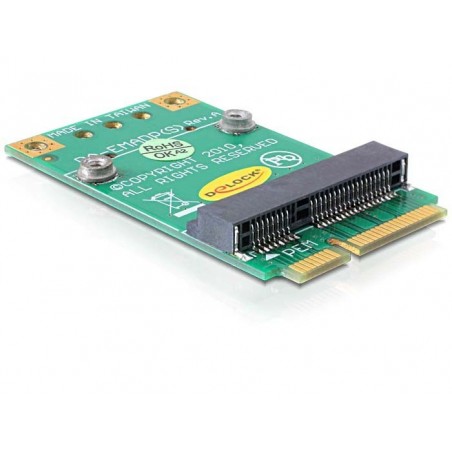

Mini PCI Express (mPCIe) modules are used to expand the functionality of industrial PCs, embedded systems and compact PC solutions where space is limited. In this category you will find Mini PCI Express modules for serial ports (RS232), parallel port, CAN bus as well as various converters and adapters – for example Mini PCIe to SD card, or full-/half-length Mini PCIe converters.

With a Mini PCI Express module, you can easily add extra interfaces to existing systems without changing the entire platform. This makes mPCIe cards ideal for industrial machines, automation systems, transport/fleet solutions, test and measurement equipment and custom-built embedded PCs, where a mPCIe slot is often already integrated on the motherboard.

Mini PCIe and M.2 – form factors and key types

In many newer systems, Mini PCIe has been replaced by M.2 sockets. It is therefore important to know the mechanical dimensions and key types when using adapters between Mini PCIe and M.2:

• M.2 2242 / 2260 / 2280
  The four digits indicate width and length in millimetres:

  • 2242 = 22 mm wide, 42 mm long

  • 2260 = 22 mm wide, 60 mm long

  • 2280 = 22 mm wide, 80 mm long

• B, M and B+M key (key notches)
  M.2 modules have one or two notches (key slots) that determine which sockets they can be used in:

  • B key: Typically used for SATA, USB and some PCIe lanes

  • M key: Typically used for NVMe/PCIe x4 solutions

  • B+M key: Combined key so the module fits into both B-keyed and M-keyed sockets (with a limitation on the number of PCIe lanes)

When migrating from Mini PCI Express to M.2, adapter boards are often used that take both the mechanical length (2242/2260/2280) and the correct B, M or B+M key into account. In this way, existing Mini PCIe solutions can still be used in new system designs with an M.2 slot.

Typical applications for Mini PCI Express modules

• Extra serial ports (RS232/RS422/RS485) for communication with PLCs, machine controllers and other legacy equipment

• CAN bus modules for automation and vehicle applications

• SD and storage adapters for data acquisition and logging

• Converters between Mini PCIe, PCIe, M.2 and other form factors

We supplies Mini PCI Express modules and related M.2 solutions for professional and industrial applications. Contact our technical sales team if you have any questions about choosing a Mini PCIe or M.2 module, or if you need a specific adapter for your solution.
