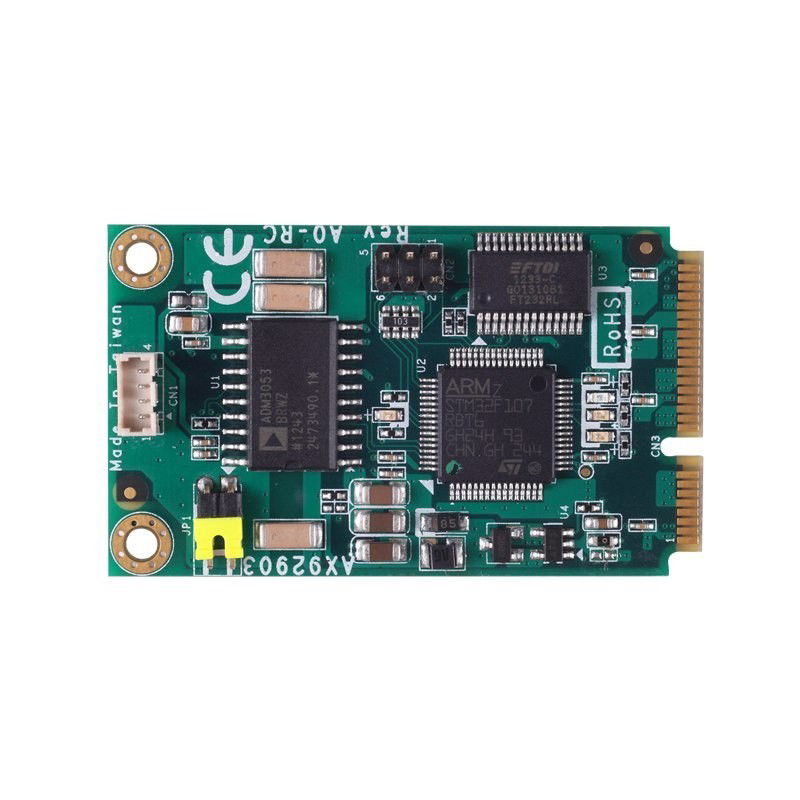

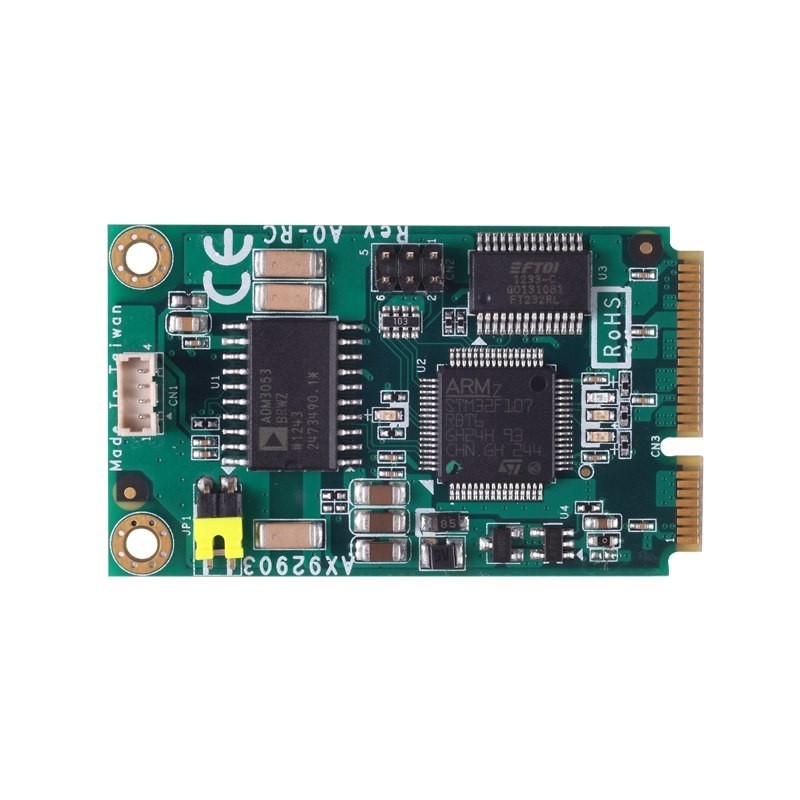

PCI Express Mini Module with CAN Bus
One CAN bus interface
Supports both CAN 2.0A and CAN 2.0B
Up to 1Mbps CAN transmission speed
2KV isolation
Drivers support Windows® 7/ 7 x64/ 8/ 8 x64/ 8.1/ 8.1 x64
Dimensions: 51 x 30 mm

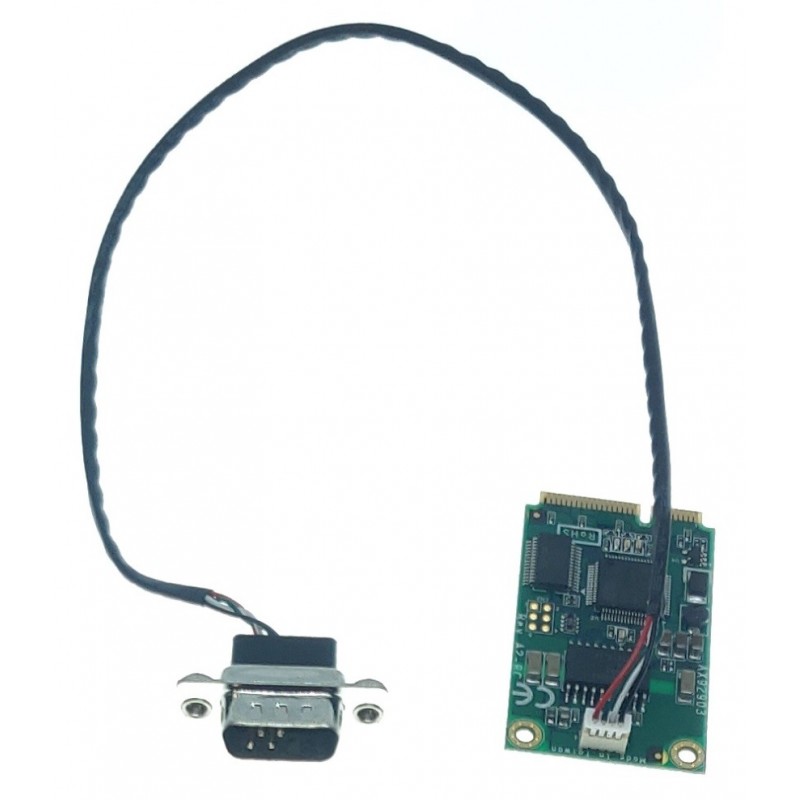

Cable included
Call +45 56 66 20 20 for price
Quantity
Physically in stock
close
Specifications
| Controller | STM32107 |
|---|---|
| Isolation | 2KV |
| LED | Power, CAN TX/RX, CAN error, firmware update |
| Software | Protocol: CAN 2.0A/2.0B. Transmission Speed: Up to 1Mbps. Receive Buffer: 1000 data frames. NVRAM: 64Kbyte (for user-defined). Filter ID supported. Time Stamp: Up to 1us. RTR supported. OS Driver Support: Windows® 7/ 7 x64/ 8/ 8 x64/ 8.1/ 8.1 x64. |
| Transceiver | ADM3053 |
| CAN Bus Interface | One channel |
| Operating Temperature | -20°C~70°C |
| CAN Bus Connection | 4-pin connector |
| Terminator Resistor | Onboard 120Ω |
| Support USB 2.0 to CAN 2.0A and CAN 2.0B | USB 2.0 full speed |
| Form Factor | Mini PCI-Express |
The CAN (Controller Area Network) is a serial bus system and is usually used in structuring
intelligent industrial device networks and building smart automatic control systems. User
is easily capable of integrating computer with PCI-Express Mini Card socket to CAN network.
It comes with CAN monitor tool that displays the CAN received message in decimal
or hexadecimal mode and also shows the time stamp of each received message. Both of the
GUI management program and programming guide are ready for use. The CAN host, monitor
or HMI, can access and control CAN devices through AX92903.
