Suitable for M.2 slot type 2242/2260/2280, adjustable with Key-M or Key-B based on PCI Express communication.

Expands 2 independent RS-232 serial ports with communication speeds of up to 460.8 Kbps.

Designed to meet PCI Express Base Specification Revision 1.1.

Automatic flow control on the chip guarantees no data loss.

Built-in 15KV ESD protection for all serial signals meets IEC-61000-4-2 standard.

Plug-n-Play, I/O address and IRQ assigned by BIOS.

Certified by CE, FCC, VCCI, BSMI, RoHS and Microsoft WHQL approval.

M.2 (2242/2260/2280 type, B+M)

With 90˚ connector in relation to the PCB

Suitable for M.2 slot Type 2242/2260/2280 adjustable with Key-M or Key-B based on PCI Express communication.

Expands 2 independent RS-232 serial ports with communication speeds up to 460.8Kbps.

Designed to meet PCI Express Base Specification Revision 1.1.

On-chip hardware auto flow control to guarantee no data loss.

Built-in 15KV ESD protection for all serial signals meets IEC-61000-4-2 standard.

Plug-n-Play, I/O address and IRQ assigned by BIOS.

Certified by CE, FCC, VCCI, BSMI, RoHS, and Microsoft WHQL approval.

M.2 (2242/2260/2280 Type, B+M)

With 180˚ connector

Serial Port Converter with PoE

2x 3-wire RS-232 Port

Supports Baud Rate Up to 115200 bps

Parity Options: None, Odd, Even, Mark, Space

Data Bit Configurations: 5, 6, 7, 8

Stop Bits Options: 1, 2

Operating Temperature: -25 ~ +75 °C

Humidity: 10 ~ 90% RH, non-condensing

32-bit ARM CPU

Dimensions: 52 mm x 27 mm x 95 mm

Power input: 12-48VDC

Power Consumption: 0.07 A @ 24 VDC

Plastic Casing with DIN-Rail Mounting

Adds a high speed RS422 or RS485 serial port by connecting to a USB port
USB Type-C cable, 0,25m
Powered by USB port, no external power adapter required
LEDs indicate TxD and RxD for easy port monitoring and diagnosis
Installs as a standard Windows COM port
Automatic transmit and receive control for 2-wire RS485 half-duplex mode
Serial port protected with surge protection of 15kV
Non-standard baudrates supported
Easy plug and play installation and RS-422/RS485 device connection
High speed serial port with baud rate up to 3Mbps
Provides 15KV ESD protection and 600W surge protection for all serial signals
Supports Windows XP to 11, Server 2000 to Server 2022 (WHQL certified)
Supports Linux Kernel 3.0 and above
Supports Mac OS X 10.3 and above, driver signed by Apple

High speed RS-232 serial port by connecting to a USB Type-C port
USB Type-C cable 0,25m
Powered by USB port, no external power adapter required
LEDs indicate TxD and RxD for easy port monitoring and diagnosis
Installs as a standard Windows COM port
Full RS-232 modem control signals and hardware/software flow control
Serial port protected with 15KV ESD protection
Non-standard baudrates supported
Easy plug and play installation and RS-232 device connection
High speed serial port with baud rate up to 921.6kbps
Supports Windows XP to 11, Server 2000 to Server 2022 (WHQL certified)
Supports Linux Kernel 3.0 and above
Supports Mac OS X 10.3 and above, driver signed by Apple

USB-C to Straight-Through RS232 serial adapter
With DB9 male
With 9 x data monitoring LEDs (TX, RX, PWR)
COM port assignments are maintained across reboots
Max Baud Rate: 921.6 Kbps | 1, 1.5, 2 stop bits
Odd, Even, Field, Space, No Parity Mode
Hardware Flow Control (CTS/RTS and/or DSR/DTR)
Software Flow Control (XON/XOFF) | Chipset: PL2303-GC
Compatible with Windows®, Mac OS and Linux

USB A to Straight-Through RS232 serial adapter
With DB9 male
With 9 x data monitoring LEDs (TX, RX, PWR)
COM port assignments are maintained across reboots
Max Baud Rate: 921.6 Kbps | 1, 1.5, 2 stop bits
Odd, Even, Field, Space, No Parity Mode
Hardware Flow Control (CTS/RTS and/or DSR/DTR)
Software Flow Control (XON/XOFF) | Chipset: PL2303-GC
Compatible with Windows®, Mac OS and Linux

USB A to Straight-Through RS232 serial adapter
With DB9 male
With 3 x data monitoring LEDs (TX, RX, PWR)
COM port assignments are maintained across reboots
Max Baud Rate: 921.6 Kbps | 1, 1.5, 2 stop bits
Odd, Even, Field, Space, No Parity Mode
Hardware Flow Control (CTS/RTS and/or DSR/DTR)
Software Flow Control (XON/XOFF) | Chipset: PL2303-GC
Compatible with Windows®, Mac OS and Linux

USB-C to Straight-Through RS232 serial adapter
With DB9 male
With 3 x data monitoring LEDs (TX, RX, PWR)
COM port assignments are maintained across reboots
Max Baud Rate: 921.6 Kbps | 1, 1.5, 2 stop bits
Odd, Even, Field, Space, No Parity Mode
Hardware Flow Control (CTS/RTS and/or DSR/DTR)
Software Flow Control (XON/XOFF) | Chipset: PL2303-GC
Compatible with Windows®, Mac OS and Linux

Easy to use
DIP switch for disconnecting and connecting signal (easy to connect external cables/props)
Branch too high signal
Red for low signal
RS232 8 signals DCD, RXD, TXD,, DTR, DSR, RTS, CTS, RI.

Break out board with DB15 female connector.
1 x DB15 female (2 rows)
2 x 8 pole screw terminal block
Not in the house

Single-Mode Fiber (Multi-Mode optional)
1-Channel Duplex Rs485
Point-to-Point or Daisy-Chain (M485-FIBER-SR is needed)
DC input 5V (< 3W)
Operating tempeture: -45 C~+75 C
Up to to 115.2Kbps data rate

Single-Mode Fiber (Multi-Mode optional)
1-Channel Duplex Rs485
Point-to-Point or Daisy-Chain (M485-FIBER-ST is needed)
DC input 5V (< 3W)
Operating tempeture: -45 C~+75 C
Up to to 115.2Kbps data rate

RS232 optical isolator, BR up to 57.6k
Optical isolation: 2500 constant, 7.5kV surge
DB9 male and DB9 female
Powered from RS232 control signal channels TXD, RTS, DTR
Mode: Asynchronous, Dual duplex, transparent data

1 channel software-selectable RS-232/485/422 port
Baud rate: 1200 - 230,400 / RS485 921,600
Screw terminals for Data
Screw terminals for DC supply

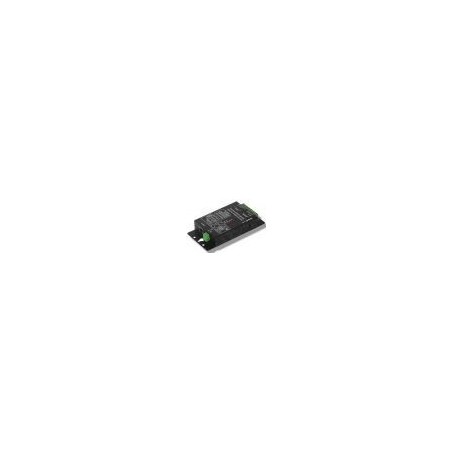

1 x 10/100 Mbps RJ45 Fast Ethernet port
Supports TCP Server/Client, UDP, Virtual COM and Tunneling modes
Modbus TCP/RTU/ASCII
Configuration via the web server side, the Telnet console and the Windows Utility
Upgradable firmware via Ethernet from a remote PC
Robust metal cladding; industrial EMC protection
Redundant dual DC inputs for non-stop operation
Optional DIN rail mounting
Supply: 9 - 30VDC or 5VDC / 9W
Dimensions: 78 x 65 x 28 mm
Temp: -40 - +70°C

PCI serial port card for legacy systems. Equipped with 128-byte UART FIFO buffer for high reliability. Ideal for older control systems, automation, and RS-232 device integration.

DB9 male connector
1200 to 230400 baud
Supply 5 to 24 volts via USB or screw terminals
Detachable WiFi antenna
USB Adapter cable included

Transparent Wireless RS232 or RS485 link with 2 pcs.
Programmable with DIP- and Rotary switches
433 MHz Radio Frequency
16 RF Channels
0dBi Omni antenna
Baud Rates from 1200 to 115200 bps
Includes a PA switch that can be used to enhance the RF power
Wireless line of sight (LOS) transmission range of up to 500 meters at an RF Baud Rate of 9600 bps
RS232 (RX/TX/GND) and RS485 (2-wire) interfaces
N81, E81, O81
DIN-Rail
Temperatures, -25 - +75°C
TX power: 10dBm to 19dBm
Supply: 10 - 30VDC / 1Watt
Dim: 107 x 83 x 33 mm

One CAN bus interface
Supports both CAN 2.0A and CAN 2.0B
Up to 1Mbps CAN transmission speed
2KV isolation
Drivers support Windows® 7/ 7 x64/ 8/ 8 x64/ 8.1/ 8.1 x64
Dimensions: 51 x 30 mm
Cable included

Wireless Com Port - Can Peer-to-Peer connection
IEEE 802.11 a/b/g/n
2.4 GHz, 5 GHz Dual Band
1 Port RS232 or RS422 or 2-wire RS485
Max.Baud Rate: 921.6 Kbps
Operating temperature: -40 - +85°C
with COM Port Re-Director, TestView
± 15KV IEC ESD protection
Supply voltage: 5 - 12VDC / 2W
infrastructure, Soft AP, Roaming
sWifi config Mobile App for Android
